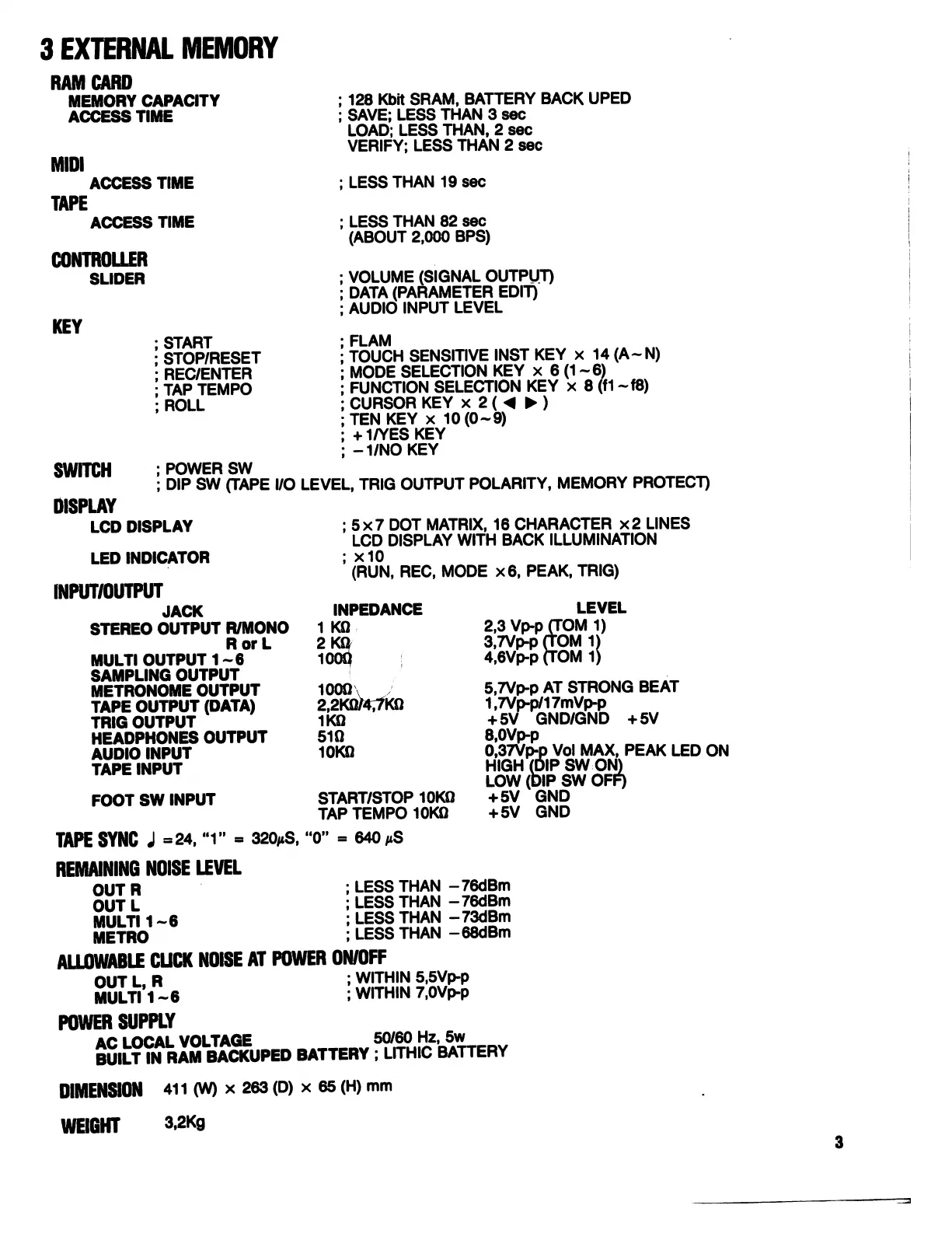

Korg ddd-1 Service Manual

3 EXTERNAL MEMORY
RAM CARD
MEMORY CAPACITY
ACCESS TIME
MIDI
TAPE
ACCESS TIME
■
ACCESS TIME
CONTROLLER
SLIDER
KEY
SWITCH
; 128 Kbit SRAM, BATTERY BACK UPED
; SAVE; LESS THAN 3 sec
LOAD; LESS THAN, 2 sec
VERIFY; LESS THAN 2 sec
; LESS THAN 19 sec
; LESS THAN 82 sec
(ABOUT 2,000 BPS)
; VOLUME (SIGNAL OUTPUT)
; DATA (PARAMETER EDIT)
; AUDIO INPUT LEVEL
START ; FLAM
STOP/RESET ; TOUCH SENSITIVE INST KEY x 14 (A- N)
: REC/ENTER ; MODE SELECTION KEY x 6 (1 -6)
: TAPTEMPO ; FUNCTION SELECTION KEY x 8 (f1 ~f8)
; ROLL ; CURSOR KEY x 2 (<4 ► )
; TEN KEY x 10(0-9)
; +1/YESKEY
; -1/NOKEY
; POWER SW
; DIP SW (TAPE I/O LEVEL, TRIG OUTPUT POLARITY, MEMORY PROTECT)
DISPLAY
LCD DISPLAY
LED INDICATOR
INPUT/OUTPUT
JACK
STEREO OUTPUT R/MONO
RorL
MULTI OUTPUT 1-6
SAMPLING OUTPUT
METRONOME OUTPUT
TAPE OUTPUT (DATA)
TRIG OUTPUT
HEADPHONES OUTPUT
AUDIO INPUT
TAPE INPUT
FOOT SW INPUT
; 5x7 DOT MATRIX, 18 CHARACTER x2 LINES
LCD DISPLAY WITH BACK ILLUMINATION
; x10
(RUN, REC, MODE x6, PEAK, TRIG)
INPEDANCE
1 K0
2KO
iooq
1000 \
2.2KQ/4.7KO
1KQ
510
10KQ
START/STOP 10KO
TAP TEMPO 10KO
0" - 640 nS
LEVEL
2,3Vp-p(TOM1)
3,7Vp-p (TOM 1)
4,6Vp-p (TOM 1)
5,7Vp-p AT STRONG BEAT
+ 5V
i;7Vp-p/17mVp-p
+ 5V GND/GND
8,0Vp-p
0,37Vp-p Vol MAX, PEAK LED ON
HIGH (DIP SW ON)
LOW (DIP SW OFF)
+ 5V GND
+ 5V GND
; LESS THAN -76dBm
; LESS THAN -76dBm
; LESS THAN -73dBm
; LESS THAN -68dBm
TAPE SYNC J=24,"1" = 320*S,"<
REMAINING NOISE LEVEL
OUTR
OUTL
MULTM-6
METRO
ALLOWABLE CLICK NOISE AT POWER ON/OFF
OUT L, R I WITHIN 5,5Vp-p
MULTI1-6 ; WITHIN 7,0Vp-p
POWER SUPPLY
AC LOCAL VOLTAGE 50/60 Hz, 5w
BUILT INRAM BACKUPED BATTERY ; LITHIC BATTERY
DIMENSION 411 (W) x 263 (D) x 65 (H) mm
WEIGHT 3,2Kg
