Korg ddd-1 Service Manual

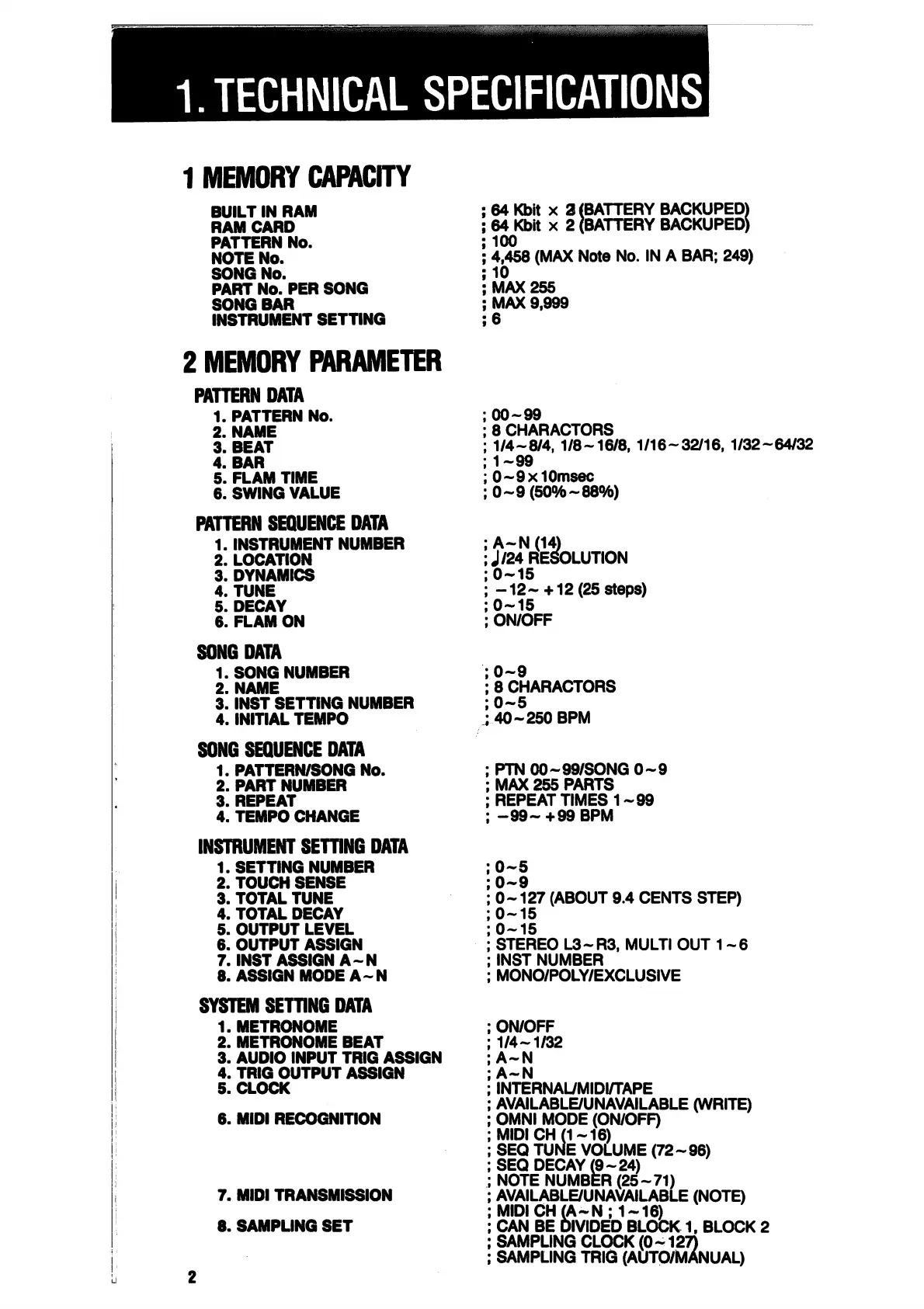

1. TECHNICAL SPECIFICATIONS
1 MEMORY CAPACITY
BUILT IN RAM
RAM CARD
PATTERN No.
NOTE No.
SONG No.
PART No. PER SONG
SONG BAR
INSTRUMENT SETTING
2 MEMORY PARAMETER
PATTERN DATA
1. PATTERN No.
2. NAME
3. BEAT
4. BAR
5. FLAM TIME
6. SWING VALUE
PATTERN SEQUENCE DATA
1. INSTRUMENT NUMBER
2. LOCATION
3. DYNAMICS
4. TUNE
5. DECAY
6. FLAM ON
SONG DATA
1. SONG NUMBER
2. NAME
3. INST SETTING NUMBER
4. INITIAL TEMPO
SONG SEQUENCE DATA
1. PATTERN/SONG No.
2. PART NUMBER
3. REPEAT
4. TEMPO CHANGE
INSTRUMENT SETTING DATA
1. SETTING NUMBER
2. TOUCH SENSE
3. TOTAL TUNE
4. TOTAL DECAY
5. OUTPUT LEVEL
6. OUTPUT ASSIGN
7. INST ASSIGN A-N
8. ASSIGN MODE A-N
SYSTEM SETTING DATA
1. METRONOME
2. METRONOME BEAT
3. AUDIO INPUT TRIG ASSIGN
4. TRIG OUTPUT ASSIGN
5. CLOCK
6. MIDI RECOGNITION
7. MIDI TRANSMISSION
8. SAMPLING SET
; 64 Kbit x a (BATTERY BACKUPED)
; 64 Kbit x 2 (BATTERY BACKUPED)
;100
; 4,458 (MAX Note No. IN A BAR; 249)
;10
; MAX 255
; MAX 9,999
;6
; 00-99
; 8 CHARACTORS
; 1/4-8/4, 1/8-16/8, 1/16-32/16, 1/32-64/32
;1~99
;0~9x 10msec
;O~9(5O°/o~88%)
; A-N (14)
;J/24 RESOLUTION
;0~15
; -12-+12 (25 steps)
;0~15
; ON/OFF
;0~9
; 8 CHARACTORS
;0~5
j 40-250 BPM
PTN 00-99/SONG 0-9
MAX 255 PARTS
REPEAT TIMES 1-99
-99- +99 BPM
;0-5
;0~9
; 0-127 (ABOUT 9.4 CENTS STEP)
;0-15
;0-15
; STEREO L3-R3, MULTI OUT 1 -6
; INST NUMBER
; MONO/POLY/EXCLUSIVE
; ON/OFF
; 1/4-1/32
;A~N
;A~N
; INTERNAL/MIDI/TAPE
; AVAILABLE/UNAVAILABLE (WRITE)
; OMNI MODE (ON/OFF)
; MIDI CH (1-16)
; SEQ TUNE VOLUME (72-96)
;SEQ DECAY (9-24)
; NOTE NUMBER (25-71)
; AVAILABLE/UNAVAILABLE (NOTE)
; MIDI CH(A-N; 1-16)
; CAN BE DIVIDED BLOCK 1. BLOCK 2
; SAMPUNG CLOCK (0-127)
; SAMPLING TRIG (AUTO/MANUAL)
