Korg DS-8 Service Manual

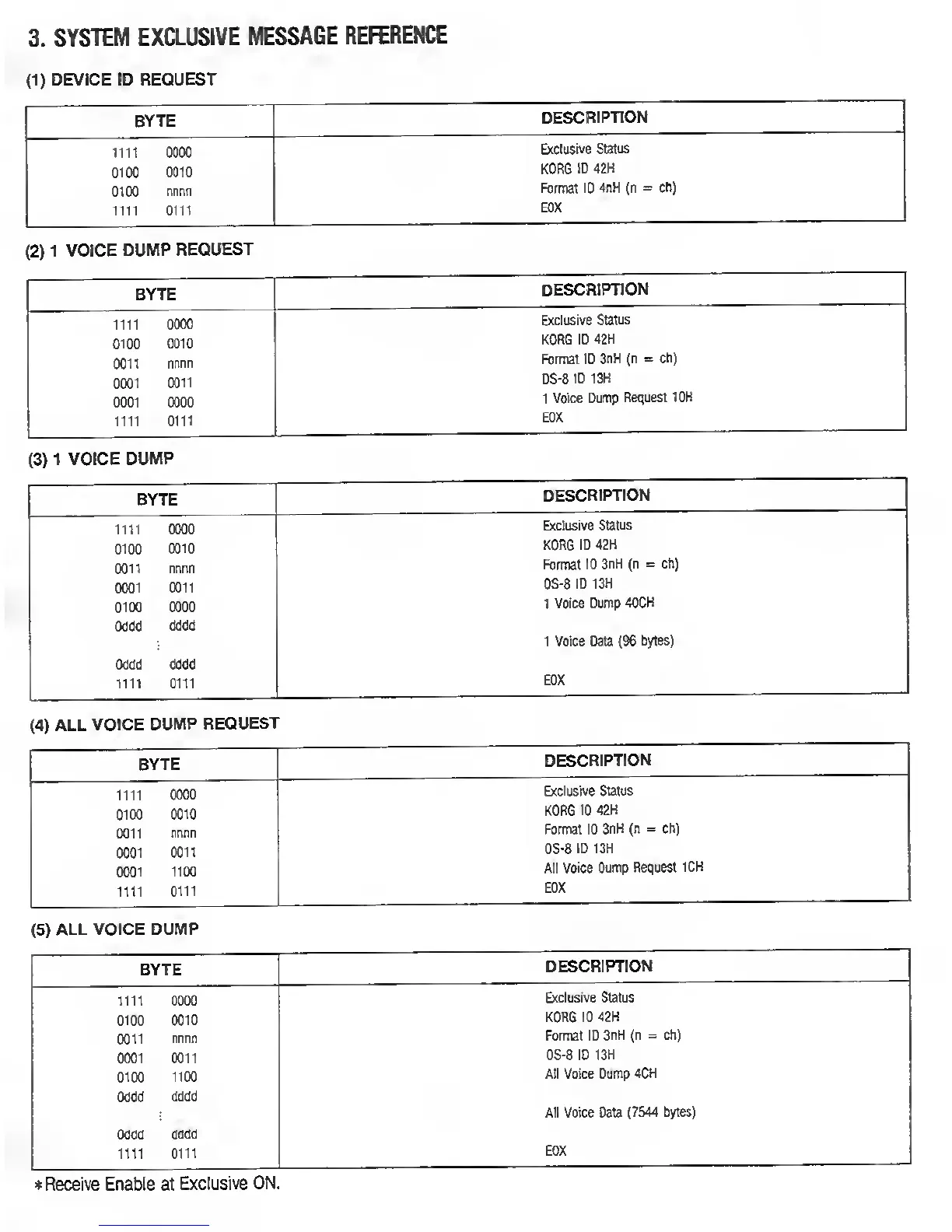

3. SYSTEM EXCLUSIVE MESSAGE REFERENCE
(1) DEVICE ID REQUEST
BYTE
DESCRIPTION
1111 0000
Exclusive Status
0100
0010
K0RS 10 42H
0100
nnnn
Format ID 4nH (n = ch)
1111
0111
EOX
(2) 1 VOICE DUMP REQUEST
BYTE
DESCRIPTION
1111 0000
Exclusive Status
0100 0010
KORG ID 42H
0011 nnnn
Format ID 3nH (n = ch)
0001 0011
DS-8 ID 13H
0001 0000
1 Voice Dump Request 10H
1111 0111
EOX
(3) 1 VOICE DUMP
BYTE
DESCRIPTION
1111 0000
Exclusive Status
0100 0010
KORG ID 42H
0011 nnnn
Format ID 3nH (n = ch)
0001 0011
DS-8 ID 13H
0100 0000
1 Voice Dump 40CH
Oddd dddd
1 Voice Data (96 bytes)
Oddd dddd
1111 0111
EOX
(4) ALL VOICE DUMP REQUEST
BYTE
DESCRIPTION
1111 0000
Exclusive Status
0100
0010
KORG ID 42H
0011
nnnn
Format ID 3nH (n = ch)
0001
0011
DS-8 ID 13H
0001
1100
All Voice Dump Request 1CH
1111 0111
EOX
(5) ALL VOICE DUMP
BYTE
DESCRIPTION
1111 0000
Exclusive Status
0100 0010
KORG ID 42H
0011
nnnn
Format ID 3nH (n = ch)
0001 0011
DS-8 ID 13H
0100 1100
All Voice Dump 4CH
Oddd
dddd
All Voice Data (7544 bytes)
Oddd dddd
1111 0111
♦ Receive Enable at Exclusive ON.
EOX
