Korg M3 User Manual

10
Steinberg - Cubase SX4
1

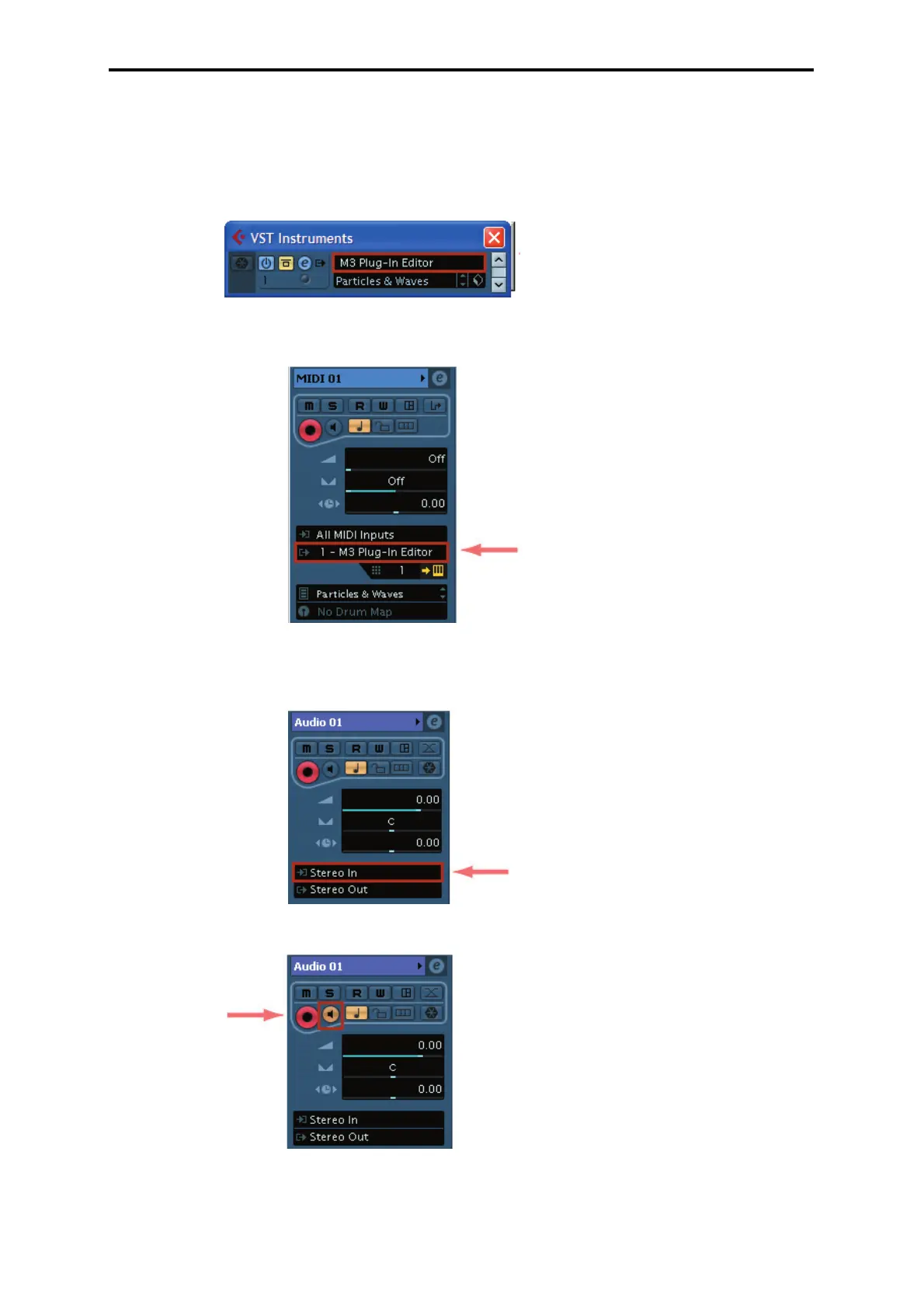

Start up Cubase SX4 and create a project.
2
In the VST Instruments window, start up “M3 Plug-In Editor.”
3
Create a MIDI track. As the output of that MIDI track, choose “M3 Plug-In Editor”
which you started up in the VST Instruments window.
4
To route the M3’s audio signal to Cubase SX4, create an audio track. As the input of the
track, select the audio interface input to which you’ve connected the M3’s audio
signal.
5
Turn the Monitor button on so that you can hear the audio signal.

Korg M3 Specifications

General

Synthesis Type	EDS (Enhanced Definition Synthesis)
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61-key, velocity-sensitive, aftertouch
Sequencer	16-track MIDI sequencer
Sampling	Open Sampling System
Display	TouchView graphical user interface with 320x240 color TFT LCD
Arpeggiator	2 polyphonic arpeggiators
Controllers	Joystick, Ribbon Controller
Outputs	L/MONO, R, Individual 1-4, Headphones
USB	Yes, USB MIDI
Storage	SD card slot
Combinations	1, 792 user combinations
Polyphony	120 voices (max)
Effects	5 Insert effects, 2 Master effects, 1 Total effect
