Korg pitchblack+ User Manual

8

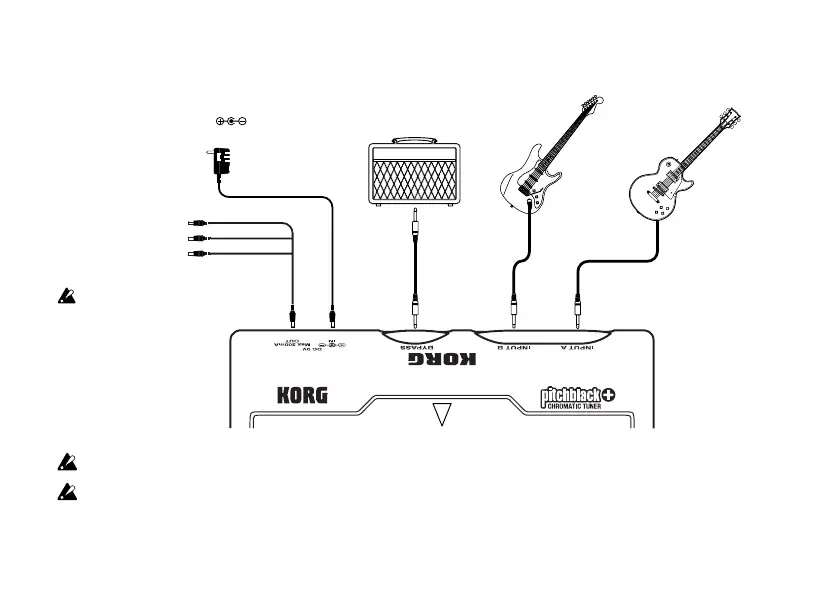

Connections
Connect to your amp
or effect pedal, etc.
Guitar or bass
AC adapter (9V, , 600 milliamps
or greater, sold separately)
To AC outlet
INPUT AINPUT B
BYPASS
DC 9V IN
DC 9V OUT
DC cable (included)
To your effect pedals
Maximum 200 milli-
amps
DO NOT let the un-
used plugs touch met-
al objects. Doing so
can damage the AC
adapter. Be sure the
unused plugs are pro-
tected
Power-off all equipment before making connections.
The INPUT A, INPUT B, and BYPASS jacks are mono-only. Stereo cables cannot be used.

Korg pitchblack+ Specifications

General

Type	Pedal Tuner
Calibration Range	436 - 445 Hz
Detection Accuracy	+/- 0.1 cent
Inputs	1 x 1/4" (Guitar/Bass)
Outputs	1/4" (Bypass)
Power Supply	9V DC (center negative) or Battery
Accessories	9V Battery
Tuning Range	E0 (20.60 Hz) - C8 (4186 Hz)
