GB-045BC_f.854
Conguration
Heating box size 15 kW
Heating box size 24 kW
Heating box size 27 kW
P
P
P
P
P
P
P
Before you supply voltage for the rst time, make sure that
you set the heater’s power at appropriate value (always
consider the capacity of your home’s electrical system).
Notice: Conguration must be performed before initial
start-up when power supply is switched off. Set 2 (two)
switches at proper position to congure a heater. The
switches are located on electronic board. Each switch has
4 (four) positions, they are described as
P
(power settings)
and
F
(other settings). Switch on a power supply to upgrade
conguration. After you supply power to PPE2 or PPVE
a display will show: (PW...) - software version of control
panel, (MSP...) - software version of controller and the
value of rated power that has been set for the heater
(PPE2; PPVE).
P

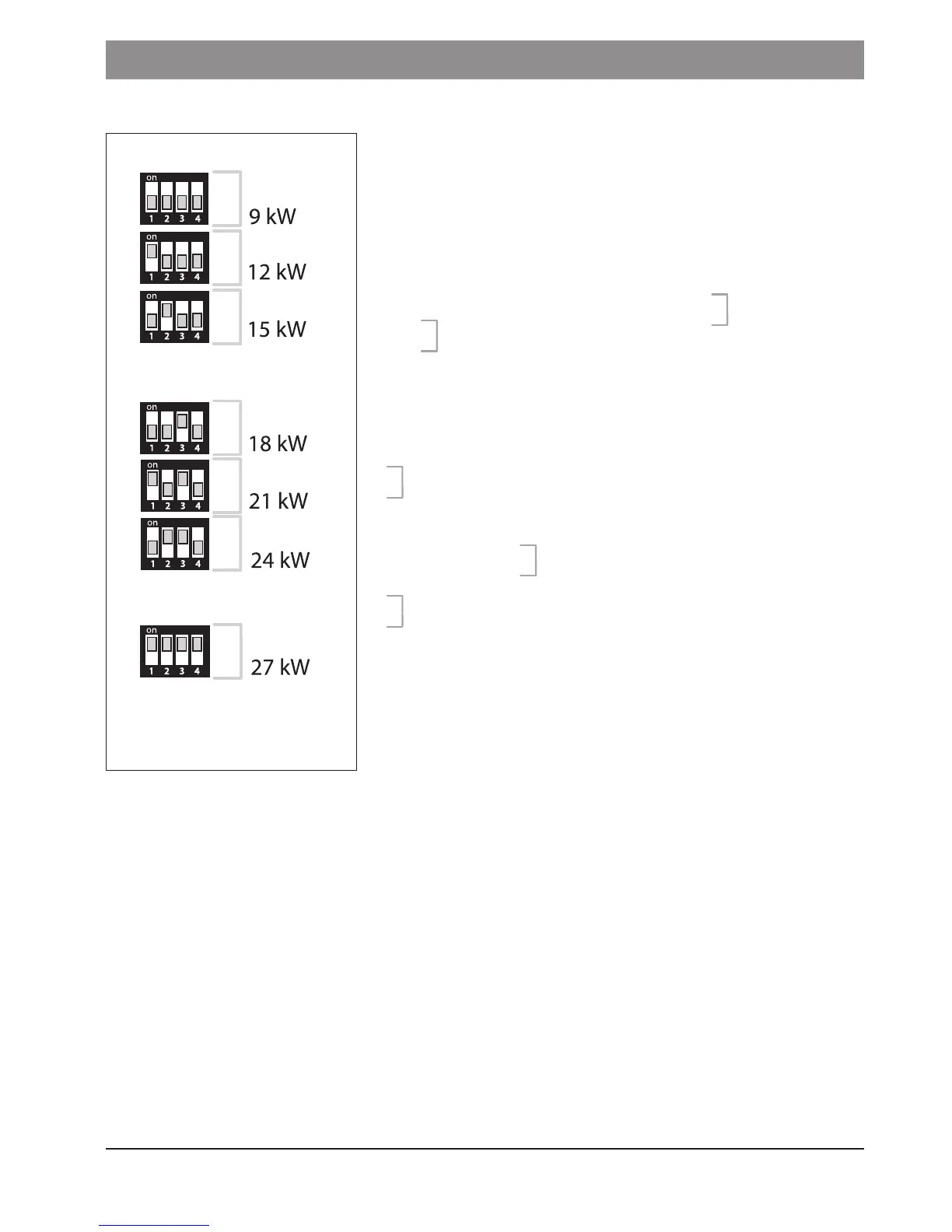

switches settings (for PPE2, KDE2, PPVE):
• 1, 2 - rated power of heater,
• 3, 4 - type of heating box,
Do not reset
P
switches for KDE - keep factory
settings intact.
F
switches settings:
• 1, 2, 3 - do not change! keep factory settings intact,
• 4 - ON - blocks access to the heater’s settings.
In this case for PPE2 or PPVE, the display shows
the desired temperature value (which has been
adjusted before the heater is off), the heating icon
and other possible working characteristics.
grey square shows the switch
position
The heater is factory set at NORMAL mode (range of temperature regulation
from 30-60ºC) To use the heater for shower purposes it has to be changed to
SHOWER mode (range of temperature regulation from 30-55ºC). Change of the
modes can only be done by authorised service.
