671T, 671R - Overview
3.1.2 Your 671R DVI Optical Receiver

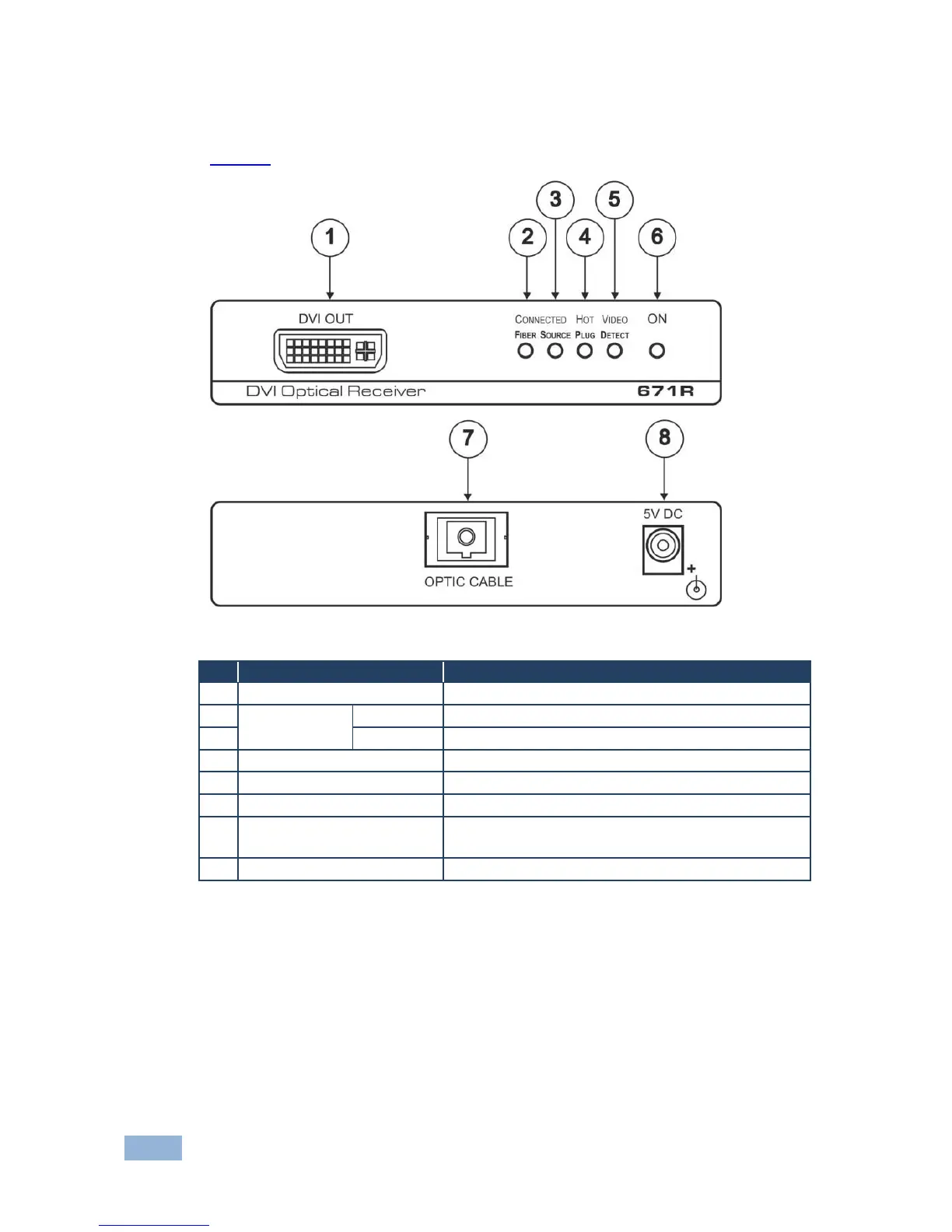

Figure 2 defines the 671R DVI Optical Receiver:
Figure 2: 671R DVI Optical Receiver
#
Feature
Function
1
DVI OUT Connector
Connects to the DVI acceptor
2
CONNECTED
LEDs
FIBER
Illuminates when the fiber optic cable is connected
3
SOURCE
Illuminates when a source is connected
4
HOT PLUG LED
Indicates a connected display on the receiver side
5
VIDEO DETECT LED
Indicates a valid video signal on the transmitter side
6
ON LED
Illuminates when receiving power
7
OPTIC CABLE Connector
Connect to the optical connector on the 671T
(remove dust cap prior to use)
8
5V DC
+5V DC connector for powering the unit
