Connecting Your FC-400 Time Base Corrector / Synchronizer
7
5.1 Connecting a PC
To connect a PC to the FC-400 unit, using the Null-modem adapter provided
with the machine (recommended):
 Connect the RS-232 DB9 rear panel port on the FC-400 unit to the
Null-modem adapter and connect the Null-modem adapter with a 9 wire flat
cable to the RS-232 DB9 port on your PC
Alternatively, to connect a PC to the FC-400 unit without using a Null-modem
adapter:
 Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel
port on the FC-400 unit, as Figure 3 illustrates

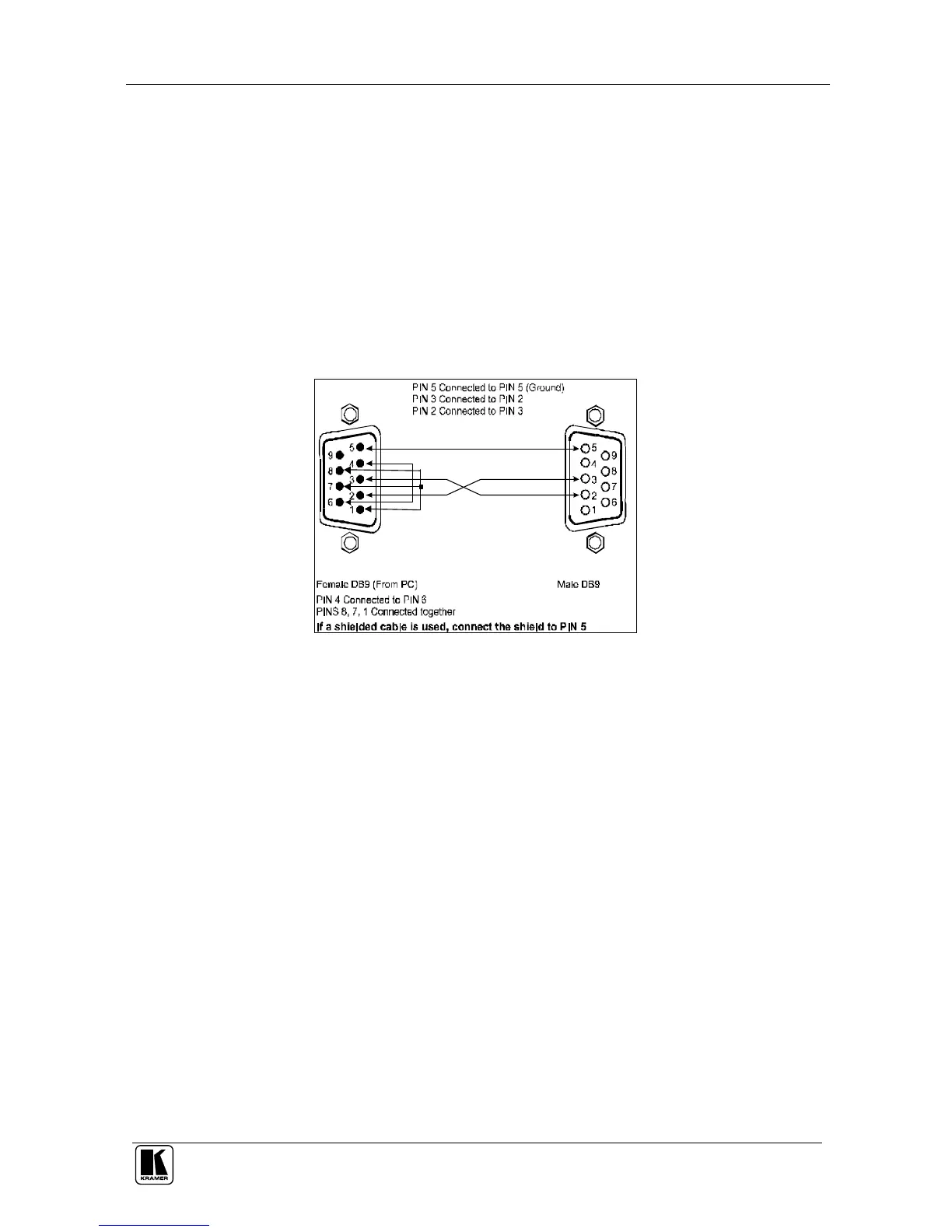

Figure 3: Connecting a PC without using a Null-modem Adapter
