7 Wiring the Twisted Pair RJ-45 Connectors
When using STP cable, connect/solder the cable shield to the RJ-45 connector
shield. Figure 6 defines the TP pinout using a straight pin-to-pin cable with RJ-45
connectors.
EIA /TIA 568B

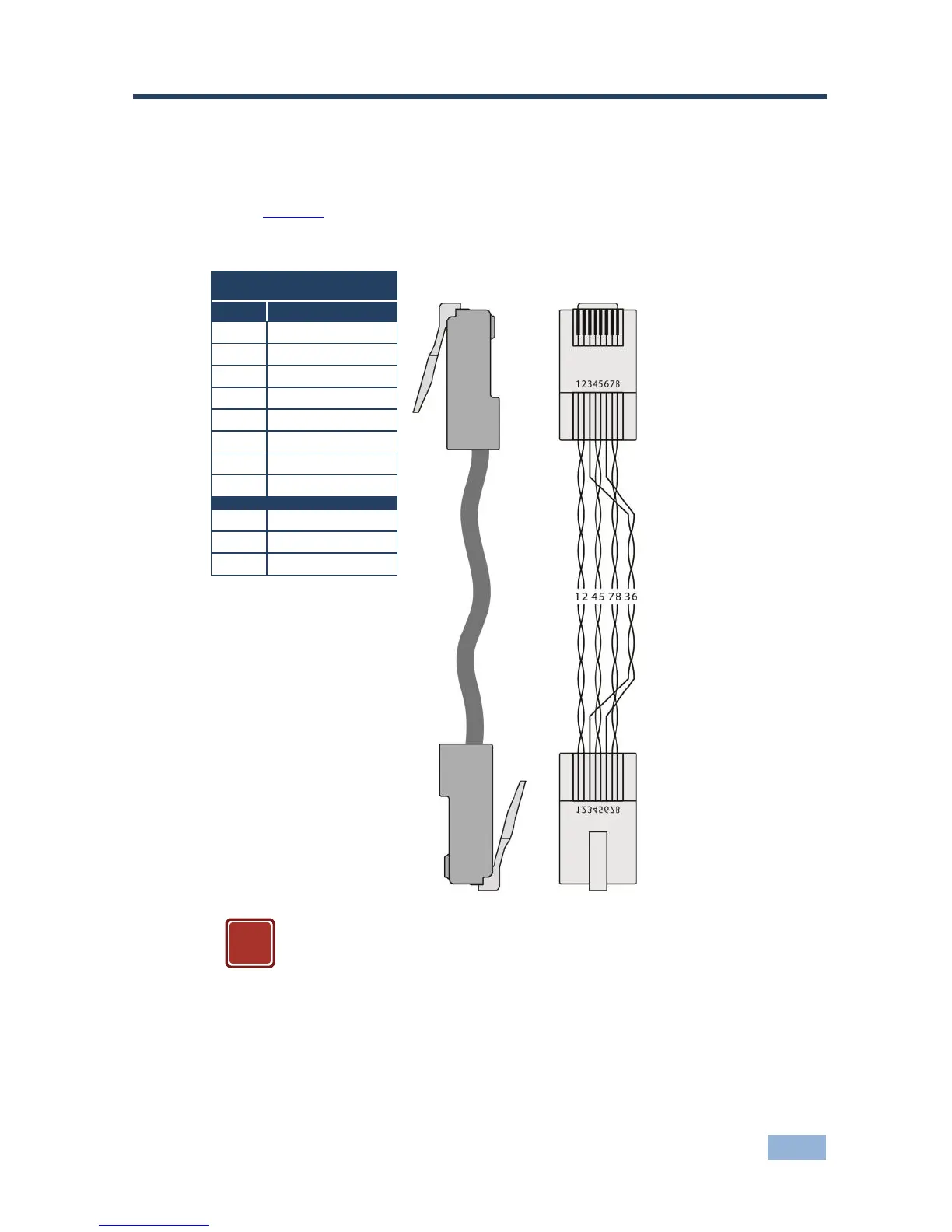

Figure 6: TP Pinout Wiring
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
Pair 1
4 and 5
Pair 2
1 and 2
Pair 3
3 and 6
Warning:
Using a TP cable that is incorrectly wired will cause
permanent damage to the device
!
