Kramer TP-590Rxr Quick Start Guide

Step 3: Install TP-590RXR
Install TP-590RXR using one of the following methods:
• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to www.kramerav.com/downloads/TP-590RXR.
• Mount the unit in a rack using an optional RK-T2B rack adapter.

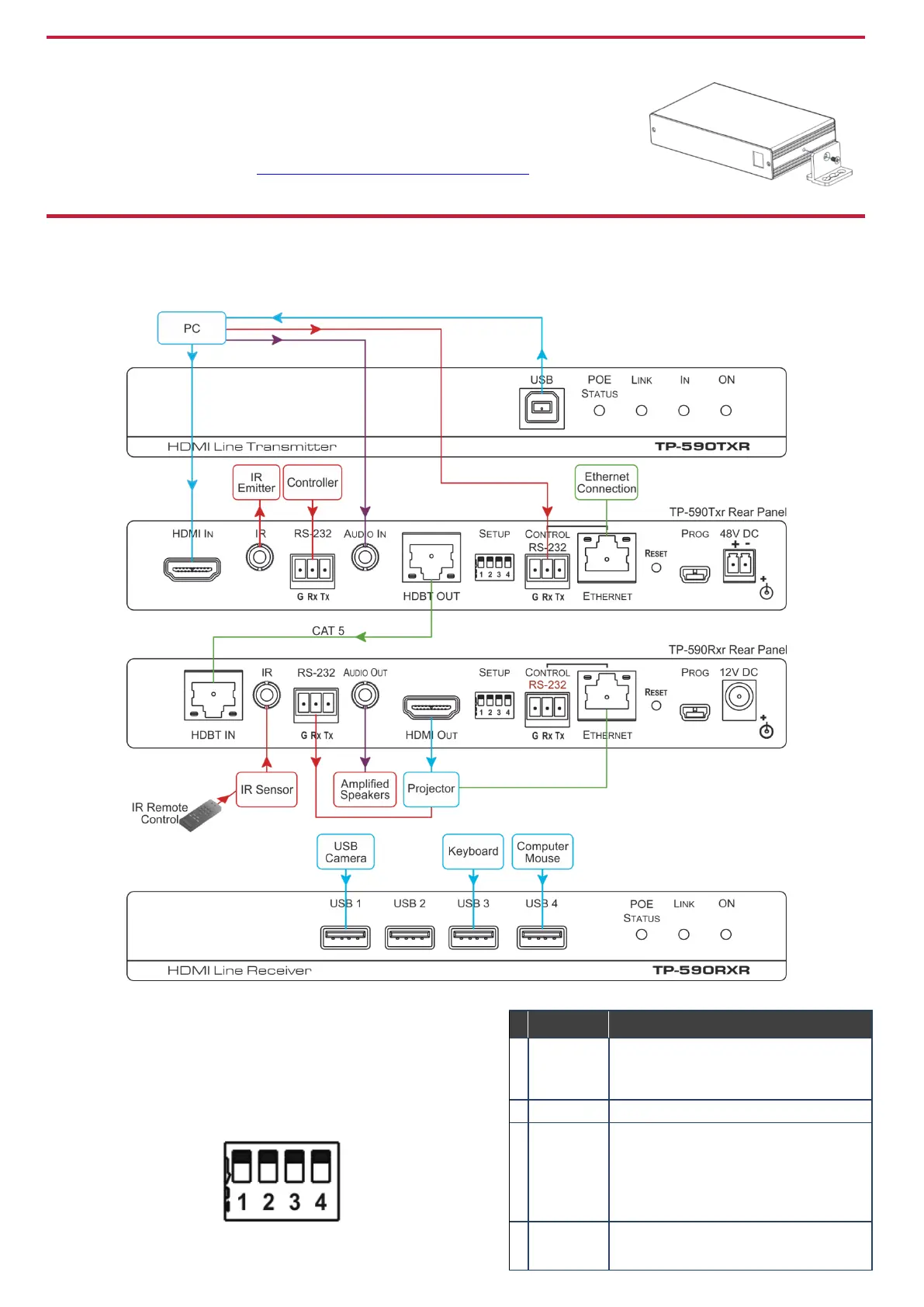

Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your TP-590RXR. For best results, we recommend that you
always use Kramer high-performance cables to connect AV equipment to TP-590RXR.
Setting the DIP Switches
Set the DIP-switches using the table on the right. The ON/OFF
positions are as follows:
• Switch down = ON
• Switch up = OFF
Note: Changes to the DIP-switches only take effect on power-up.
Function
Status
1
Range
mode
Off—Extended range (provides increased
range at a reduced bandwidth)
On—Normal range (factory default)
2
Reserved
Off—Factory default
3
EDID lock
Off—Automatic EDID acquisition (factory
default)
On—Lock (locks the current EDID so that
changes on the output do not result in
changes to the EDID)
4
Reserved
Off—Factory default
