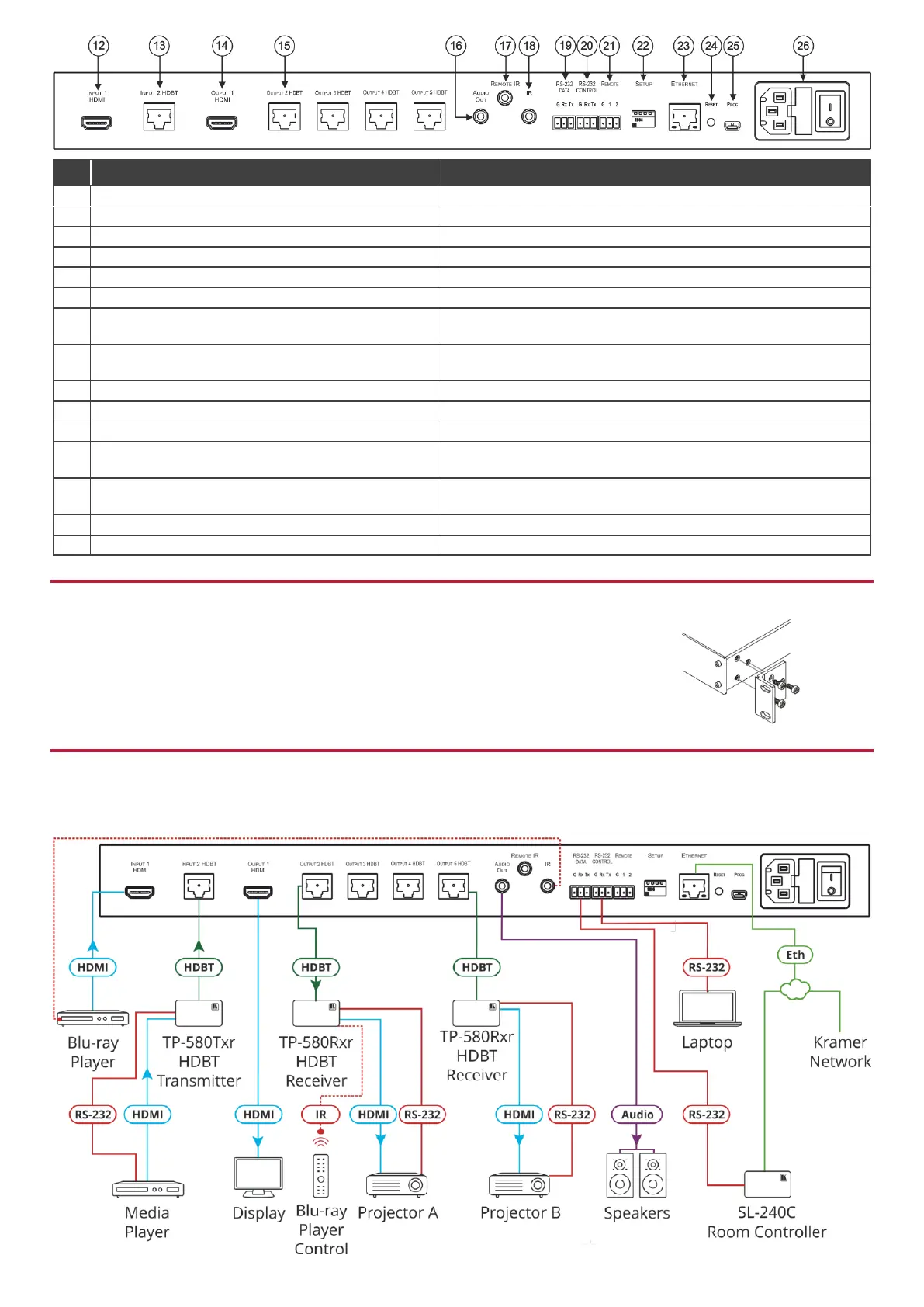

Kramer VM-214DT Quick Start Guide

#
Feature
Function
12
INPUT 1 HDMI™ Connector
Connect to a local HDMI source.
13
INPUT 2 HDBT on RJ-45 Connectors
Connect to an HDBT transmitter (for example, TP-580Txr).
14
OUT 1 HDMI Connector
Connect to a local HDMI acceptor.
15
OUT HDBT RJ-45 Connectors (2 to 5)
Connect to HDBT receivers (for example, TP-580Rxr).
16
AUDIO OUT 3.5mm Mini Jack
Connect to an analog audio acceptor.
17
REMOTE IR 3-pin Terminal Block Connector
For future use.
18
IR on 3.5 Mini Jacks
Connect to an IR sensor/emitter cable to send/receive an IR
control signal via HDBT links.
19
RS-232 DATA 3-pin Terminal Block Connector
Connect to serially control the devices that are connected to the
HDBT transmitters/receivers via HDBT links.
20
RS-232 CONTROL 3-pin Terminal Block Connector
Connect to the serial controller to control the VM-214DT.
21
REMOTE 3-pin Terminal Block Connector
For future use
22
SETUP DIP-switches
Use to set the device behavior.
23
ETHERNET RJ-45 Connector
Connect to LAN for Ethernet extension via IN and OUT HDBT
ports and remote IP control of the VM-214DT.
24
RESET Button
Press and hold while powering on the device to reset to factory
default parameters.
25
PROG Mini USB Connector
Connect to a PC to perform firmware upgrades.
26
Mains Power Connector, Fuse, and Switch
Connect to the mains supply.
Step 3: Install VM-214DT
Install VM-214DT using one of the following methods:
Remove the three screws from each side of the unit, reinsert those screws through the rack ears
and mount on a 19" rack.
Attach the rubber feet and place the unit on a flat surface.
Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your VM-214DT. For best results, we recommend that
you always use Kramer high-performance cables to connect AV equipment to the VM-214DT.
