Kramer VM-4H - Installing and Connecting the VM-4 H; Installing the VM-4 H on a Rack

Installing the VM-4H on a Rack
7
Table 1: VM-4H 1:4 HDMI Distributor Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 ACTIVE LED Illuminates when the input is active; flashes when the input is not valid
3
EDID
READ Button Press to read the EDID of the selected display
4 SELECT Button Select the desired display for EDID information
5 OUTPUTS LEDs LEDs light when an output(s) is connected and active; LEDs flash
when selecting EDID (see section 7
)
6 INPUT HDMI Connector Connects to the HDMI source
7 OUTPUT HDMI Connectors Connect to the HDMI acceptors (from 1 to 4)
8 Power Connector with Fuse AC connector enabling power supply to the unit

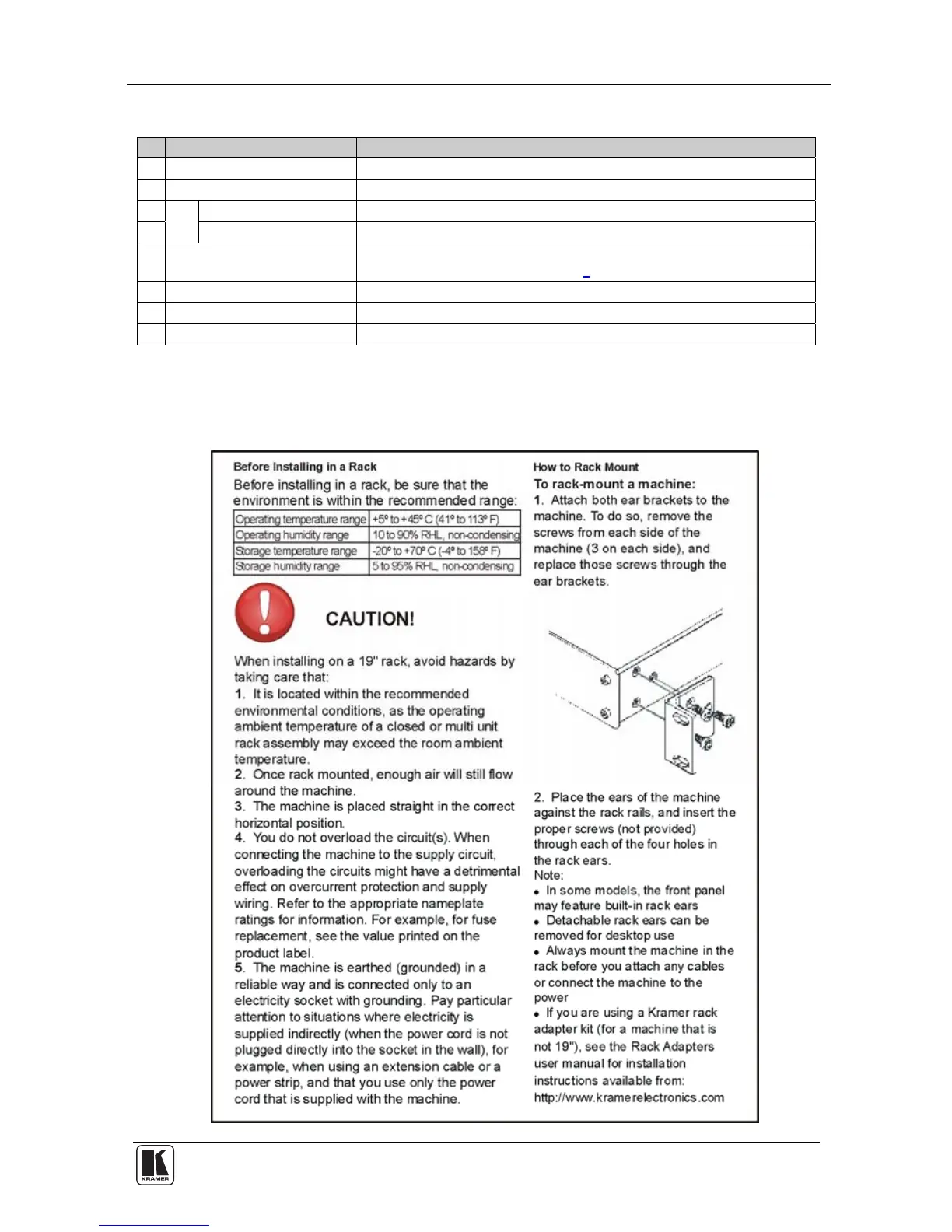

5 Installing the VM-4H on a Rack
This section provides instructions for rack mounting the unit.
