Kramer VP-427 - Defining the VP-427 HDBaseT to HDMI Receiver;Scaler

VP-427 - Overview
5
3.1 Defining the VP-427 HDBaseT to HDMI Receiver/Scaler
This section defines the VP-427.

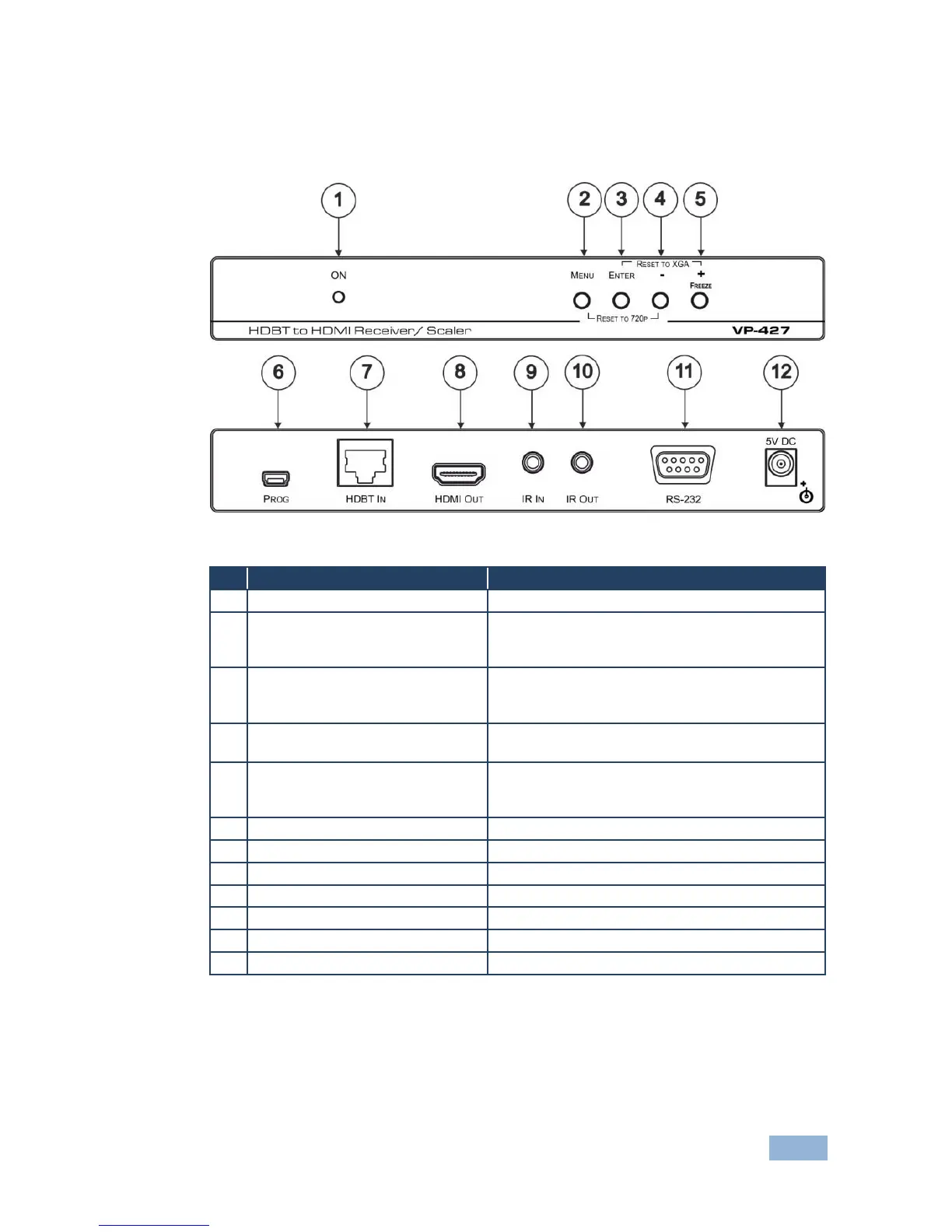

Figure 1: VP-427 HDBaseT to HDMI Receiver/Scaler
#
Feature
Function
1
ON LED
Lights green when the unit is powered on
2
MENU Button
Press to enter/escape the on-screen display
(OSD) menu. Press together with the – button to
reset to 720p
3
ENTER Button
In OSD, press to choose the highlighted menu
item. Press together with the + button to reset to
XGA
4
–
In OSD, press to move backward through the list
or to decrement the parameter value
5
+/FREEZE Button
In OSD, press to move forward through the list or
to increment the parameter value. When not in
OSD, press to freeze the display
6
PROG USB Connector
Connects to a PC for programming upgrade
7
HDBT IN RJ-45 Connector
Connects to an HDBaseT transmitter
8
HDMI OUT Connector
Connects to an HDMI acceptor
9
IR IN 3.5mm Mini Jack
Connects to an IR receiver
10
IR OUT 3.5mm Mini Jack
Connects to an IR emitter
11
RS-232 9-pin D-sub Connector
Connects to a controller
12
5V DC
+5V DC connector for powering the unit
