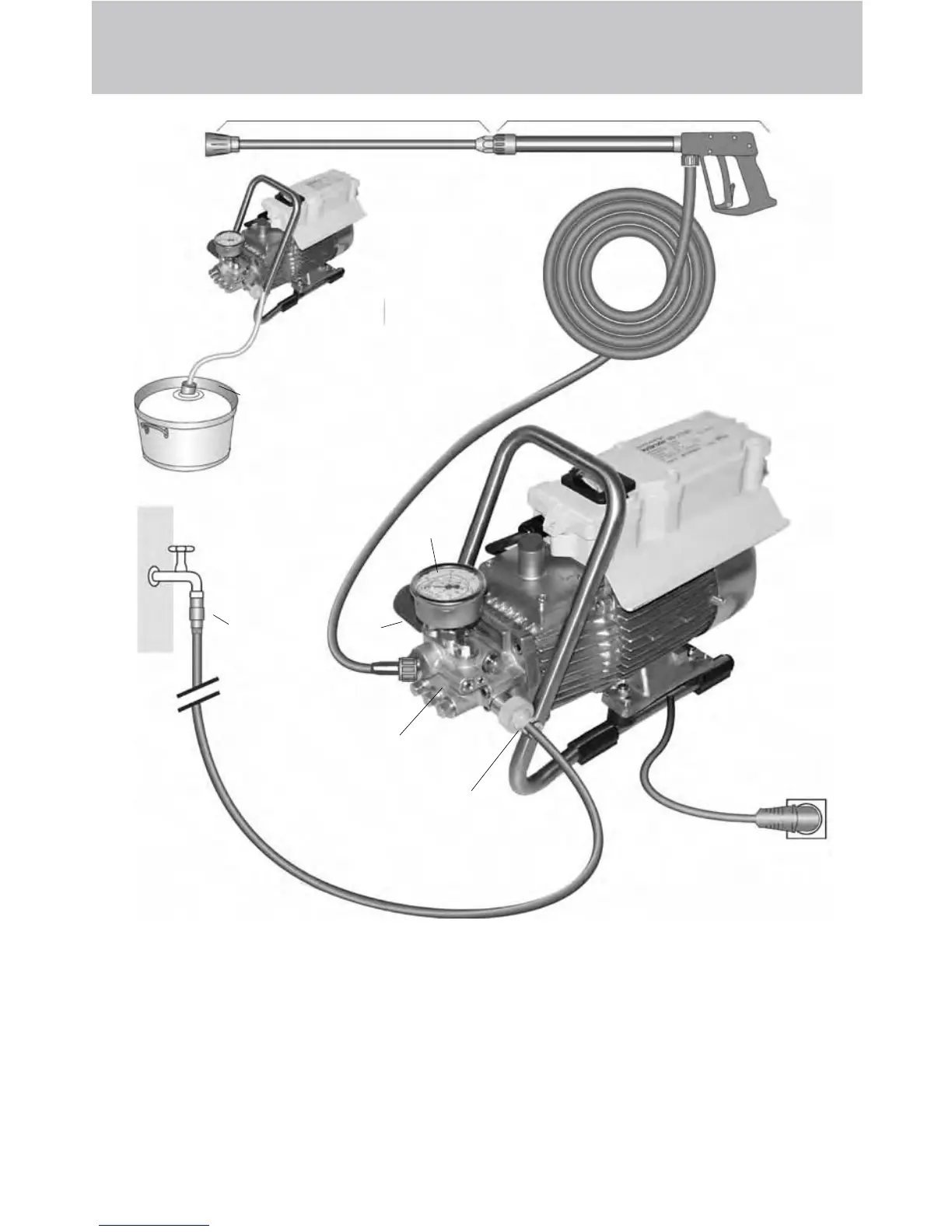

Connection principle
The KRÄNZLE K 1622 - high pressure cleaners are mobile machines. The design
can be seen from the diagram.
Components
1 Water inlet connection with lter
2 Suction hose with lter (special
accessory) Order no. 15.038 3
3 High pressure pump
4 Press. gauge with glycerin lling
5 Unloader valve - safety valve
6 High pressure hose
7 Spray gun
8 Interchangeable lance with high
pressure nozzle
9 Nonreturn valve (see page 8)
Description
8 7
2
Water
6
4
5
3
1
115 V
Zulässige Abweichung der Zahlenwerte ± 5 % nach VDMA Einheitsblatt 24411
