Kranzle Profi 195 TST - Wiring Diagram (400 V Models); Electrical Circuit Layout (400 V)

43

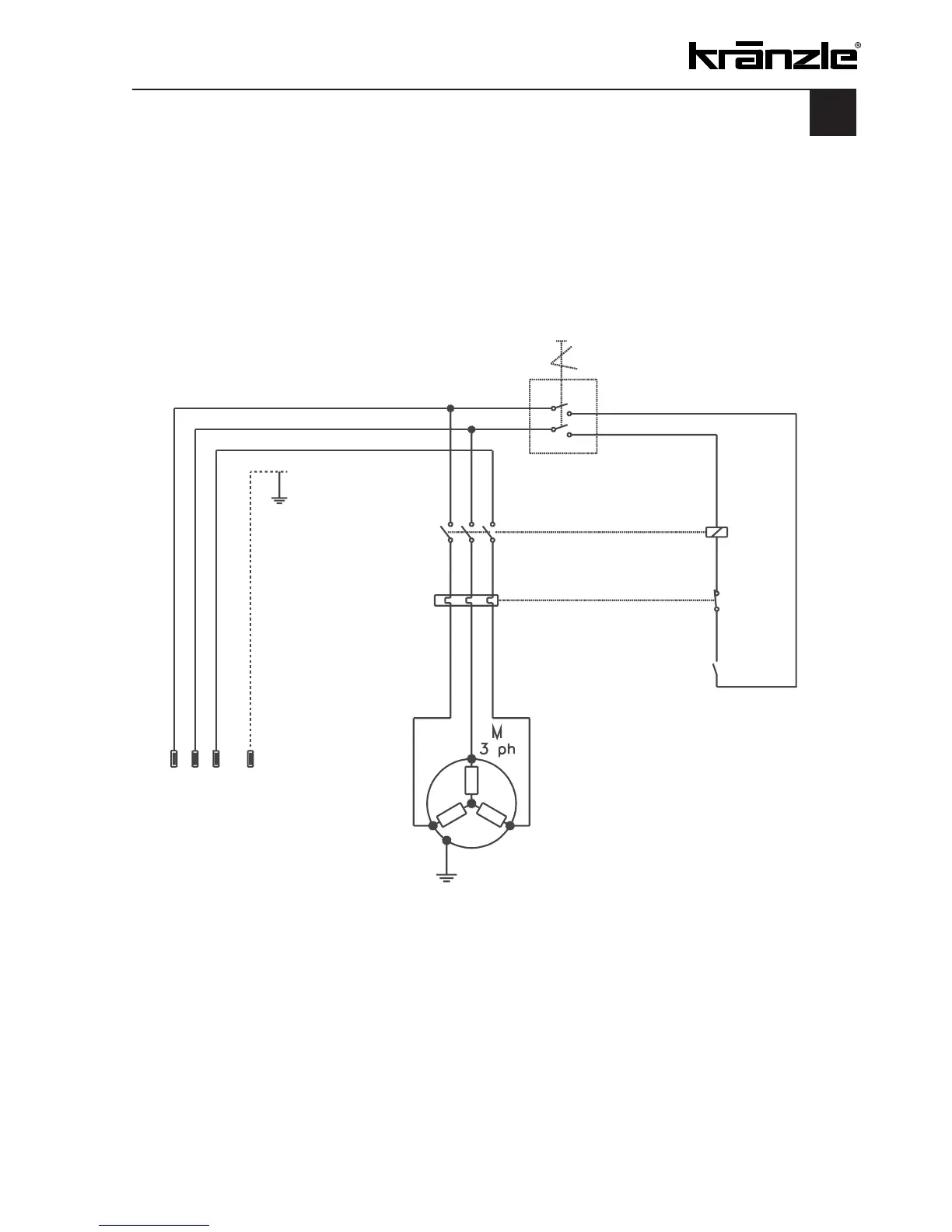

Wiring diagram Kränzle Profi 175 TS T,
Kränzle Profi 15/120 TS T,
400 V, 50 Hz
On-Off switch
with 8.5 Ampere
overload protection
Contactor
Excess current release
Inlet line viaCEE 4 x 1,5
mm
2
,
400 V / 50 Hz
Pump motor
3 x 400 V / 50 Hz
Pressure switch
