Kraus KPF-1621 - KPF-1621 Diagram and Parts List

3

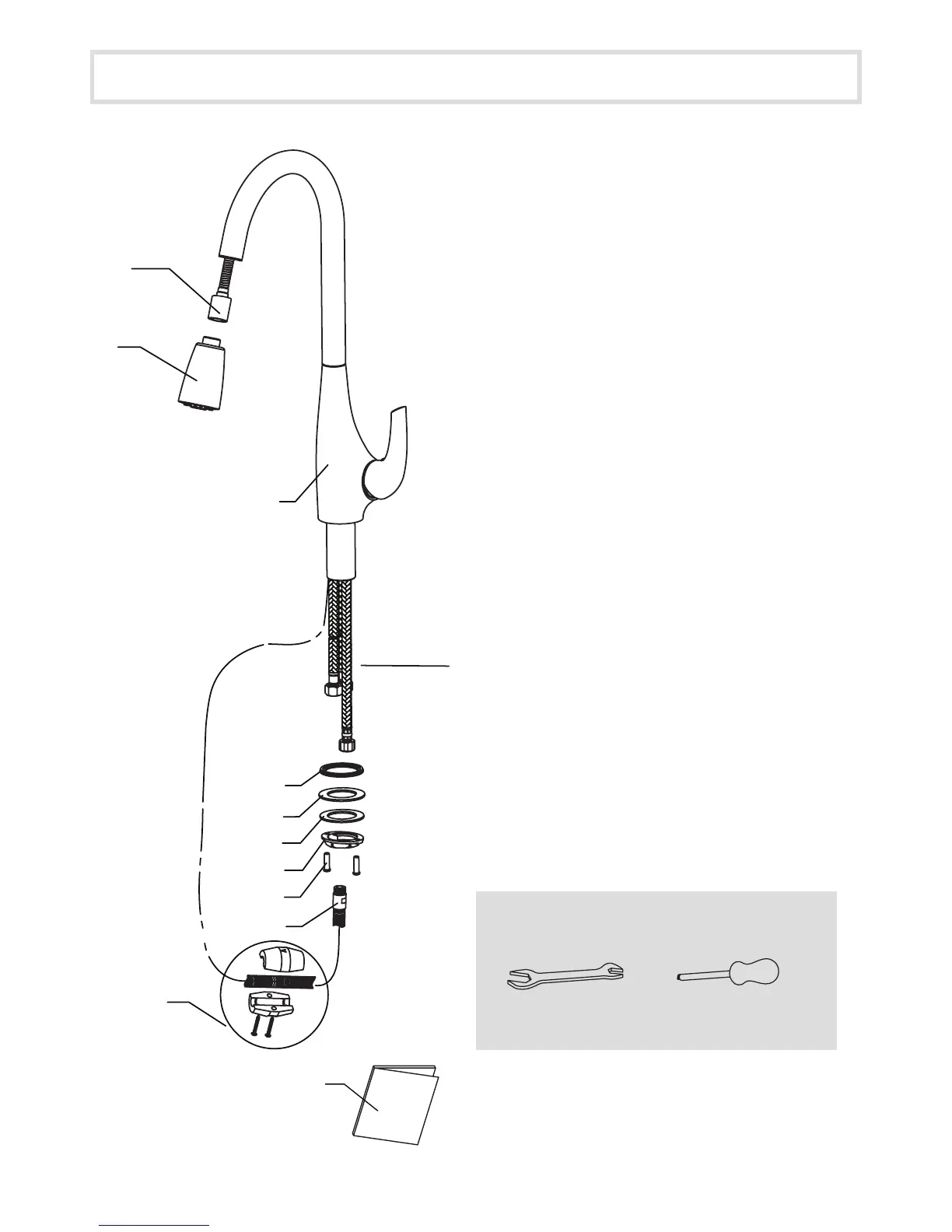

Included Parts:
1. Faucet Body
2. Base O-Ring
3. Rubber Washer
4. Metal Washer
5. Mounting Nut
6. Mounting Screws (2)
7. Weight
8. Spray Head
9. Spray Hose
10. Hot and Cold Waterlines (2)
11. Manual
KPF-1621 Diagram and Parts List
