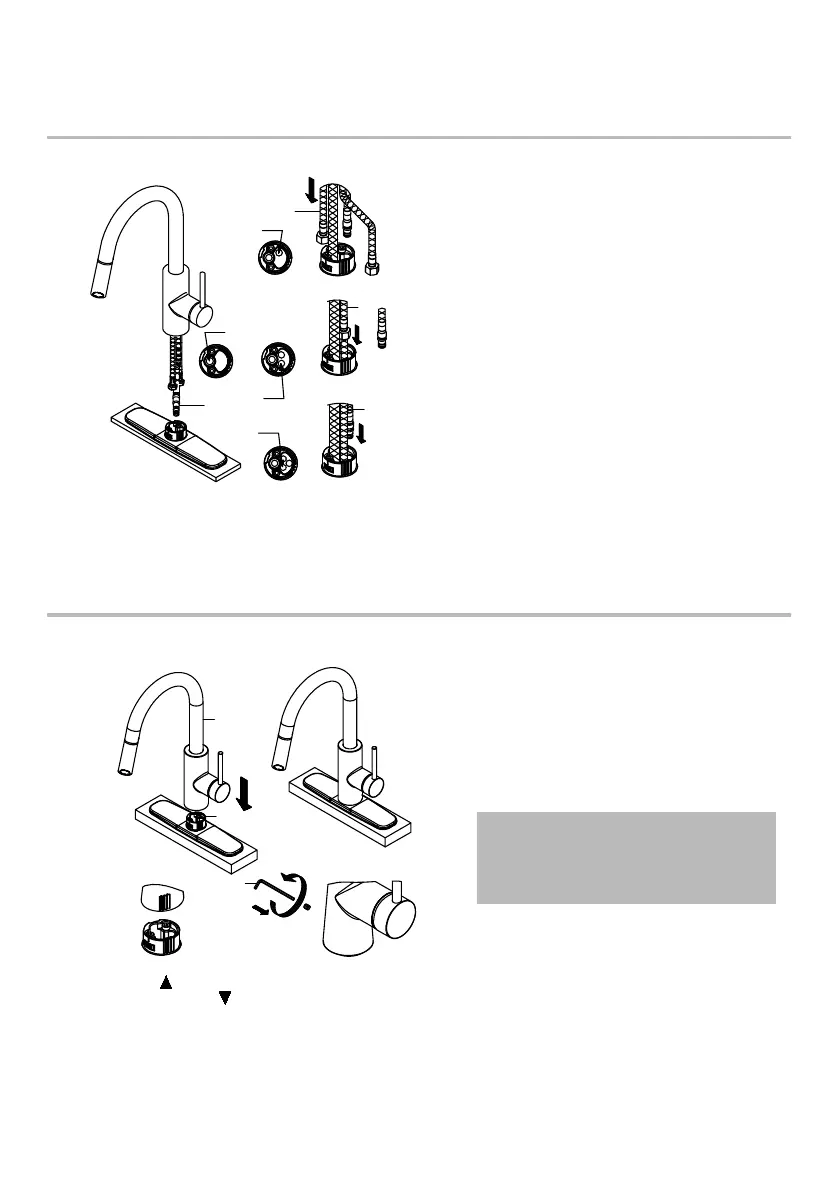

Step 2. Install Faucet
E
E
D
F
F E
D
D
Remove Quick Connect (H) from
spray hose (F). Insert spray hose
(F) into small hole of base (J).
Insert hot & cold waterlines (E)
and supply hose (D), one by one,
in large hole of base.
Step 3. Secure Faucet
B
Align arrow on faucet body (B)
with arrow on base (J). Attach
faucet body (B) to base (J). Secure
faucet body (B) by tightening the
set screw with 2.5mm hex wrench
(i1).
J
i1
Installer Tip: Please loosen set
screw from faucet body (B)
prior to securing to base (J).
Note: “ “ on base should be in
alignment with “ “ on faucet body.
