Assembly
5.

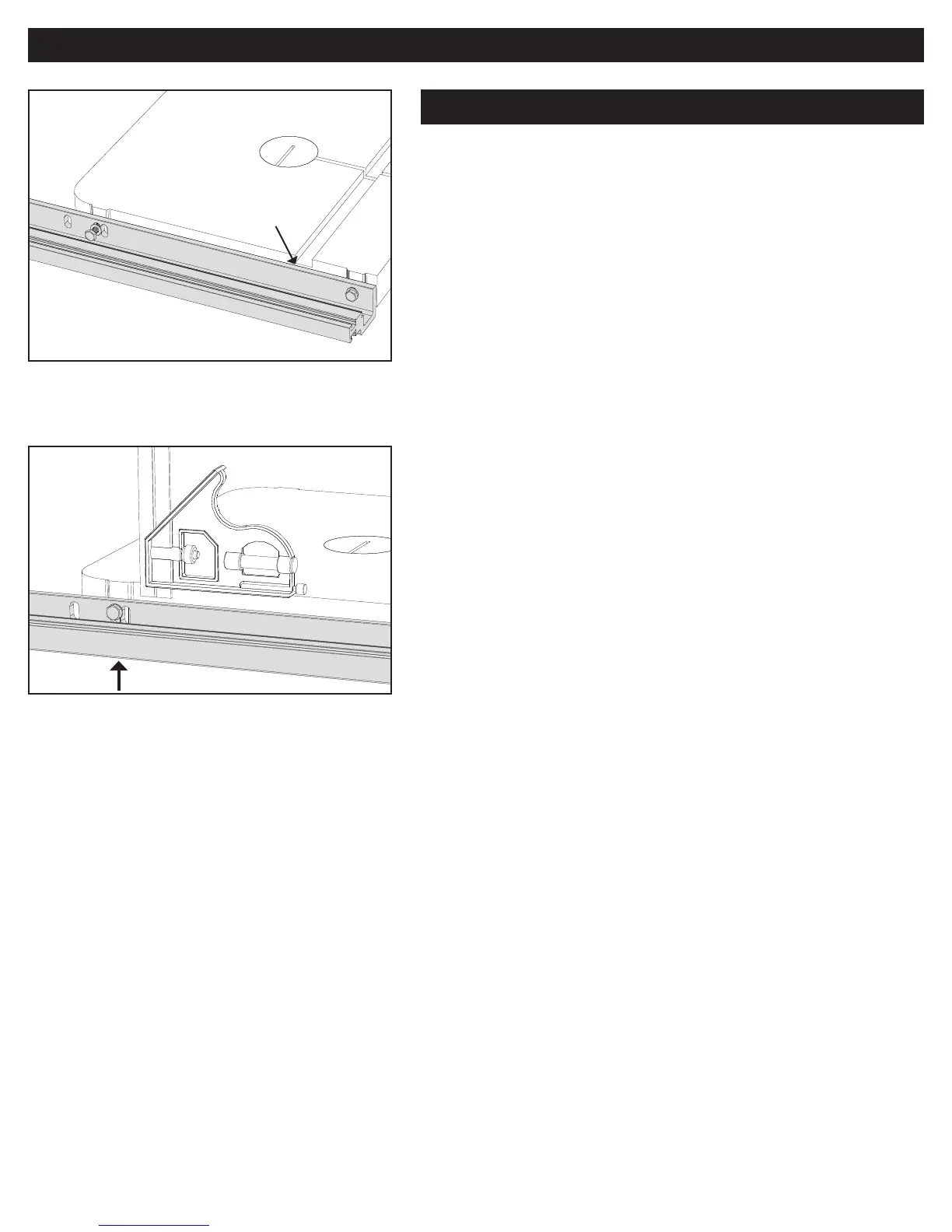

Slip a washer over one mounting bolt, insert the bolt through the right-
hand rail slot, and thread it into the right-hand saw-table hole. Snug, but
do not tighten the bolt. Slip a washer over the other bolt. Holding the rail
in position, insert the bolt into the appropriate rail slot and thread it into
the saw-table hole. Snug the bolt. Align the rail parallel to top surface of
the saw table and with the top edge of the rail
1
⁄16" below the bottom of
the miter-gauge slot. Tighten the bolts.
Tip
Set the blade of your combination square to the miter gauge slot depth
plus
1
⁄16". Then use the square to position the top edge of the mounting
rail at each mounting bolt.
Loosely fasten the rail at the right-hand end, then rotate
the rail into position and secure the left-hand end.
Install the Mounting Rail
1
⁄16"
