KREMLIN REXSON - 1 - N° : 578.027.120-UK-1309

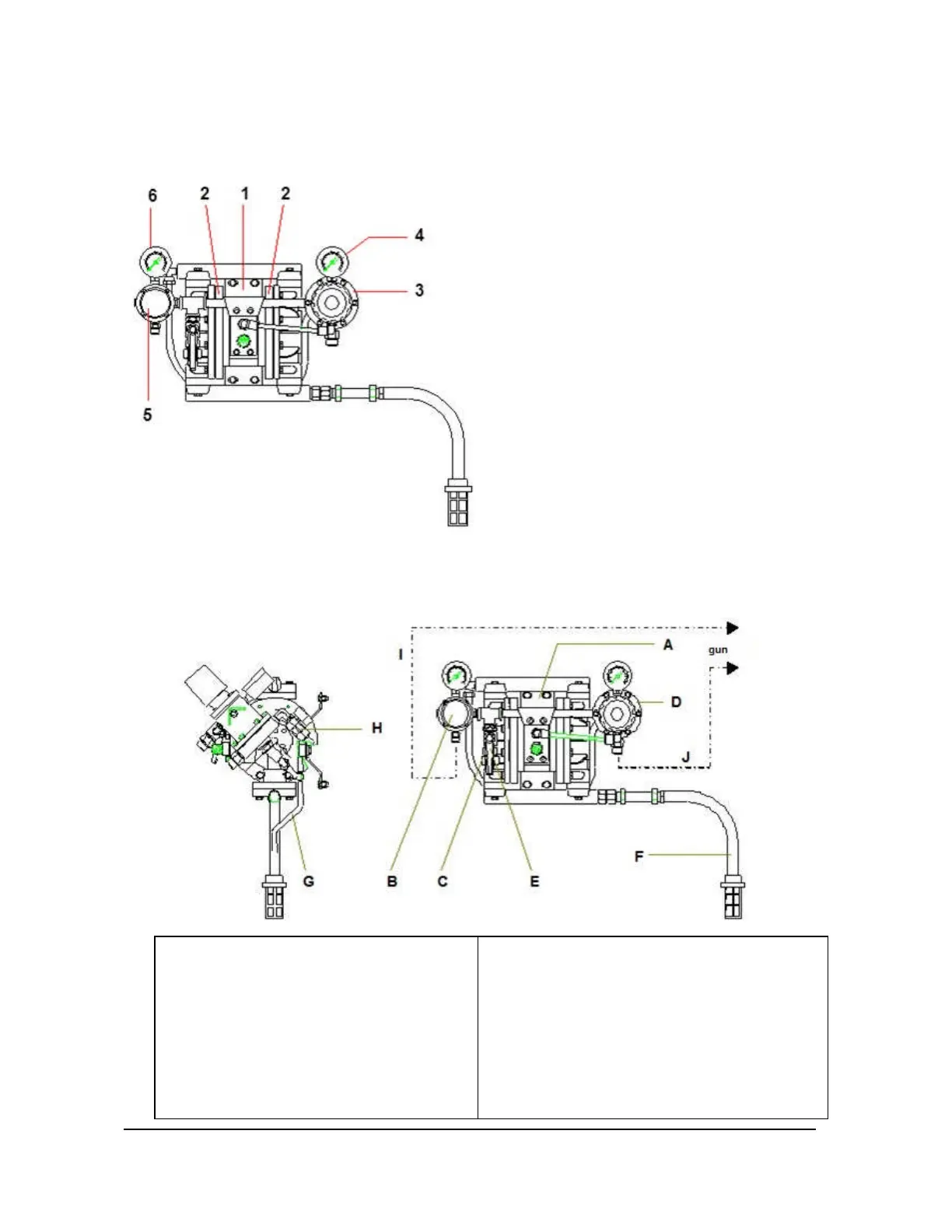

1. OPERATING PRINCIPLE
The pump consists of :
x a central air motor (1),
x two identical fluid chambers (2) located on either
side of the motor.
The motor is directly supplied with compressed air
from the air pressure network (maximum 6 bar / 87
PSI) or via an air r egulator (depending on the
model). An air chamber is alternatively supplied by
an air distributor, thus causing the motion of the
diaphragms. Each of the two fluid chambers
includes a suction valve and an exhaust valve.
Alternatively material is siphoned and exhausted by
each chamber.
At the pump outlet, a fluid regulator with pilot (3)
provides a constant fluid pressure and flow rate.
The fluid pressure is equal to the pressur e read on
the gauge (4).
The atomizing air pressure is adjusted by means of
the air regulator (5). The pressure is read on the
gauge (6).
2. START-UP
Captions :
A - Pump
B - Air regulator (gun)
C - Air inlet
D - Fluid regulator with pilot
E - Air shut off valve
F - Suction rod
G - Drain hose
H - Drain valve
I - A ir hose (static conductor)
( 7 or 8 mm / 1/4" or 5/16" depending on the
model of the gun)
J - Material hose (7 or 10 mm / 1/4" or 3/8" ID).
(For specific installation, please contact your
KREMLIN REXSON representative).
