MODEL #500
(illustration E)
(illustration F)

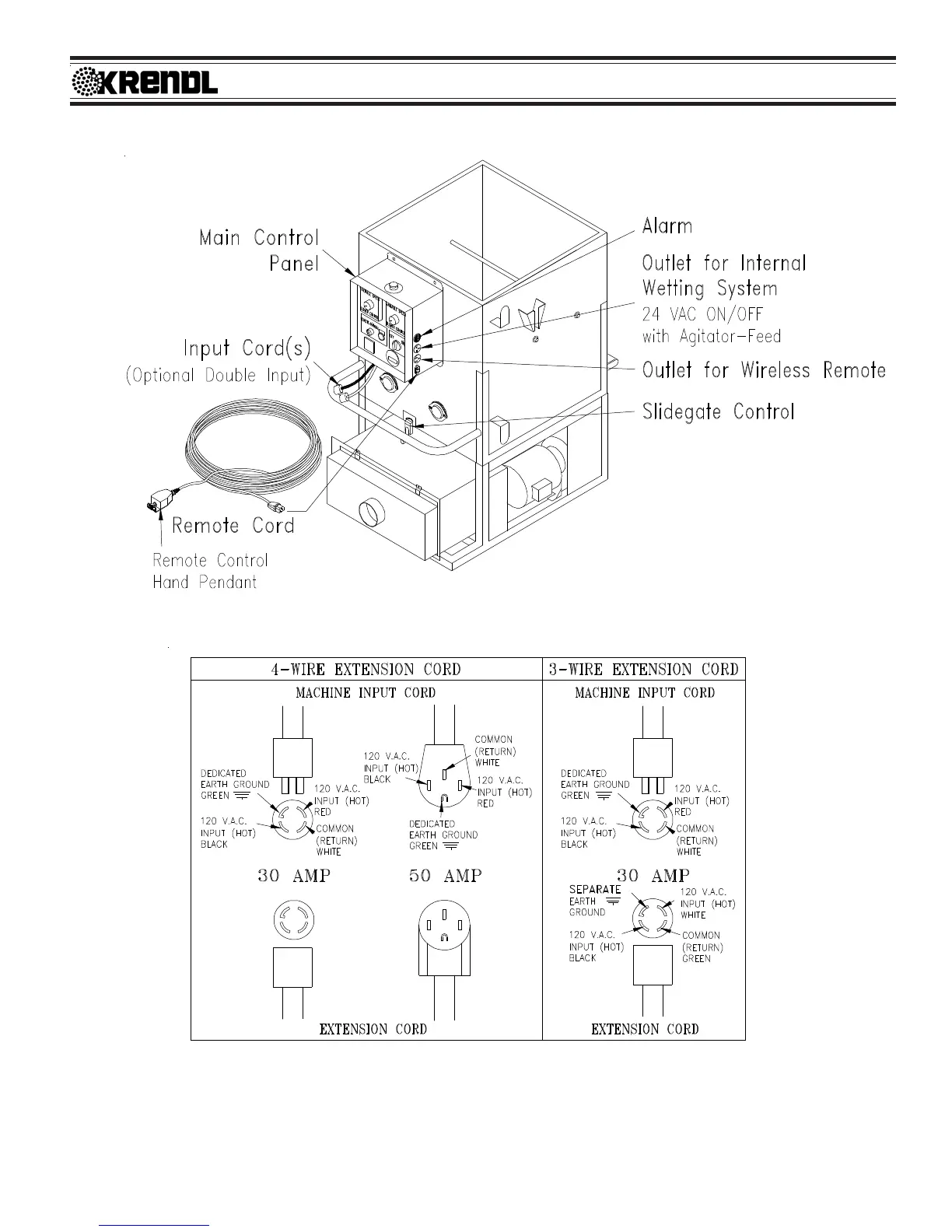

Electrical Hook-up for 240volt, 60hz.
IMPORTANT NOTE FOR 3-WIRE CORD:
A separate isolated ground is required that connects the frame of the machine to an earth ground
source. Serious injury or death may result if machine is not properly grounded. If you have any
further questions, consult a qualified electrician.
