Krendl 500 - Page 51

Rev. Date: 3/14/18 Page 48
MODEL #500
Description
Contactor/Relay, 120V Control (2)
Transformer, 4A
Breaker, 15AMP (2)
Breaker, 2AMP
Terminal Block, Small (3)
Terminal Block Large (5)
Connector, Cord, Liq.Tite,1/2" Blue
Connector, Cord, Liq.Tite,1/2" Straight
Locknut, Steel, Conduit, 1/2" (2)
Wire, 12-3 SJOW
Wire, 10-3 SJOW
Plug, NEMA #5-15P
Receptacle, (5269C)
Plug, NEMA #/L5-30P
Connector, NEMA #L5-30C
Connector, Conduit, 1/2" Straight (2)
Conduit, 1/2" Flexible
Hourmeter, 50/60Hz
Dinrail, 1 3/8", 5 1/2" Long
120 V.A.C. 60 Hz. ELECTRICAL UPGRADE PARTS LIST
(2) 3-STAGE BLOWERS (ELU11-109067)
Item#
46-2-1
46-2-2
46-2-3
46-2-4
46-2-5
46-2-6
46-2-7
46-2-8
46-2-9
46-2-10
46-2-11
46-2-12
46-2-13
46-2-14
46-2-15
46-2-16
46-2-17
46-2-18
46-2-19
46-2-20
46-2-21
46-2-22
46-2-23
46-2-24
Description
Box, Electrical 14” x 14” x 7”
Plate, Backing for Electric Box
Alarm for Pre-Alarm System, 24V
Receptacle, NEMA #6-15R
Receptacle, NEMA# 5-15R
Receptacle, RC Plug #509-1050 (remote)
Voltmeter, 0-300V
Dinrail, 1 3/8", 8 1/2" Long
Clamp, f/ 1 3/8" Din Rail (4)
Disconnect Switch Assembly
Alarm Mount (Not Shown)
Switch, 4-position Selector
Contact Block , Selector Switch
(white) #KA-1 (not shown)
Contact Block , Selector Switch
(red) #KA-3 (3) (not shown)
Decal, (Remote/Manual - 4-Position)
Start Legend Plate
Switch, Pushbutton On
Blower Control (120V, 60Hz.) (2)
Cover, Blower Control (2)
Knob, Blower Control (2)
Switch, Kill
Contactor, Kill Switch
Timer, 24 VAC
GE Contactor/Relay, 25 A (2)
Part#
543-M-31-R1
543-M-31-4
543-M-38
132-B
1544
543-M-2
1531-B
ELU07-C
151080-49
543-M-85
543-M-31-2
543-M-22
543-M-15
543-M-16
KMC-068
543-M-60
543-M-59
419-A
420-1
420-2
508-2
8075-1
ELU06-6
ELU11-5

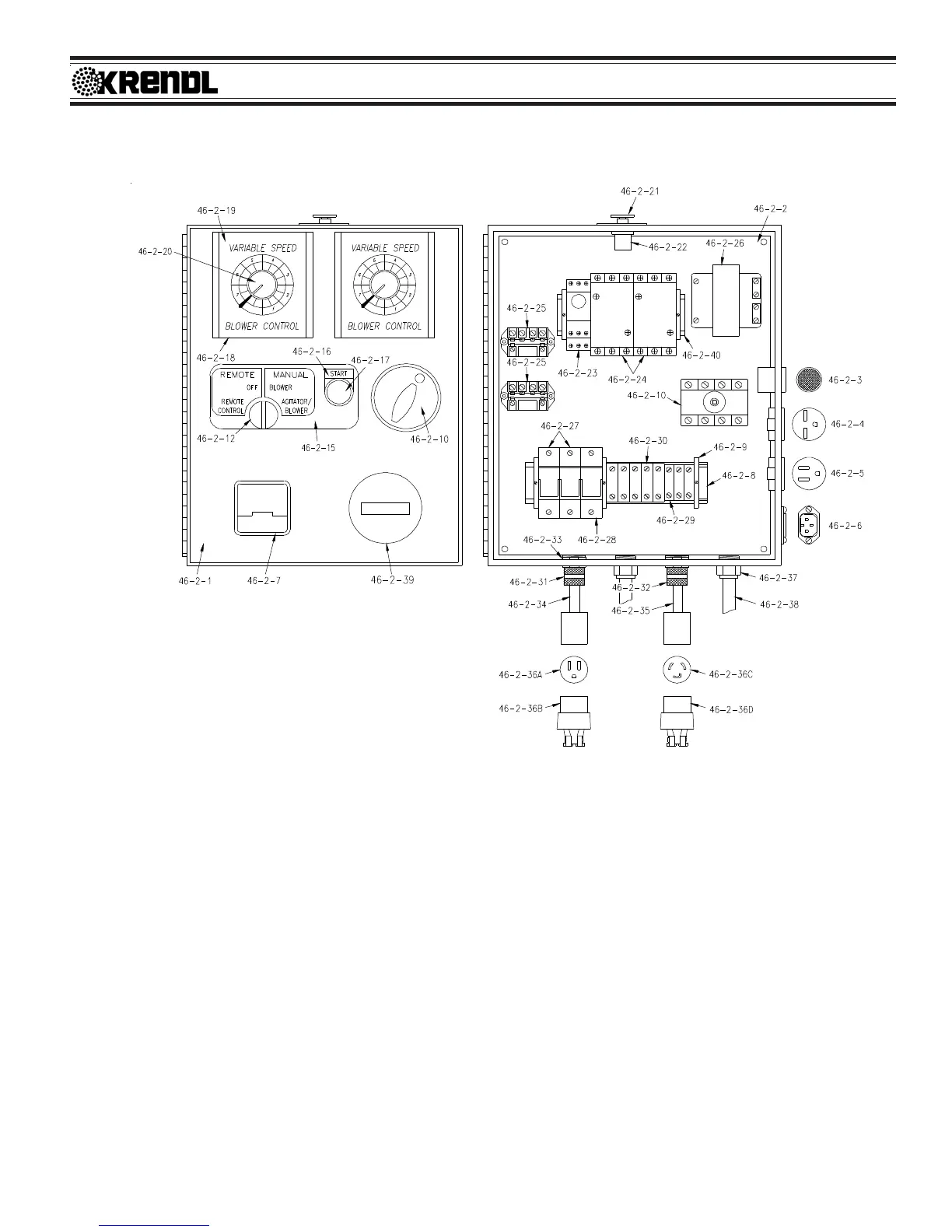

Electrical Exploded Parts List
Item#
46-2-25
46-2-26
46-2-27
46-2-28
46-2-29
46-2-30
46-2-31
46-2-32
46-2-33
46-2-34
46-2-35
46-2-36A
46-2-36B
46-2-36C
46-2-36D
46-2-37
46-2-38
46-2-39
46-2-40
Part#
ELU10-10
1530-D
BRKR-15
BRKR-2
151080-61
151080-62
543-M-17
543-M-23
391N-A-3
12-3 SJ
10-3 SJ
127
KS343
125
124
543-M-18
543-M-75
7-21
ELU10-A
