Krendl 500 - Page 54

Rev. Date: 3/14/18 Page 51
MODEL #500
Description
Contactor, Kill Switch
Timer, 24 VAC
GE Contactor / Relay 25 Amp
Contactor / Relay 120V Control
Transformer, 4A
Breaker, 15AMP (2)
Breaker, 2AMP
Terminal Block, Small (4)
Terminal Block Large (4)
Connector, Cord, Liq.Tite,1/2" Straight
Locknut, Steel, Conduit, 1/2"
Wire, 8-4 SO
Plug, NEMA #L14-30P
Connector, NEMA #L14-30C
Connector, Conduit, 1/2" Straight (2)
Conduit, 1/2" Flexible
Hourmeter, 50/60Hz
Dinrail, 1 3/8", 8 1/2" Long
Alarm Mount (Not Shown)
240 V.A.C. 60 Hz. ELECTRICAL UPGRADE PARTS LIST
(2) 3-STAGE BLOWERS (ELU10-109070)
Item#
46-5-1
46-5-2
46-5-3
46-5-4
46-5-5
46-5-6
46-5-7
46-5-8
46-5-9
46-5-10
46-5-11
46-5-12
46-5-13
46-5-14
46-5-15
46-5-16
46-5-17
46-5-18
46-5-19
46-5-20
46-5-21
Description
Box, Electrical 14” x 14” x 7”
Plate, Backing for Electric Box
Alarm for Pre-Alarm System, 24V
Receptacle, NEMA #6-15R
Receptacle, NEMA# 5-15R
Receptacle, RC Plug #509-1050 (remote)
Voltmeter, 0-300V
Dinrail, 1 3/8", 5 1/2" Long
Clamp, f/ 1 3/8" Din Rail (4)
Disconnect Switch Assembly
Alarm Mount (Not Shown)
Switch, 4-position Selector
Contact Block , Selector Switch
(white) #KA-1 (not shown)
Contact Block , Selector Switch
(red) #KA-3 (3) (not shown)
Decal, (Remote/Manual - 4-Position)
Start Legend Plate
Switch, Pushbutton On
Blower Control (120V, 60Hz.) (2)
Cover, Blower Control (2)
Knob, Blower Control (2)
Switch, Kill
Part#
543-M-31-R1
543-M-31-4
543-M-38
132-B
1544
543-M-2
1531-B
ELU10-A
151080-49
543-M-85
543-M-31-2
543-M-22
543-M-15
543-M-16
KMC-068
543-M-60
543-M-59
419-A
420-1
420-2
508-2

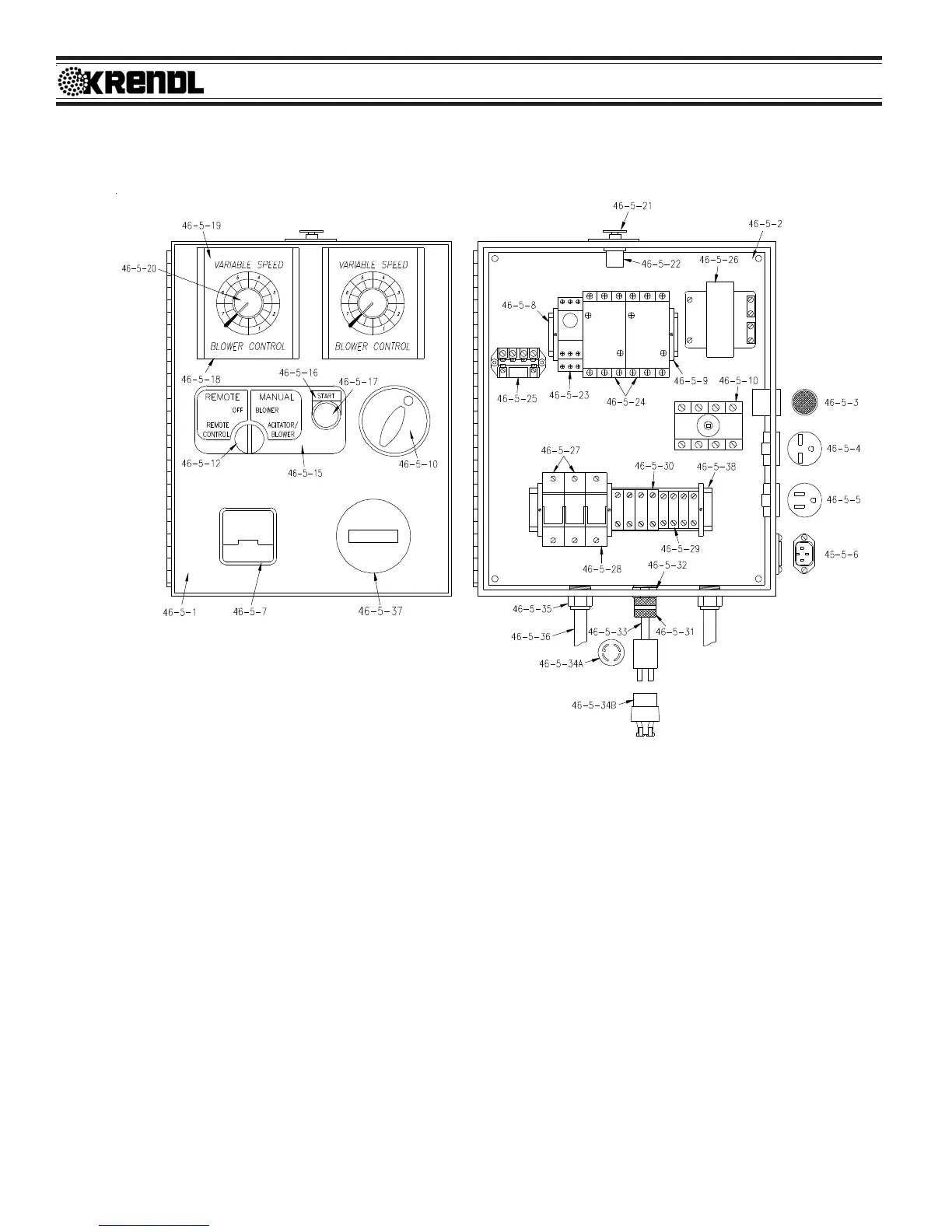

Electrical Exploded Parts List
Item#
46-5-22
46-5-23
46-5-24
46-5-25
46-5-26
46-5-27
46-5-28
46-5-29
46-5-30
46-5-31
46-5-32
46-5-33
46-5-34A
46-5-34B
46-5-35
46-5-36
46-5-37
46-5-38
46-5-39
Part#
8075-1
ELU06-6
ELU11-5
ELU10-10
1530-D
BRKR-15
BRKR-2
151080-61
151080-62
543-M-23
391N-A-3
8-4 SJ
109066-16
109066-17
543-M-18
543-M-75
7-21
ELU07-C
543-M-31-2
