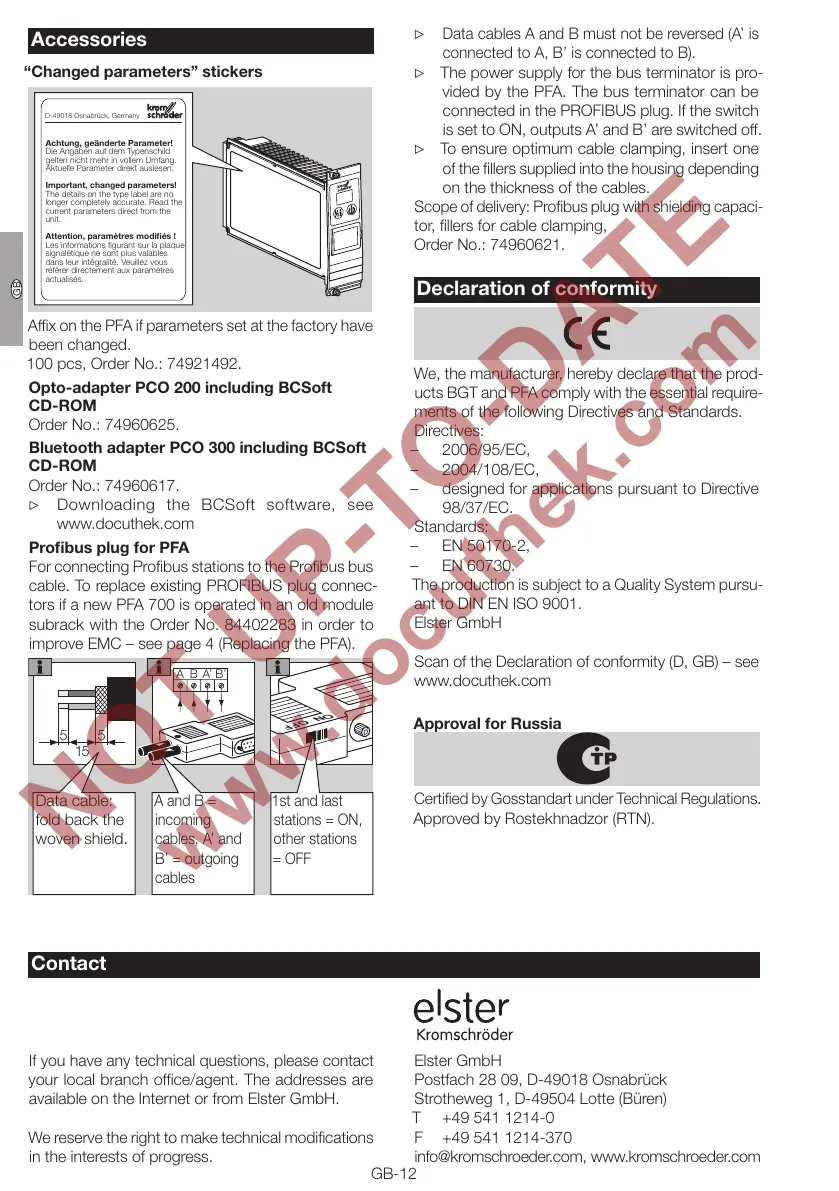

Accessories
“Changed parameters” stickers
D-49018 Osnabrück, Germany
Achtung, geänderte Parameter!
Die Angaben auf dem Typenschild
gelten nicht mehr in vollem Umfang.
Aktuelle Parameter direkt auslesen.
Important, changed parameters!
The details on the type label are no
longer completely accurate. Read the
current parameters direct from the
unit.
Attention, paramètres modifiés !
Les informations figurant sur la plaque
signalétique ne sont plus valables
dans leur intégralité. Veuillez vous
référer directement aux paramètres
actualisés.
Affix on the PFA if parameters set at the factory have
been changed.
100 pcs, Order No.: 74921492.
Opto-adapter PCO 00 including BCSoft
CD-ROM
Order No.: 74960625.
Bluetooth adapter PCO 00 including BCSoft
CD-ROM
Order No.: 74960617.
▷
Downloading the BCSoft software, see
www.docuthek.com
Profibus plug for PFA
For connecting Profibus stations to the Profibus bus
cable. To replace existing PROFIBUS plug connec-
tors if a new PFA700 is operated in an old module
subrack with the OrderNo.84402283 in order to
improve EMC– see page4 (Replacing the PFA).
5
5
15
A B A’ B’
ON OFF
Data cable:
fold back the
woven shield.
A and B =
incoming
cables, A’ and
B’ = outgoing
cables
1stand last
stations = ON,
other stations
= OFF
▷ Data cablesA and B must not be reversed (A’ is
connected toA, B’ is connected toB).
▷ The power supply for the bus terminator is pro-
vided by the PFA. The bus terminator can be
connected in the PROFIBUS plug. If the switch
is set toON, outputsA’ andB’ are switched off.
▷ To ensure optimum cable clamping, insert one
of the fillers supplied into the housing depending
on the thickness of the cables.
Scope of delivery: Profibus plug with shielding capaci-
tor, fillers for cable clamping,
Order No.: 74960621.
Declaration of conformity
We, the manufacturer, hereby declare that the prod-
ucts BGT and PFA comply with the essential require-
ments of the following Directives and Standards.
Directives:
– 2006/95/EC,
– 2004/108/EC,
– designed for applications pursuant to Directive
98/37/EC.
Standards:
– EN 50170-2,
– EN 60730.
The production is subject to a Quality System pursu-
ant to DIN EN ISO 9001.
Elster GmbH
Scan of the Declaration of conformity (D, GB) – see
www.docuthek.com
Approval for Russia
Certified by Gosstandart under Technical Regulations.
Approved by Rostekhnadzor (RTN).
