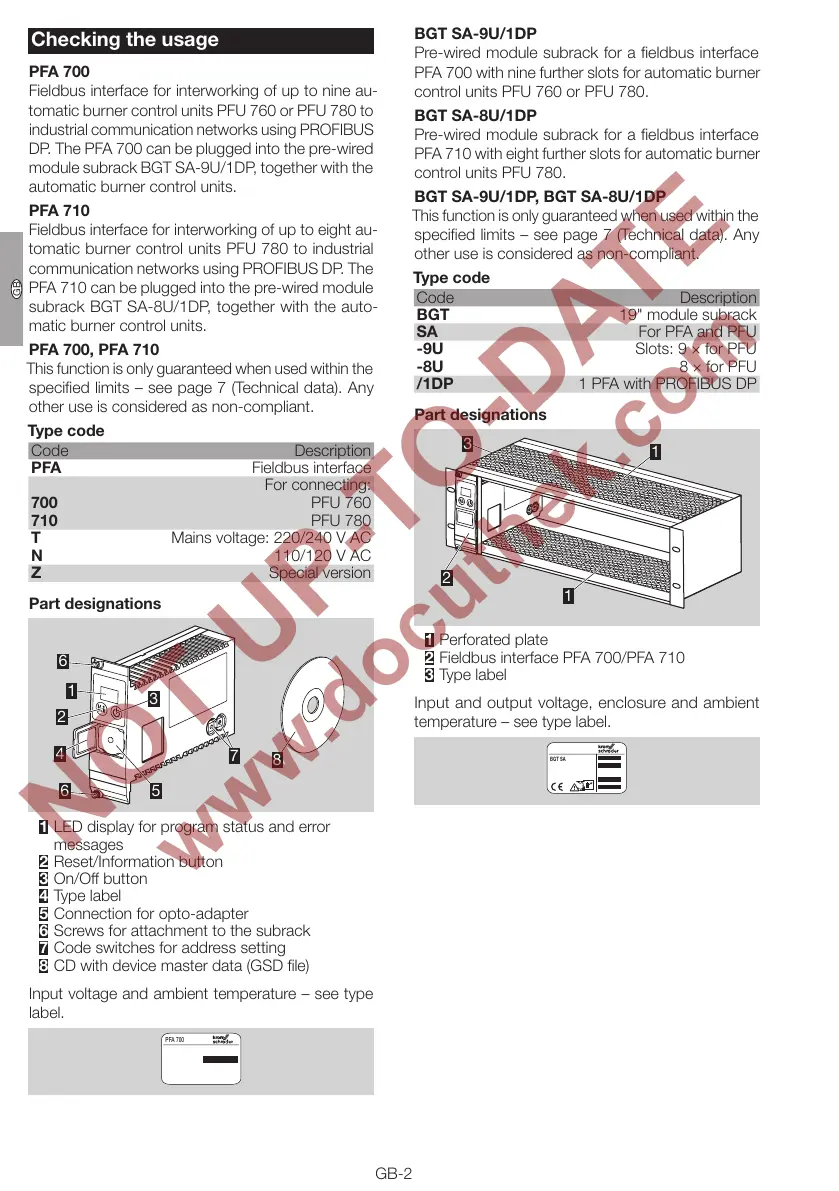

Checking the usage
PFA 700
Fieldbus interface for interworking of up to nine au-
tomatic burner control units PFU 760 or PFU 780 to
industrial communication networks using PROFIBUS
DP. The PFA 700 can be plugged into the pre-wired
module subrack BGT SA-9U/1DP, together with the
automatic burner control units.
PFA 70
Fieldbus interface for interworking of up to eight au-
tomatic burner control units PFU 780 to industrial
communication networks using PROFIBUS DP. The
PFA 710 can be plugged into the pre-wired module
subrack BGT SA-8U/1DP, together with the auto-
matic burner control units.
PFA 700, PFA 70
This function is only guaranteed when used within the
specified limits – see page 7 (Technical data). Any
other use is considered as non-compliant.
Type code
Code Description
PFA Fieldbus interface
700
70
For connecting:
PFU 760
PFU 780
T
N
Mains voltage: 220/240 V AC
110/120 V AC
Z Special version
Part designations
2
6
1
3
4
6
7
5
8
 LED display for program status and error
messages
 Reset/Information button
 On/Off button
4 Type label
5 Connection for opto-adapter
6 Screws for attachment to the subrack
7 Code switches for address setting
8 CD with device master data (GSD file)
Input voltage and ambient temperature – see type
label.
PFA 700
BGT SA-9U/DP
Pre-wired module subrack for a fieldbus interface
PFA 700 with nine further slots for automatic burner
control units PFU 760 or PFU 780.
BGT SA-8U/DP
Pre-wired module subrack for a fieldbus interface
PFA 710 with eight further slots for automatic burner
control units PFU 780.
BGT SA-9U/DP, BGT SA-8U/DP
This function is only guaranteed when used within the
specified limits – see page 7 (Technical data). Any
other use is considered as non-compliant.
Type code
Code Description
BGT 19" module subrack
SA For PFA and PFU
-9U
-8U
Slots: 9 × for PFU
8 × for PFU
/DP 1 PFA with PROFIBUS DP
Part designations
2
1
1
3
 Perforated plate
 Fieldbus interface PFA 700/PFA 710
 Type label
Input and output voltage, enclosure and ambient
temperature – see type label.
BGT SA
