13.20 Setting the Drive Chains
Pos: 52.107 /BA /Sicherheit/7. Ge fahrenhinweise alt/Warnung - Einzugsgefa hr der Antriebs ketten @ 34\ mod_1256045314 627_78.doc x @ 325616 @ @ 1
WARNING! – Danger of entanglement in the drive chains!
Effect: Risk of injury caused by entanglement of loose long hair or loose clothing.
• After working on the chains, always reassemble or close the safety devices.
Pos: 52.108 /BA /Wartung/Rundb allenpresse/Pr üfen der Antriebs ketten CF/CV @ 75\mo d_1309434821071 _78.docx @ 6 63400 @ @ 1
All drive chains are supplied with oil by a central chain lubrication system.
As the lubricating oil lines are not highly pressurised, it may occur that they jam. For this reason
the lubricating oil lines must be checked for proper functionality daily before using.
The mode of operation of the central chain lubrication system is explained in the Chapter
entitled “Settings”.
Pos: 52.109 /Übers chriften/Übersc hriften 3/P-T /R/Rollbodena ntrieb_Antriebs kettenspannung @ 468\mod _1469689346 483_78.docx @ 3 159281 @ 3 @ 1
13.20.1 Floor Conveyor Drive
Pos: 52.110 /BA /Wartung/Rundb allenpresse/Ket ten spannen/S pannen Ketten vorderer Rollb odenantrieb_Com prF_Einleitung @ 337\m od_14302883699 33_78.docx @ 2560923 @ @ 1
Comprima F: The bale formation conveyor drive (1) is located on the left-hand machine side.
Pos: 52.111 /BA /Wartung/Rundb allenpresse/Ket ten spannen/S pannen Ketten vorderer Rollb odenantrieb_Com prV_Einleitung @ 337\ mod_1430288279 814_78.doc x @ 2560892 @ @ 1
Comprima V: The front floor conveyor drive (1) is located on the left side of the machine.
Pos: 52.112 /BA /Wartung/Rundb allenpresse/Ket ten spannen/S pannen Ketten vorderer Rollb odenantrieb_Com prF_V_CF_CV @ 337\m od_1430288205 492_78.docx @ 2560861 @ @ 1

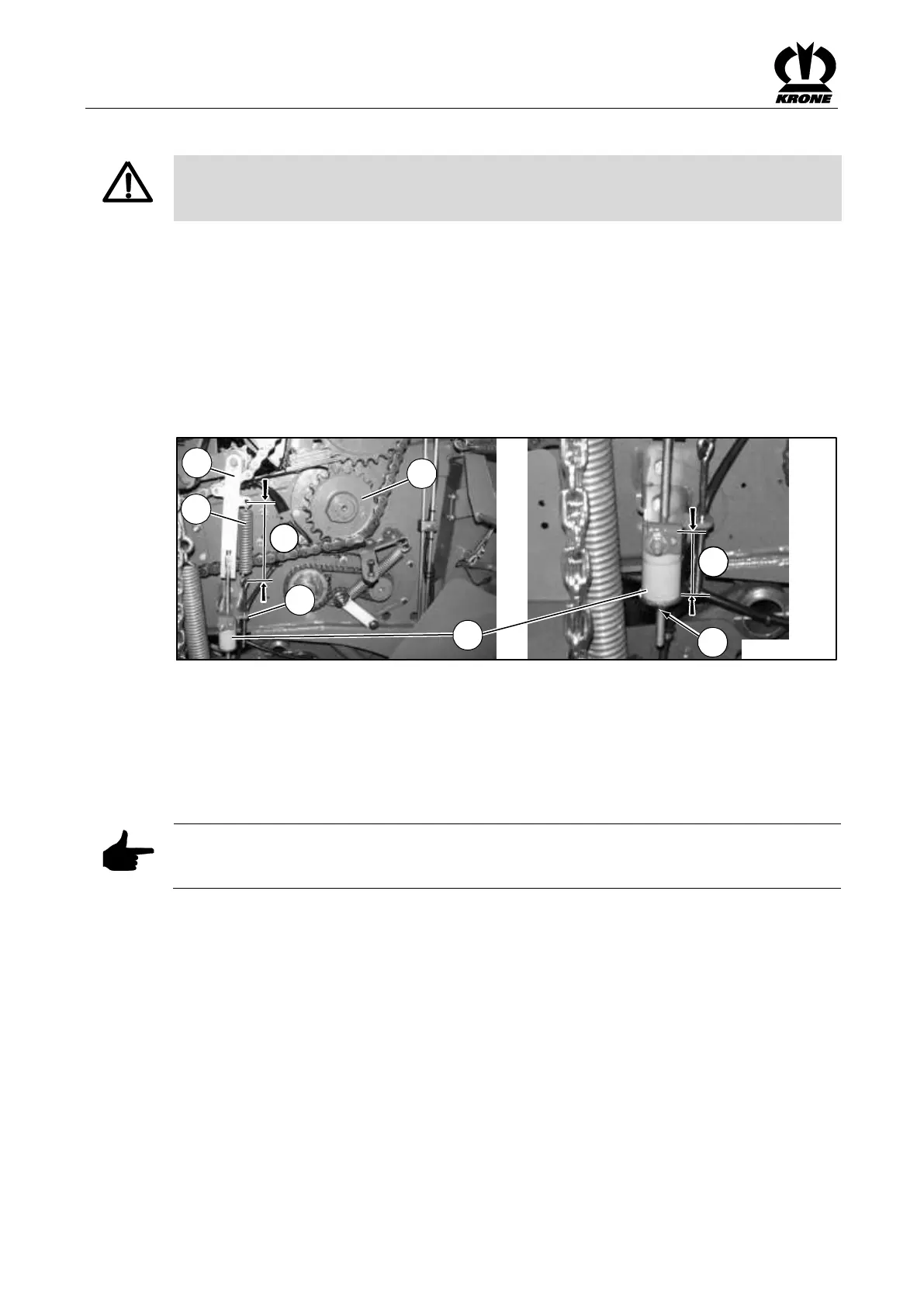

RPN00053_2
b
a
6
2
1
3
5
4
Fig.
204
Check the Chain Tension:
• The chain is tightened by the tension spring (2). The length of the spring when tightened
must be a = 220 mm.
Correct the Chain Tension:
• Turn the nut (4) on the threaded rod to adjust the stop pad (3) (used only as a stop) to a
dimension b between 105 - 110 mm. Select dimension B in that way that a play between
support (5) and stop pad (3) is available.
Pos: 52.113 /BA /Wartung/Rundb allenpresse/Hin weis Federsp annung korrig ieren CF/CV @ 75\ mod_130 9437703236_78.d ocx @ 6634 84 @ @ 1
Note
In case the spring tension is insufficient, the flat bar (6) can be turned and the other eye can be
used.
