Special equipment
100
Pos: 39.21 /BA/Sonder ausstatung/EasyCu t / AM Mähwerke/Querförder er/Einstellung Transportband @ 10\mod_1222 333861895_78.doc x @ 140480 @ 2 @ 1
14.8 Setting Conveyor Belt
The conveyor belt must be tensioned to an expansion of approx. 0.6%.
4
EC-202-0
3

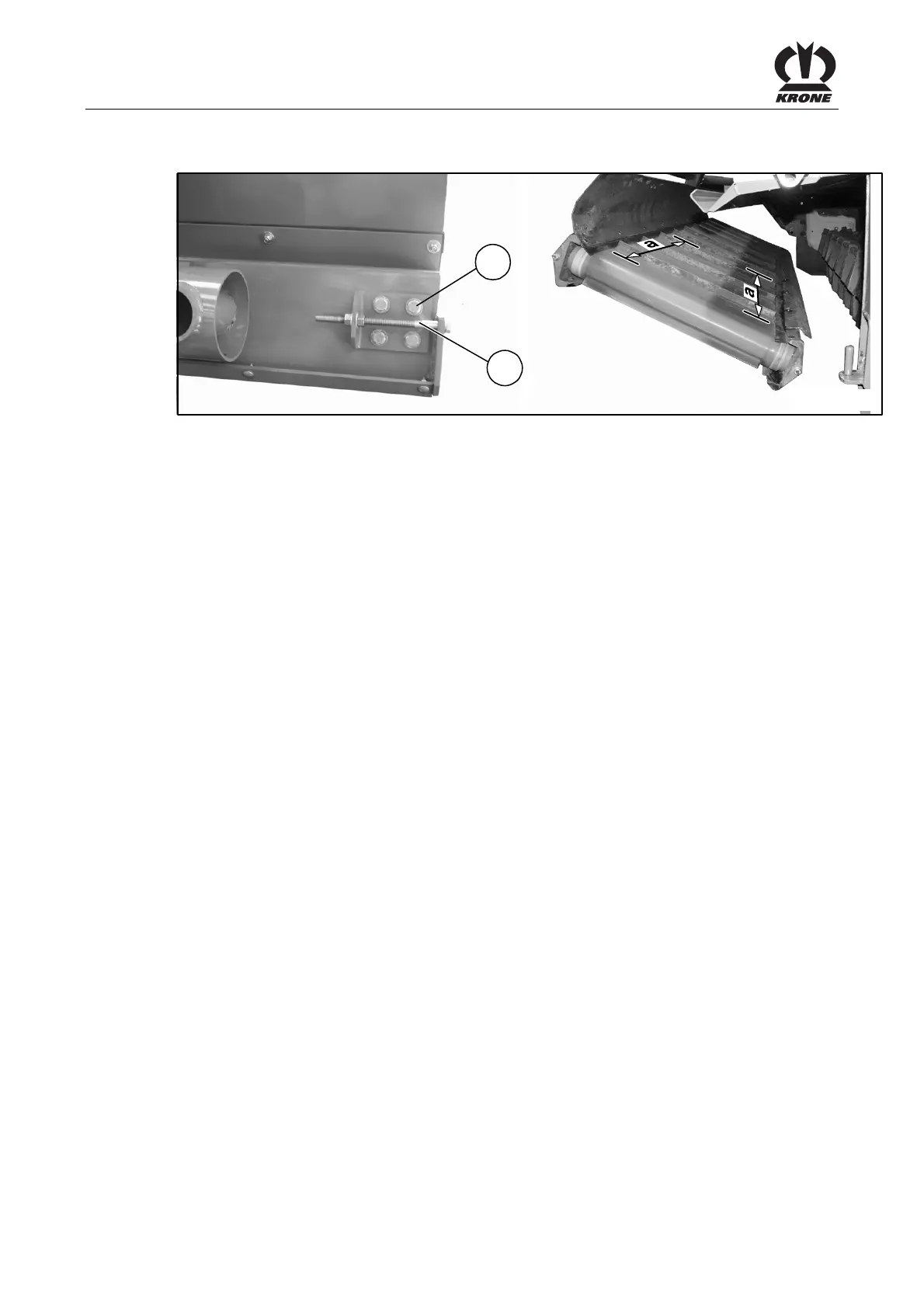

Figure. 67
To do this:
• Loosen the bearing bolts (4) on the right-hand and left-hand sides of the conveyor belt.
• Use the adjustment screws (3) on the right-hand and left-hand sides to relieve the conveyor
belt.
• Mark the conveyor belt at a distance of a = 1000 mm.
• Use the adjustment screws (3) to tighten the conveyor belt until the marks have a dimension
of a = 1006 mm.
• Tighten the bearing bolts (4) on the right and left (see in Maintenance chapter "Tightening
Torques").
