13.6 Oil level check and oil change on the cutter bar
Pos: 137.2 /Übersc hriften/Überschri ften 3/K-O/Ölwechsel @ 0\m od_1197021941955_7 8.docx @ 16139 @ 1 @ 1
13.6.1 Oil change
Pos: 137.3 /BA/W artung/Mähwerke/Hinweis Ei n Ölwechsel am Mähholm is t nicht erforderlic h. @ 68\mod_1304577391388_7 8.docx @ 628708 @ @ 1
Note
No oil change is required on the cutter bar.
Pos: 137.4 /Übersc hriften/Überschri ften 3/K-O/Ölkontrol le @ 0\mod_119702190819 0_78.docx @ 16120 @ 1 @ 1
13.6.2 Checking the oil level
Pos: 137.5 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Schnell rotier ende Messerteller/ Messertrommel_2 @ 0\mod_1 197022569252_78.doc x @ 16165 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
Lower guards. Nobody should be in the danger zone around the machine.
Pos: 137.6 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Schnell rotier ende Messerteller/ Messertrommeln_1 @ 0\ mod_1197017696736_78.doc x @ 16001 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete
stop.
Pos: 137.7 /BA/W artung/Mähwerke/Ölkontr olle Mähholm Easycut EC 280/ 320 @ 9\mod_122104799248 1_78.docx @ 131607 @ @ 1
EC-0-003

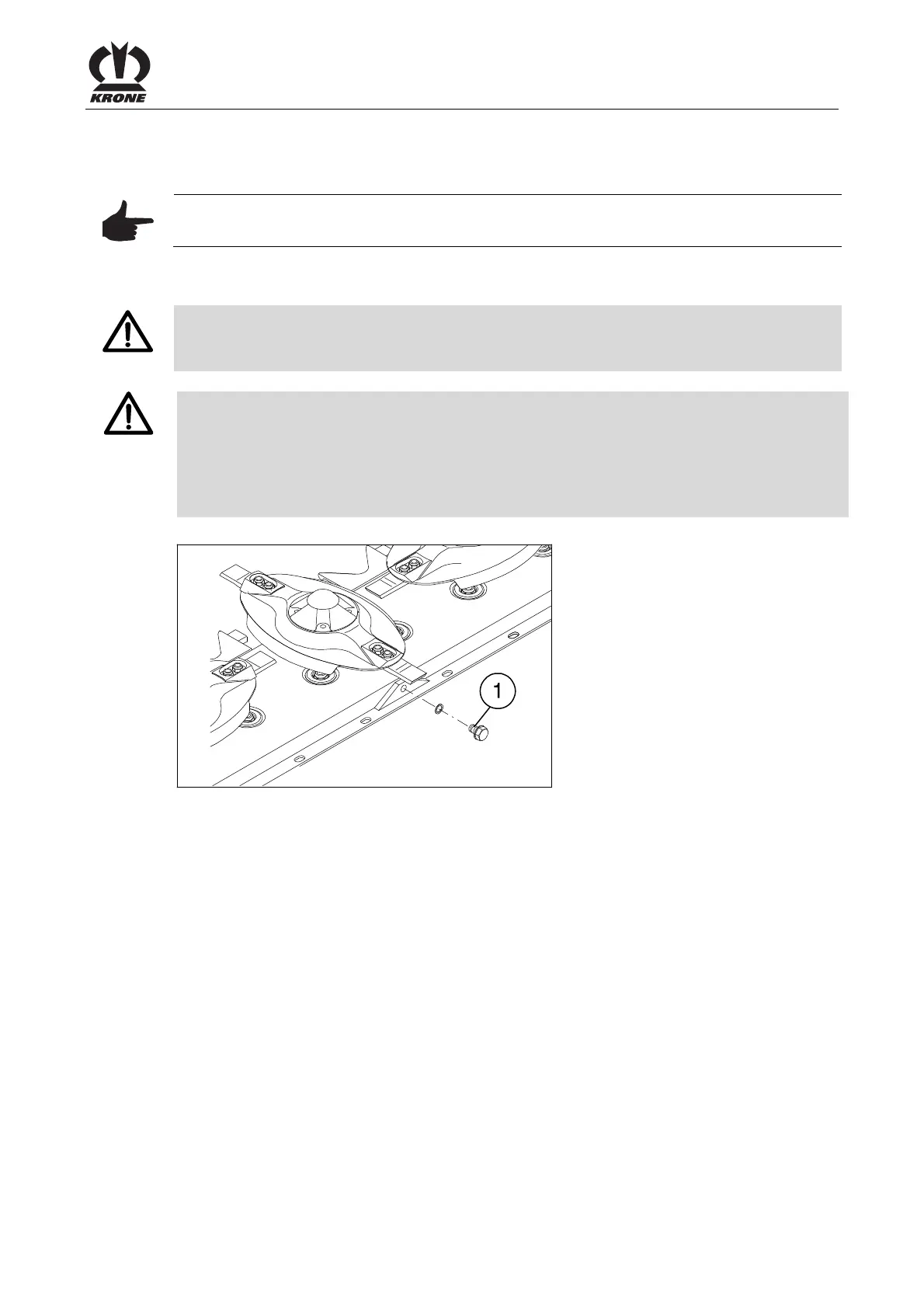

Fig. 47
• Allow the machine to run briefly.
• Wait until cutting discs/blade drums have come to a complete stop.
• Move the cutter bar into transport position.
Check the oil level before every use
• Remove the oil level inspection screw (1) from the cutter bar.
• The oil level must be up to the bore hole. If required, top up the oil (SAE 90)
• Screw in the oil level inspection screw (1) again and tighten securely.
