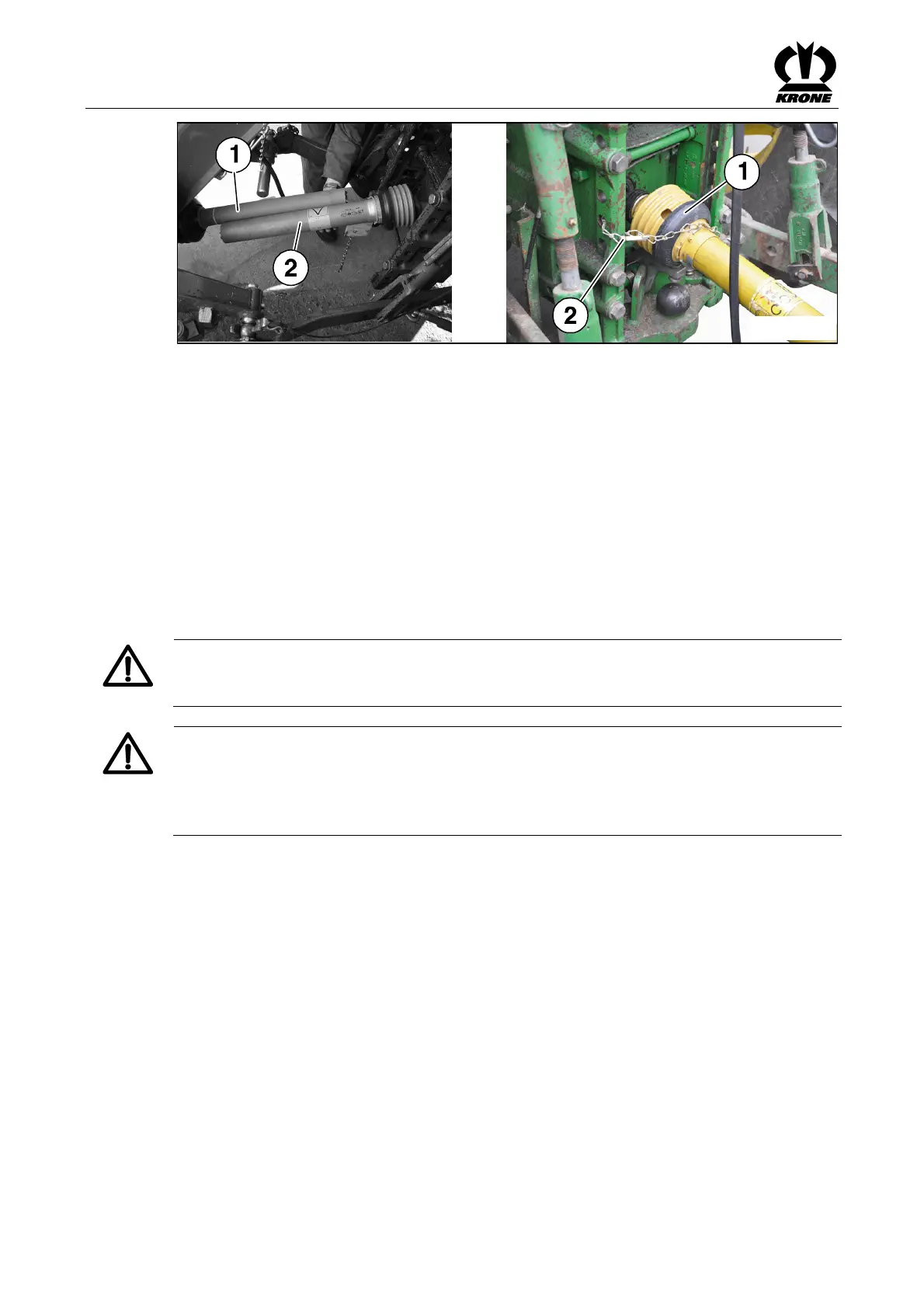

The length of the PTO shaft (1) must be adjusted.
• Disassemble the PTO shaft.
• Install each half (1) and (2) on the tractor and machine side respectively.
• Check the special section tubes and guard tubes.
• Shorten the special section tubes and guard tubes to such an extent that the PTO shaft
can still be pushed together by at least 150 mm in its shortest operating position. (This
clearance is required to be able to push together the PTO shaft when the pole protection
mechanism is triggered.)
• Coverage of at least 200 mm (shift length) must be ensured for the special section
tubes and guard tubes in every operating position.
• For additional operating instructions refer to the operating instructions of the PTO shaft
manufacturer.
Pos: 14.23 /BA/Sic herheit/Gele nkwelle/Achtung - Sc hwenkbereich/Fr eiraum über prüfen @ 9\ mod_1220536308 930_78.doc x@ 1 26898 @ 2 @ 1
Caution! - Swivel range of the PTO shaft
Effect: Damage to the tractor or the machine
• Check the swivel range and clearance of the PTO shaft!
Pos: 14.24 /BA/I nbetriebnahme/ Erstinbetriebna hme/Gelenkwelle/ Traktorwechsel Gelenkwellenläng e beachten @ 6\mod_12149969 38591_78.doc x@ 97742 @ 3 @ 1
Caution! - Changing the tractor
Effect: Damage to the machine
When using the machine for the first time and whenever changing the tractor Check PTO shaft
for the correct length. If the length of the PTO shaft does not match the tractor, always observe
the chapter entitled "Adjusting the length of the PTO shaft".
