Commissioning
23
Pos: 14.15 /Übersc hriften/Überschrif ten 2/F-J/G elenkwelle @ 0\mod_11997818 79794_78.doc x@ 34542 @ 22 @ 1
5.4 PTO shaft
Pos: 14.16 /Übersc hriften/Überschrif ten 3/K-O/L ängenanpass ung @ 1\mod_12 01687632810 _78.docx @ 5358 9 @ 3 @ 1
5.4.1 Length adjustment
Pos: 14.17 /BA/Sic herheit/Gefahre nhinweise/Mä hwerke/Gefahr - U nbeabsichtig tes Abkuppeln angebaute @ 9\ mod_1220537942 289_78.doc x @1 26969 @ 22 @ 1
Danger! - Inadvertent uncoupling of the machine during road travel or work.
Effect: Danger to life, serious injuries or serious damage to the machine.
• Use extreme caution when attaching or detaching devices to or from the tractor! The
accident prevention regulations must be complied with absolutely.
• The lower suspension arms on the tractor must be fixed in position
with the retaining chains or bars to prevent the machine from swivelling out during
transport or work. If the lower suspension arms (1) are equipped with catch hooks, the
following items must be taken into consideration:
Especially in the headland position, high forces develop in the lower suspension arm bolts (3)
that act upwards in the left-hand hook.
For this reason, the catch hooks must be in a flawless condition.
Additionally, the catch hooks must be secured in the provided locking hole (4) against
unwanted opening after the machine has been connected to the tractor.
Pos: 14.18 /BA/I nbetriebnahme/ Erstinbetriebna hme/EasyCut/A nkuppeln Bild EC 320 - 1@ 58\mod_129 6650067985_ 78.docx @ 55258 1 @ 3 @ 1
EC-328-0
1
2
3
4
1

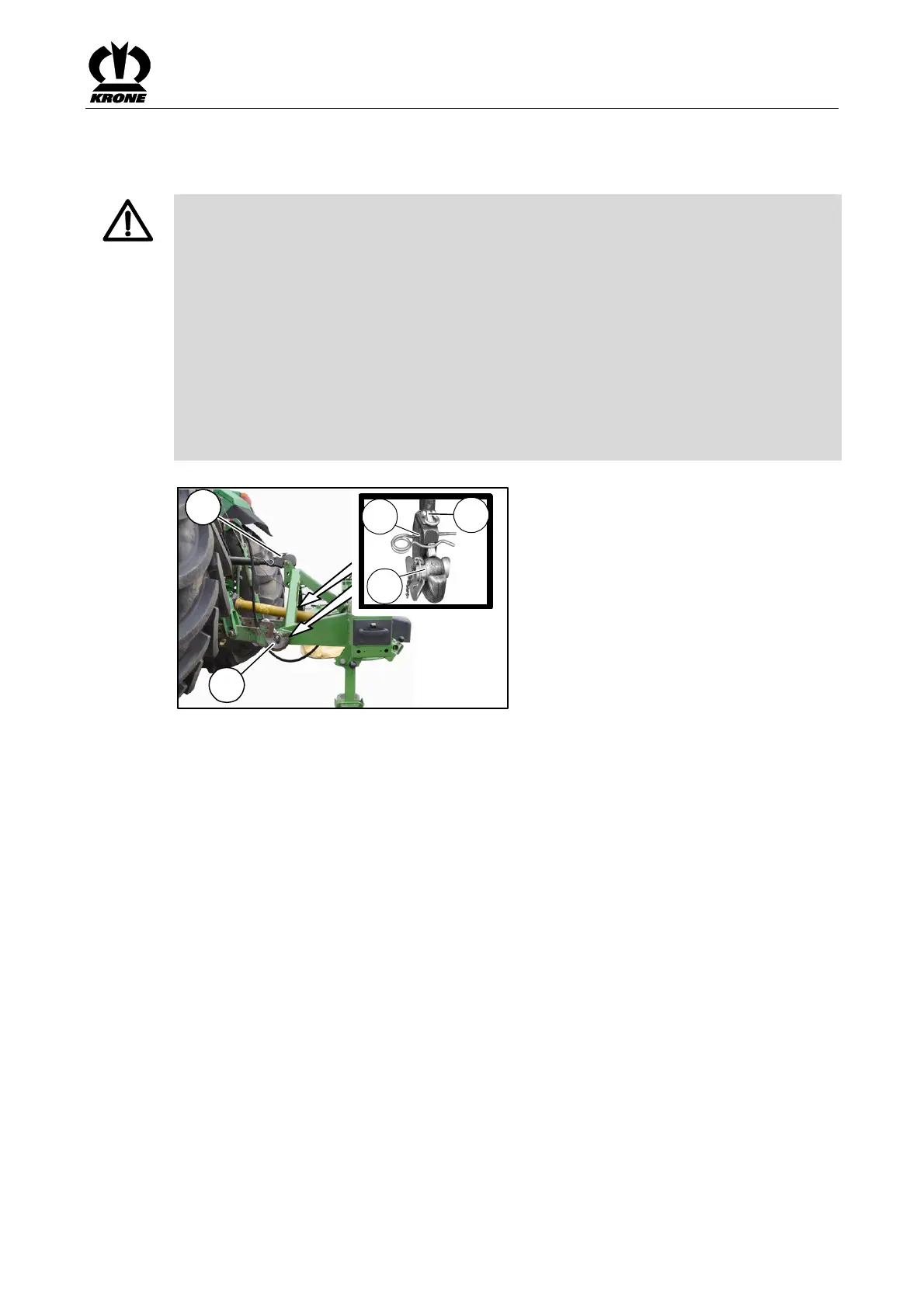

Fig. 4
Pos: 14.19 /BA/I nbetriebnahme/ Erstinbetriebna hme/EasyCut/A nkuppeln Text EC 280/320 (280/32 0CV-Q) @ 9\ mod_1220537 421383_78.docx @ 126948 @ @ 1
• Attach the machine onto the lower suspension arm (1) of the tractor.
• Hook the top link (2) into the upper hole of the 3-point support.
