10.8 Mower Drive Gearbox
Pos: 24.29.2 /B A/Wartung/Ölkontr olle_Wechsel/M ähwerke/Bild M äherantriebsg etriebe EC 280/ 320 @ 9\mod_ 12210459352 46_78.docx @ 131519 @ 3 @ 1

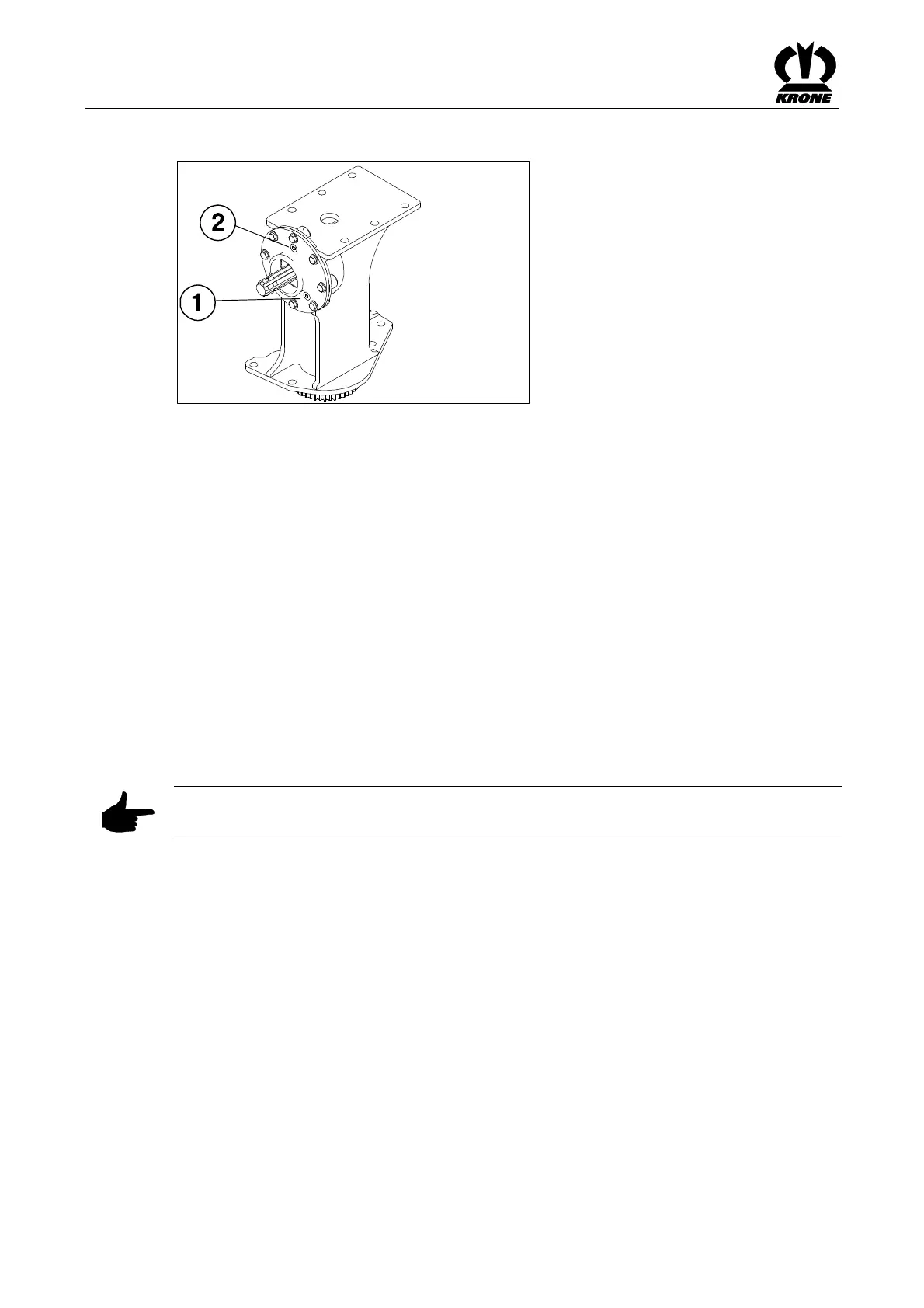

EC-170-1
Figure 26
Pos: 24.29.3 /B A/Wartung/Ölkontr olle_Wechsel/Öl kontrolle_ALT Ölkontrolle SAE 90@ 0\mod_1197 008973815_78. docx @ 15649 @ @ 1
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 24.29.4 /B A/Wartung/Ölkontr olle_Wechsel/Öl wechsel_A LTÖlwechsel Versi on5 @ 9\mo d_122104705204 3_78.docx @ 1 31562 @ 2 @ 1
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the oil drain plug (1)
• Collect the used oil in a suitable drip pan
• Screw in the oil drain plug (1)
• Top up the oil (2) (oil level up to hole (1))
Pos: 24.29.5 /B A/Wartung/Ölkontr olle_Wechsel/Ölq ualität /Öl menge: siehe Ka pitel @ 0\mod_11 97007859486 _78.docx @ 15531 @ @ 1
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 24.29.6 /B A/Wartung/Ölkontr olle_Wechsel/Alt öl ordnungsg emäß entsorge n @ 0\mod_ 1197008117002_7 8.docx @ 155 50 @ @ 1
Note
The used oil must be disposed of correctly
