Driving and Transport
33
Pos: 18.7 /BA/Fa hren und Transp ort/EasyCut/F ahren-Transport Bild EC 320 Neue G eneration @ 58\mod_1296661 070926_78.docx @ 553049 @ @ 1
2 3
EC-334-0
1
4

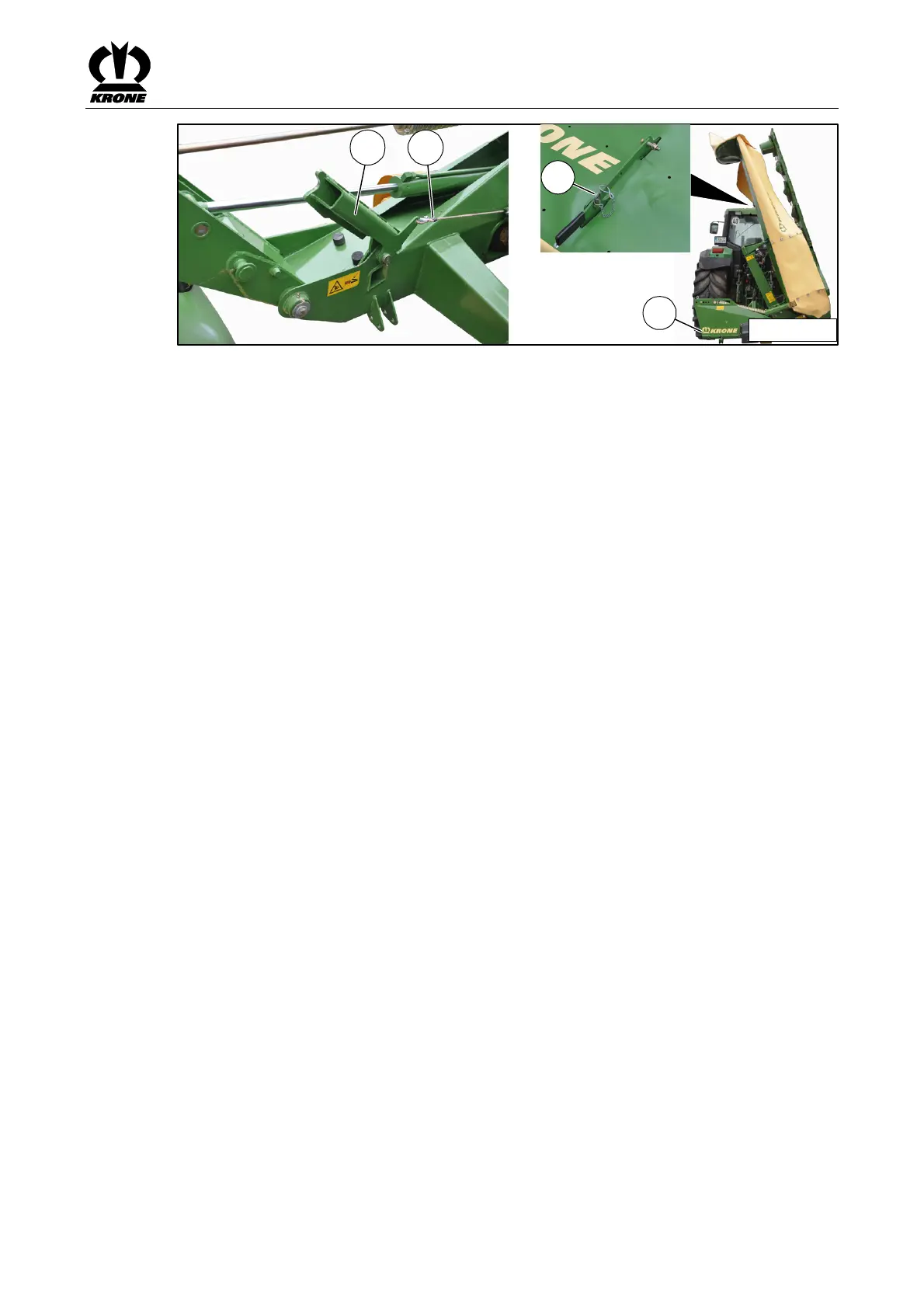

Fig. 12
Pos: 18.8 /BA/Fa hren und Transp ort/EasyCut/F ahren/Transport Te xt EC R 280 /320 @ 90\mod_ 13237701386 96_78.docx @ 773402 @ @ 1
During transport / road travel the disc mower must be folded up.
To do this:
Swivel the parking support (1) into transport position and lock it into position with the bolt
(see chapter on start-up entitled "Swivelling the parking support into transport position").
• To release the locking mechanism (2), pull the actuating rope (3) up from the tractor
• Actuate the control valve for the hydraulic cylinder on the tractor. The mowing unit lifts up
into the transport position
• Lower the locking (2) and make certain that the outrigger is locked by the locking
Make sure that the flap protection is locked into protective position and secured by the spring
cotter (4).
