Krone EasyCut R 320 User Manual

Operation
41
Pos: 20.48 /BA/Be dienung /Eas yCut/Gelenkwell e/Gelenkwelle / H ydraulikschlauc h abkuppel n Bild EC 320 -1@ 58\mod_12967 16995221_78.d ocx @ 553338 @ @ 1
EC-352-0
4
3

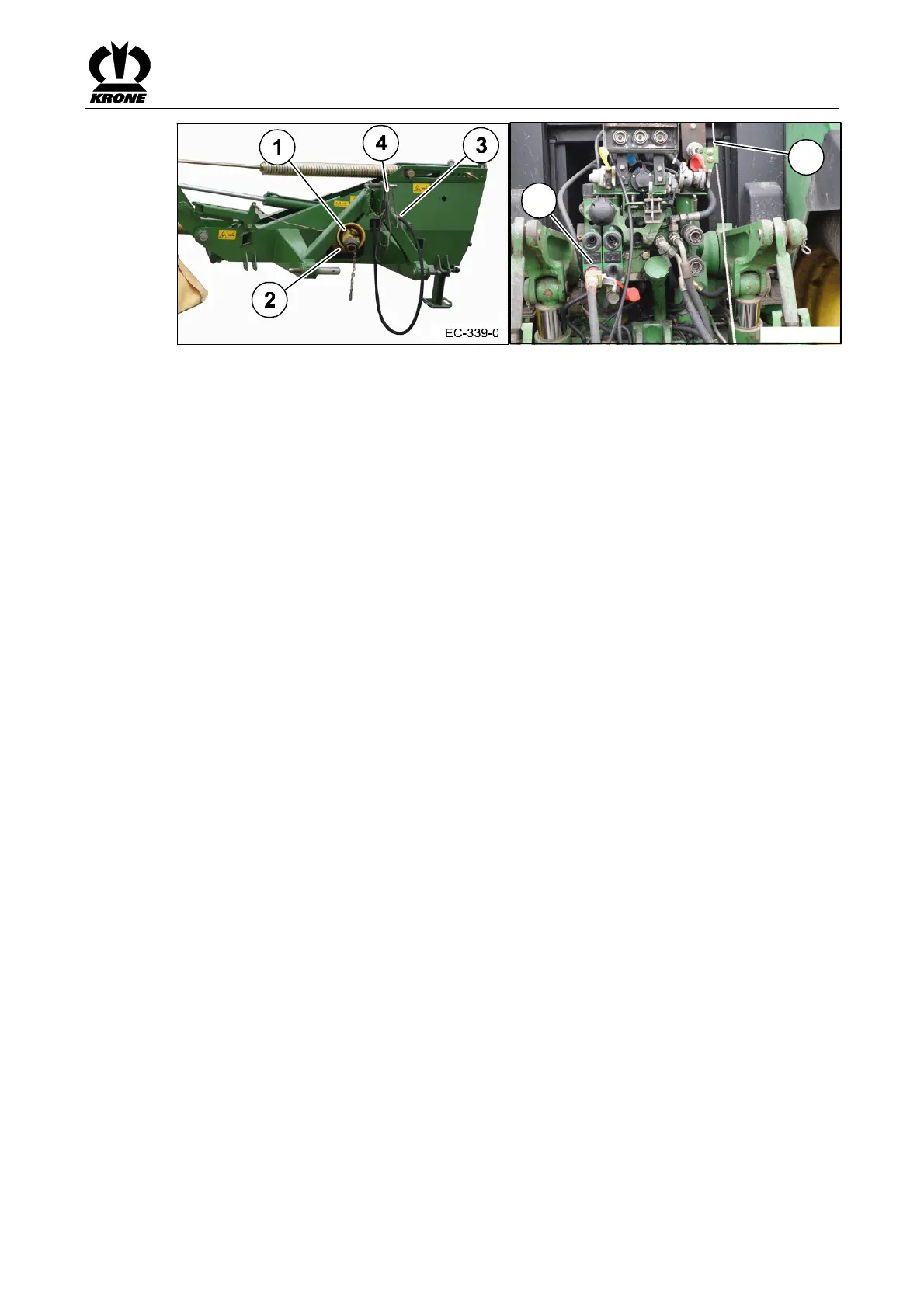

Fig.20
Pos: 20.49 /BA/Be dienung /Eas yCut/Gelenkwell e/Gelenkwelle / H ydraulikschlauc h abkuppel nT ext EC 280/32 0@ 9\mod_1220 884945345_7 8.docx @ 129009 @ @ 1
• Remove the PTO shaft (1) from the tractor and place it onto the storage surface (2).
• Disconnect the hydraulic hose (3) from the tractor (set the dust cap in place).
• Remove the synthetic rope (4) from the tractor.
• Release the upper link and pull out the bolt on the machine side or unhook the upper link.
• Pull off the lower suspension arm / release the catch hook.
