Additional Scope
9
Pos: 41 /BA/Inbetriebnah me/Vorsätze/Ankuppe ln/An- Abbau Bild T4 Hydrauliklei tungen EASYFLOW @ 498\mod_1490881 199868_78.docx @ 3421550 @ @ 1
EFL000112
2
1
Fig. 8
Pos: 42 /BA/Inbetri ebnahme/Vorsätze/Anku ppeln/Ankuppeln nur Hydraulikschläuc he @ 27\mod_1246270382818_ 78.docx @ 266057 @ @ 1

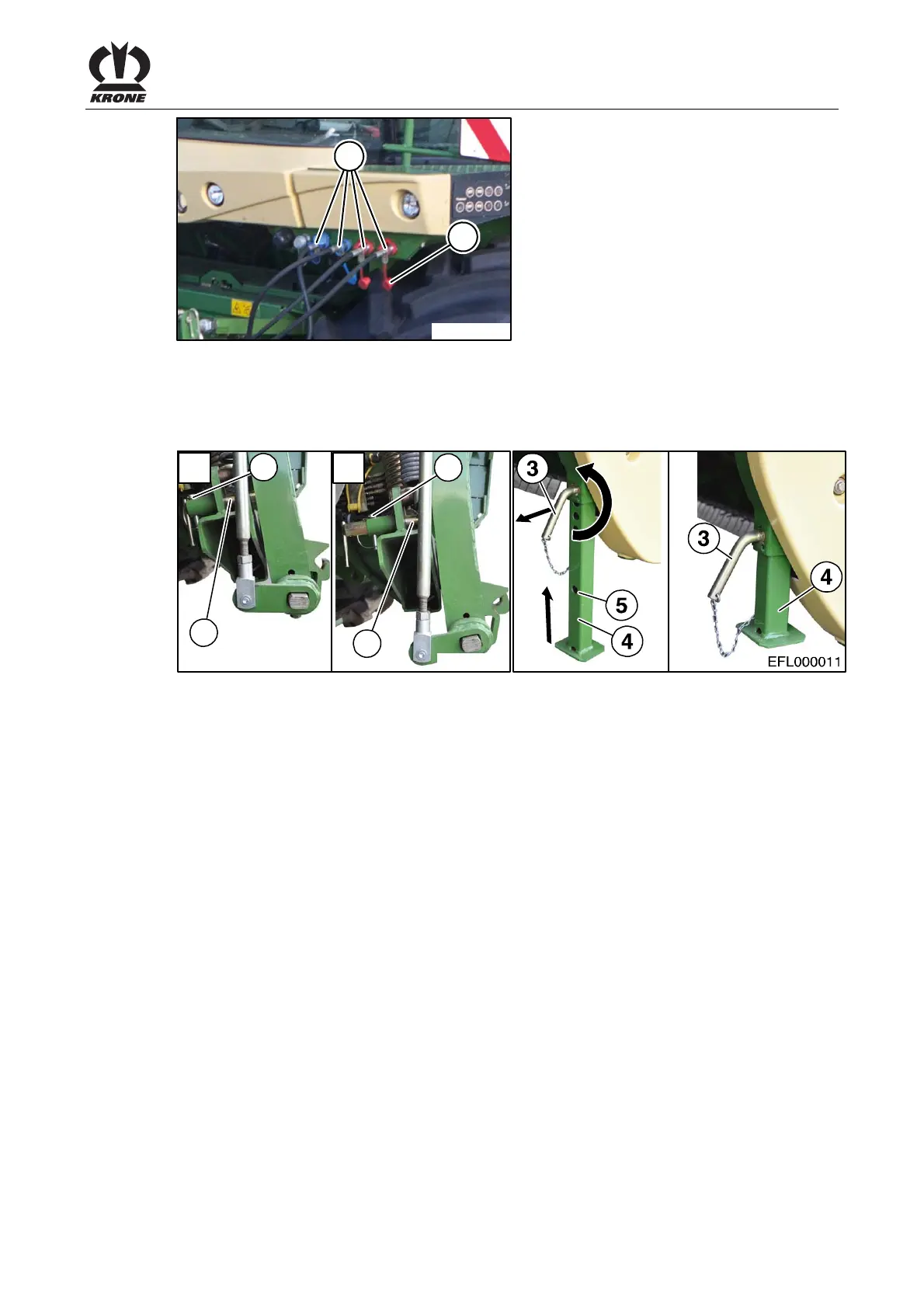

• Connect the hydraulic hoses (1) to the plug-in connections provided for this purpose on the
forage harvester.
• Close the dust caps (2)
Pos: 43 /BA/Inbetri ebnahme/Vorsätze/Anku ppeln/Ankuppeln B ild T3 EASYFLOW 300 @ 67\mod_130267 5541005_78.doc x @ 619277 @ @ 1
1
1
EFL000010
2 2
I II
Fig. 9
Pos: 44 /BA/Inbetriebnah me/Vorsätze/Ankuppe ln/Ankuppeln T3 Text EASYFL OW 300 @ 67\mod_13027611986 91_78.docx @ 620623 @ @ 1
• Unlock the pendulum frame, move the locking pin (1) from position I (locked) to position II
(unlocked) and secure with spring cotter pin (2)
• On both sides swivel the socket pins (3) of the parking supports (4) 180° upwards and pull
them out
• Push parking supports (4) upwards and secure them in the bore (5) with socket pin (3).
Lock socket pin (3) by turning it 180° downwards
Pos: 45 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
