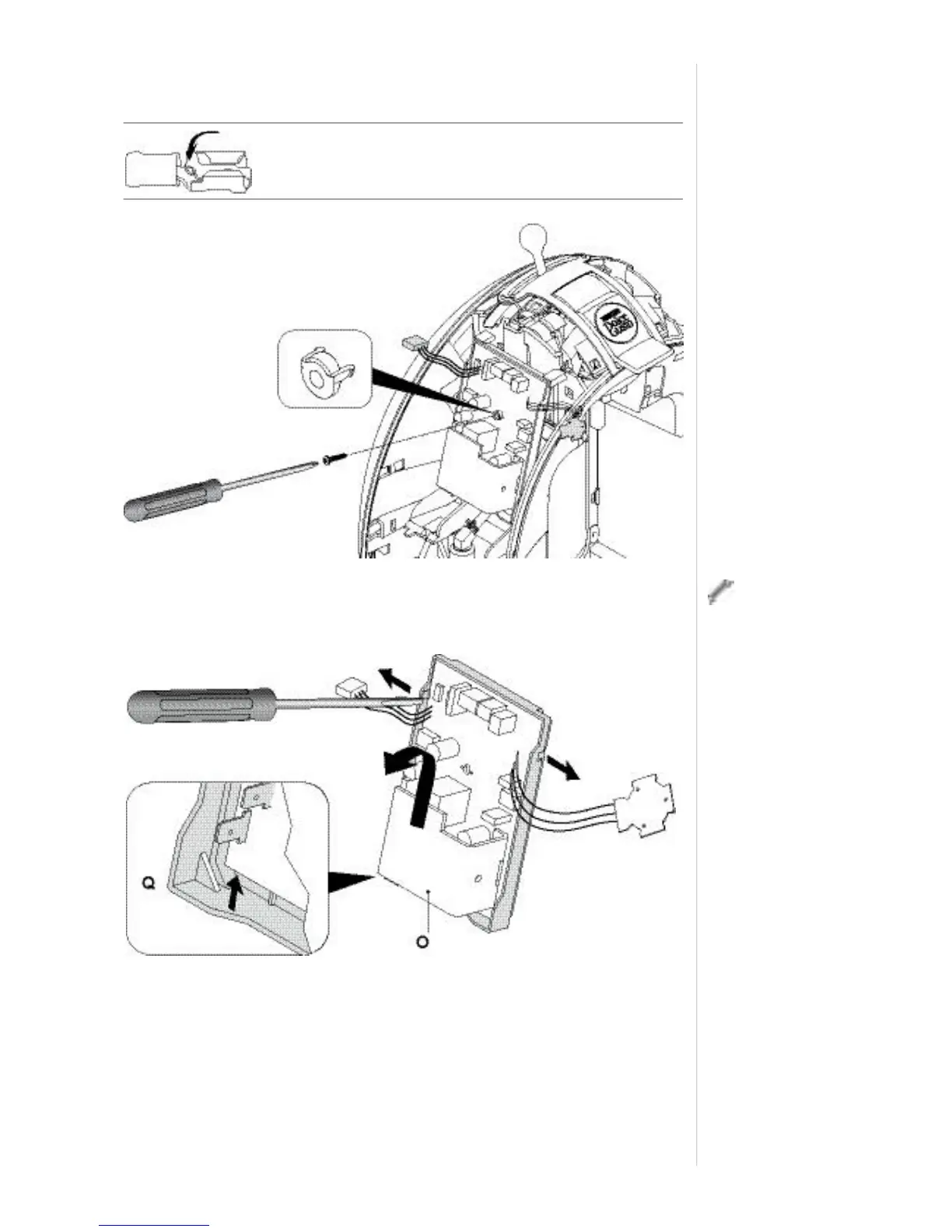

R
E
P
A
I
R
5
.
Loos
en
ce
ntral
fasten
ing
screw
.
6
.
Remo
ve
special
plas
ticw
asher
.
7
.
Remo
ve
PCB
assem
bly
togeth
erwit
hpr
ote
ctiv
ecov
er.
8
.
Use
screw
driver
to
de
tac
hpro
tectiv
eco
ver(Q)
from
mai
nPCB
(O)
.
Th
ef
l
at
r
ec
ep
t
a
c
l
es
o
n
t
h
em
ai
n
PCB
h
a
v
eas
p
ec
i
al
c
o
n
n
ec
t
o
r
l
at
c
h
i
n
g
.
Pr
es
s
d
o
w
n
l
ev
er
at
f
i
r
s
t
,t
h
en
p
u
l
l
r
ec
ep
t
ac
l
e
.
Do no
t lose special
plasti
c wash
er (s
ee
de
tail).
39
41
Table of Contents
Main Components
2
Overview of External Parts
2
Overview of Internal Parts
3
Overview of Extraction Head Parts
4
Overview of Rating Plate
5
Water Circuit
6
Technical Data
7
Operating
9
Machine Status
9
Preparation, First Use
10
Preparing a Beverage
12
Economy Mode (Auto Shutoff Function)
14
Disable Auto Shutoff Function
14
Restore Auto Shutoff Function
14
Empty Fluid System for Shipping
15
Troubleshooting
16
Checklist
16
Repair
21
Tools and Repair Accessories
21
Repair Work Without Disassembling the Machine
21
Removing Injector Plate, Deblocking of Injector
22
Assembly Information
24
General Disassembly
25
Safety Information
25
Preparation for Disassembly
25
Removing Housing Back
26
Removing Housing Front
27
Removing Housing Right
28
Removing Housing Left
30
Removing Spacers Left and Right
33
General Assembly Information
34
Assembling Spacers
34
Assembling Housing Left / Right
34
Assembling Housing Front
35
Assembling Housing Back
36
Replacing Water Tank Connector
37
Replacing Cup Lighting
38
Replacing PCB Assembly
39
Replacing Power Button
42
Replacing Pump
43
Assembling a New NTC Temperature Sensor
47
New NTC Wire Routing
48
Replacing Thermoblock
50
Replacing Power Cord with Thermo Fuses
54
Fastening a Shaky Extraction Head
56
Replacing Extraction Head
57
Wire Routing Beginning with First Production Batch (Obsolete)
57
New Wire Routing
58
Wiring Diagram
63
Wiring Diagram for 100V / 120V / 230V Mains Voltage
63
Function Tests
64
Function Test Equipment
64
Function Test Consumables
64
Coffee Capsules
64
Heating up Time
65
Priming of Fluid System
65
Measuring Temperature of Hot Beverage
66
Measuring Flow Rate of Hot Beverage
67
Movability of Selection Lever
68
Maintenance
69
Descaling
69
Daily Care and Final Cleaning
72
