Krups KP 5000 User Manual

R E P A I R
ReplacingPCBassembly

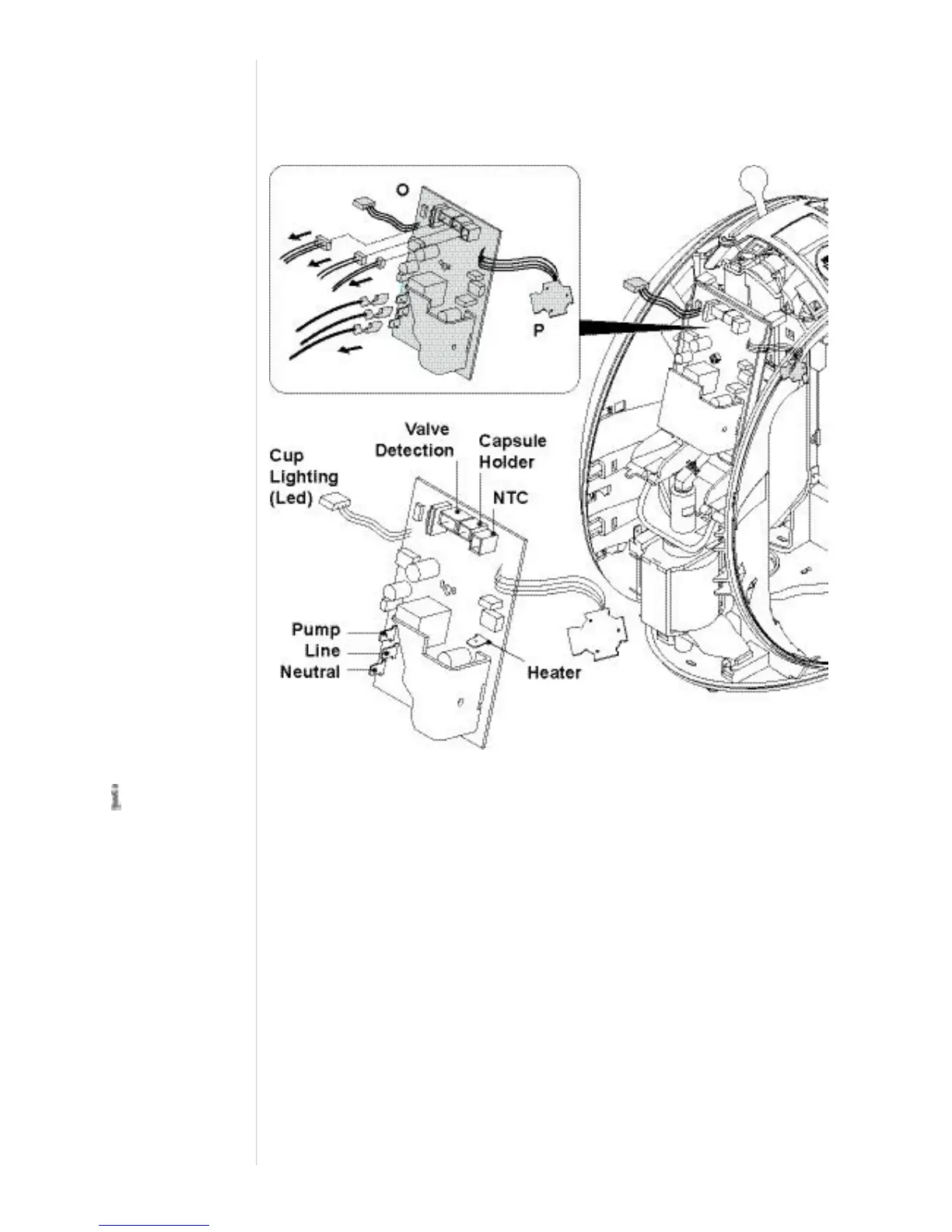

ThePCBassemblyconsistsof
 amainPCB(O)
 andasmallPCB(P)forthepowerbutton.
1.Removehousingleftfirst.
2. Unplug3connectorsfrommainPCB:
ValveDetection(tomicroswitchinextractionhead)
CapsuleHolder(toreedcontactinextractionhead)
NTC(tothermoblock)
3. Unplugpigtailofmainpc bfromcuplightingassembly.
4. Unplug4flatreceptaclesfrommainpcb:
Pump
Line
Neutral
Heater
ThePCBofthe
powerbuttonispart
ofthePCBassem bly
andcannotbereplaced
separatedly.
