Krups KP 5000 - New Wire Routing for Extraction Head

R E P A I R
Newwirerouting

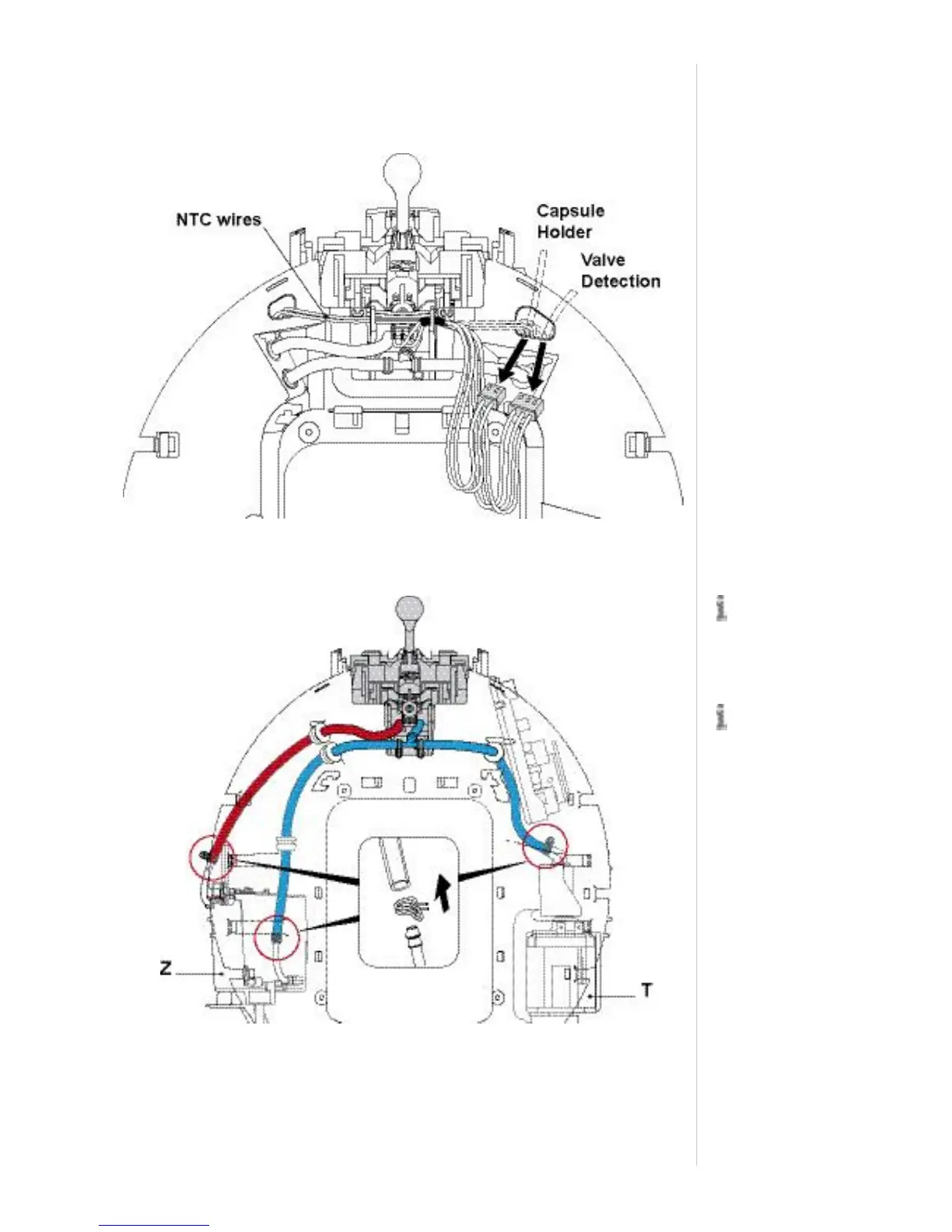

5. Leadco nnectorsthroughopeningincenterpart.
6. RemoveNTCwiresfromcablegu idesonextr actionhead.
7. Removebothhosesfromthermoblock(Z).
8. Removehosefromtopofpump(T).
9. Pullhosesthroughrubberbushingsincenterpart.
Rear view.
The pressure hoses
and clips have to be
discarded together with
the defect extraction
head.
