R E P A I R

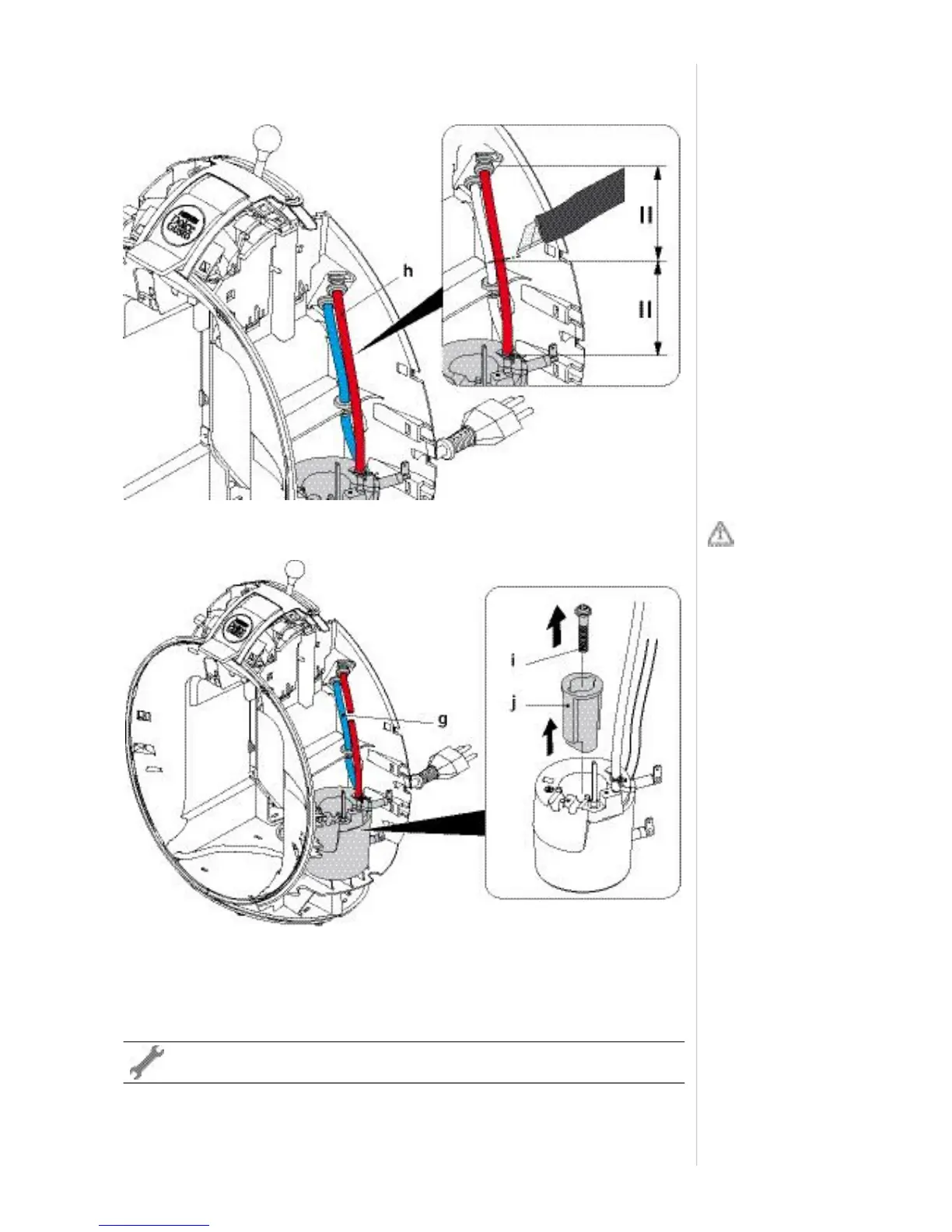

7. Cutthro ughhotwaterpressurehose(h)likepicturedabove.
8. Pullcoldwaterpressurehose(g)throughrubberbushings.
9. Loosen screw (i)andremovethermoblockwithinsert(j).
10. Checkifsupportoncenterpartha smelti ngmarksduetooverheatingofthedefect
thermob lock.
Do not damage
cold water pressure
hose with cutter.
Themachineisirreparableifanewthermoblockcannotbescrewedon
centerpartproperlyduetomeltingmarks.
