Krups KP 5006 - Replacing Extraction Head

R E P A I R
Replacingextractionhead
1.Removehousingrightandleftwithspacers.

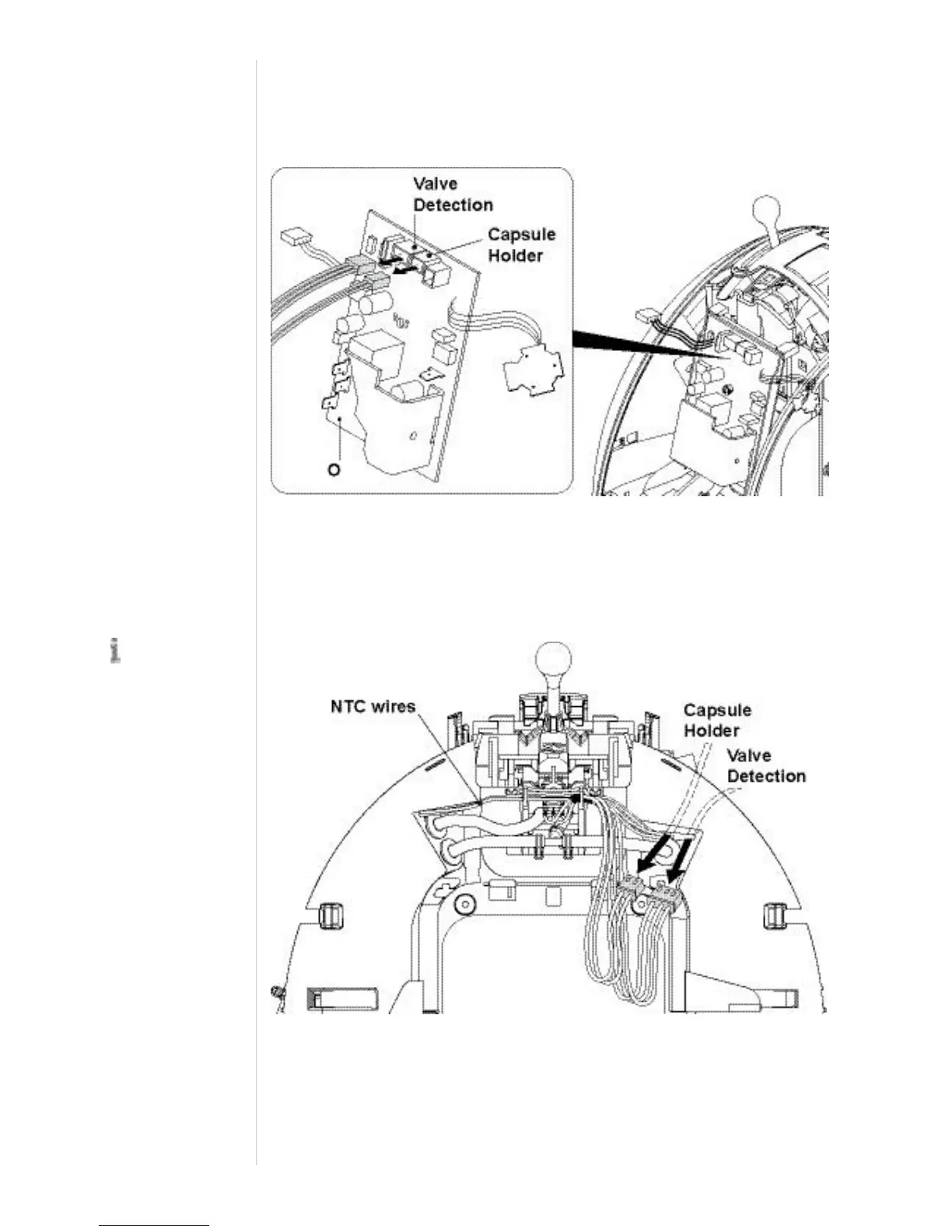

2. Unplug2connectorsfrommainPCB(O):
ValveDetection(tomicroswitchinextractionhead)
CapsuleHolder(toreedcontactinextractionhead).
Wireroutingbeginningwithfirstproductionbatch(obsolete)
3. Leadconnectorsthr oughopeningincenterpart.
4. RemoveNTCwiresfromcableguidesonextractionhead.
Depending on the
machine version,
there are two different
wire routings at the back
of the extraction head.
