SADDLE INSTALLATION
AFTER SETTING SEATPOST ORIENTATION IN YOUR FRAME
Once you have oriented your seatpost within your seat tube
ensuring the saddle is aligned to point forward, you will need to

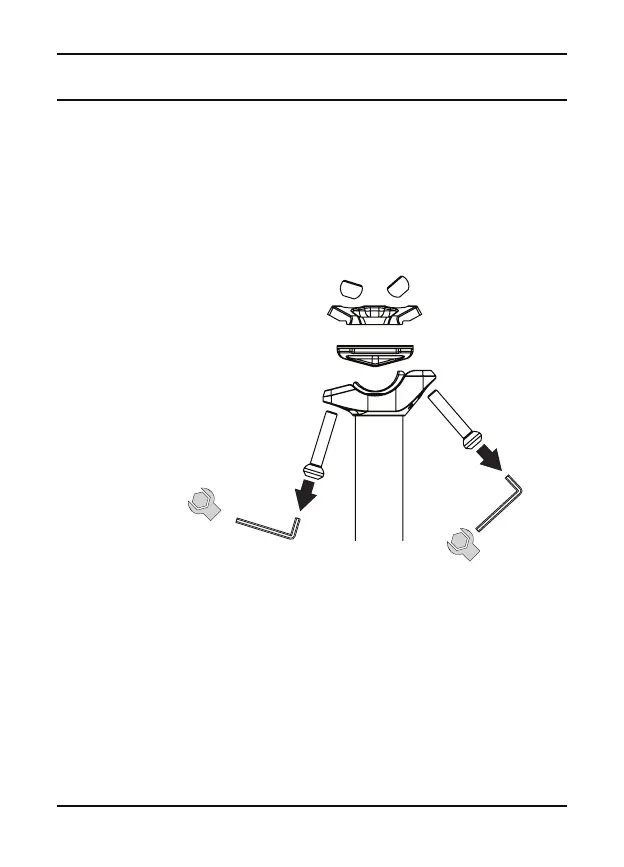

install your saddle. Remove the two saddle head clamp bolts,
spherical nuts, upper and lower floating clamp using a 4mm Hex
wrench.
Note: The lower
clamp body may
slide down the
stanchion tube at
this point.
4mm
4mm
Head Clamp Bolts
Head Clamp Bolts
Lower Floating Clamp
Upper Floating Clamp
Spherical NutsSpherical Nuts
To install the saddle, replace the two saddle head clamp bolts,
spherical nuts, upper and lower floating clamp in the order in
which they were removed.
Before tightening, place the rails of your saddle between the
upper and lower floating clamps so that the rails seat in the
channel provided by the lower floating clamp.
Using a 4mm Hex wrench, tighten the two head clamp bolts until
the desired saddle angle is achived. Then tighten both bolts
evenly to a maximum torque of 10 N-m (8 N-m LEV-Ci.)
