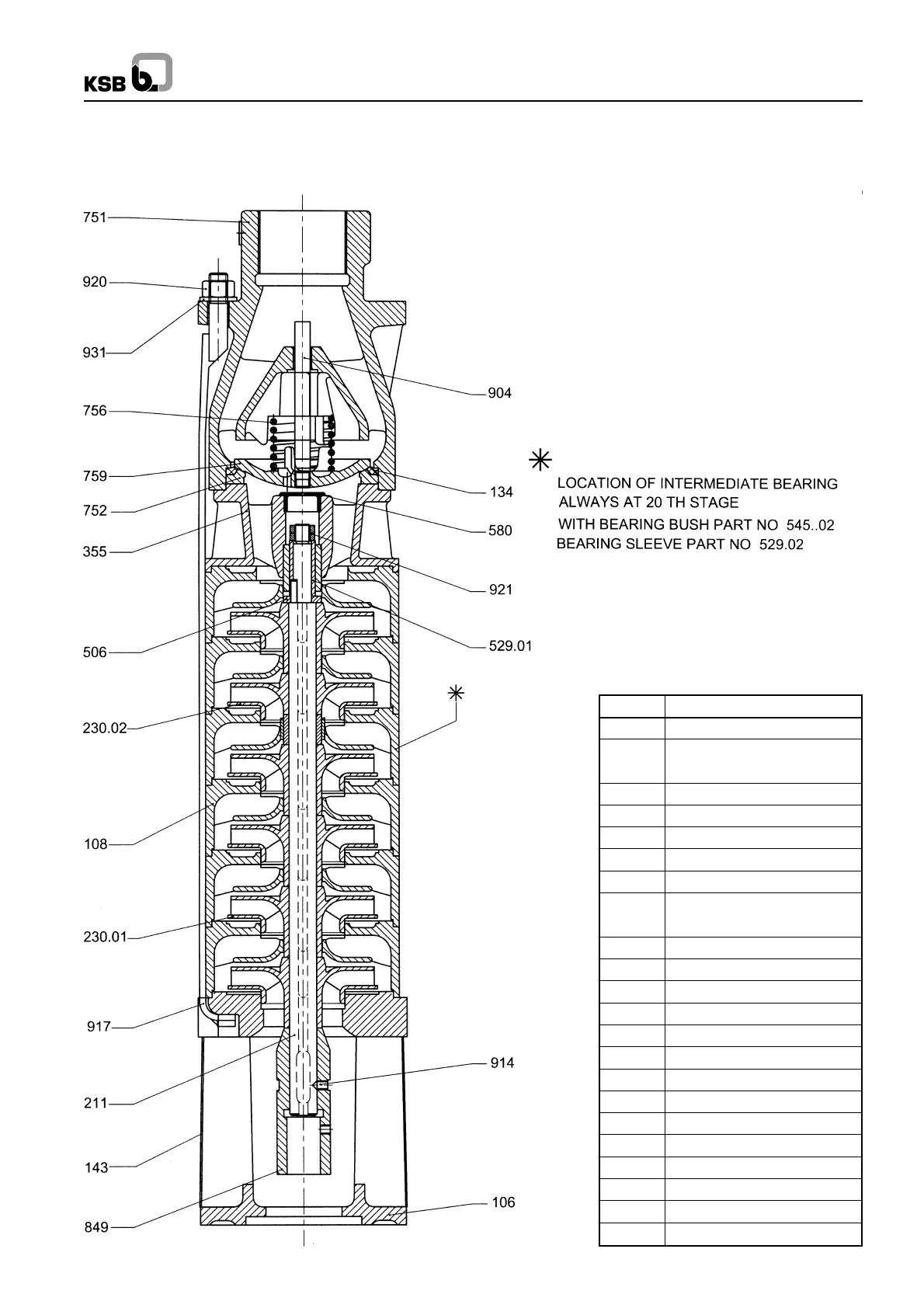

KSB BPHA 384 - Pump Construction Schematics; Radial Flow Pump (150 mm)

Submersible Motor Pumps (150 mm and above)
11
Part No. Description
106 Suction casing
108
Stage casing with
integral diffuser
134 Profile disc
143 Suction strainer
211 Shaft
230.01 Impeller
230.02 Impeller at 21st stage
355
Discharge brg. body with
brg. bush (545.01)
506 Retainig ring
529.01 Bearing sleeve (Last)
580 Cap
751 Valve body
752 Valve seat
756 Valve spring
759 Valve dish
849 Sleeve coupling
904 Threaded pin
914 Screw
917 Hook bolt
920 Nut
921 Shaft nut
931 Washer
13 Pump Construction (Schematic)
13.1 Radial flow pump (150mm) - UQD 112, 152, 182 & 212
