KSB Multiboost - 8 Sectional Drawing (Multiboost)

MULTIBOOST
Part No. 106 108 145 160 230 300.01 300.02 361
Part No. 433 525.01 525.02 554 816 818 81-7 829
Part No. 833 903 905.01 905.02 912 920 922
Part Name Suction casing Stage casing Adapter Cover Impeller Ball bearing (NDE) Ball bearing (DE) End cover
Part Name Mechanical seal Stage sleeve Stage sleeve top Spacer sleeve Stator body Rotor Terminal board connector Cable gromet
Part Name Terminal box Threaded cap Tie rod pump Tie rod motor Drain plug Hex. nut Impeller lock nut

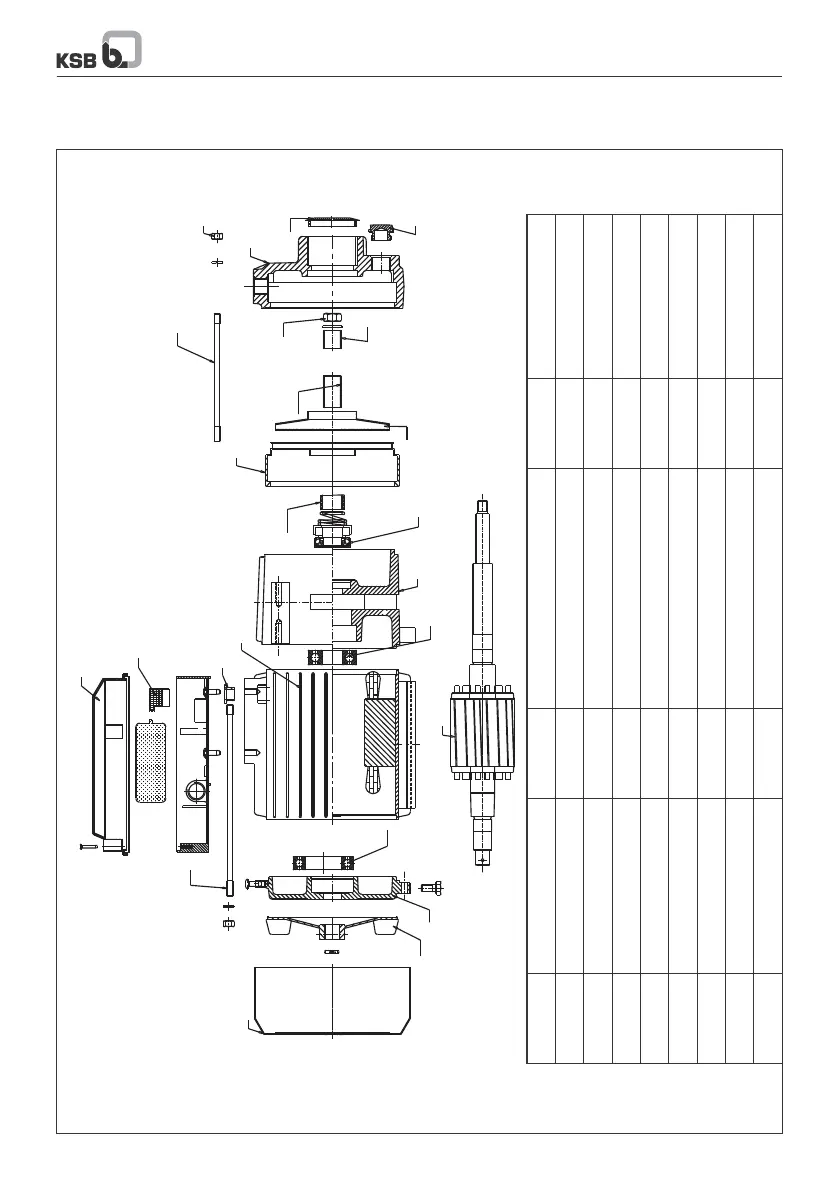

8. Sectional Drawing (MULTIBOOST)
12
920
903
912
106
922
525.02
525-01
905.01
108
230
554
433
145
300.02
816
829
81-7
833
905-02
818
300-01
361
831
160
