3

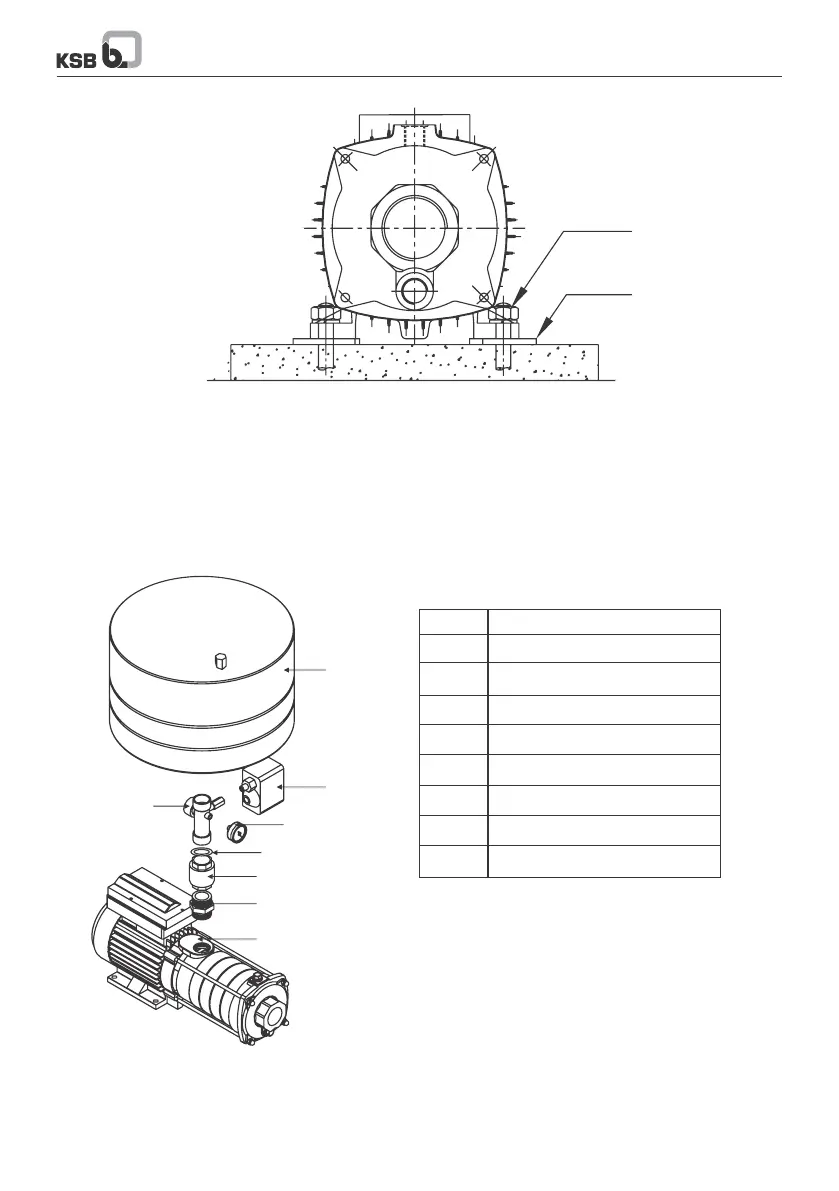

Fig. 1
Foundation
Bolt & Nut
Rubber Pad
2.2 Assembly Parts
• The Multi-boost system is available with 24 lit. Vertical tank. Along with the pump
and accumulator tank - a non-return valve, 5 way connector, pressure gauge,
pressure switch, and necessary connectors / fasteners shall be part of the supply.
Refer exploded view figure 2.
8
5
6
7
2
1
4
3
Fig 2
1. Pump
2. Hex. Nipple
3. O-ring
4. 5 Way Connector
5. Danfoss Pressure switch
6. Pressure Gauge
7. NRV
8. Tank
Sr. No. Part Name
MULTIBOOST
