2.7 Starting Mode
• The supply to the motor must be given through the pressure switch.
• The connection must be done as given in figure 4.
• The switch must be connected in series with the motor in live / phase terminal.
• Do not change the settings of pressure switch. In case any doubt contact nearest
authorized service center

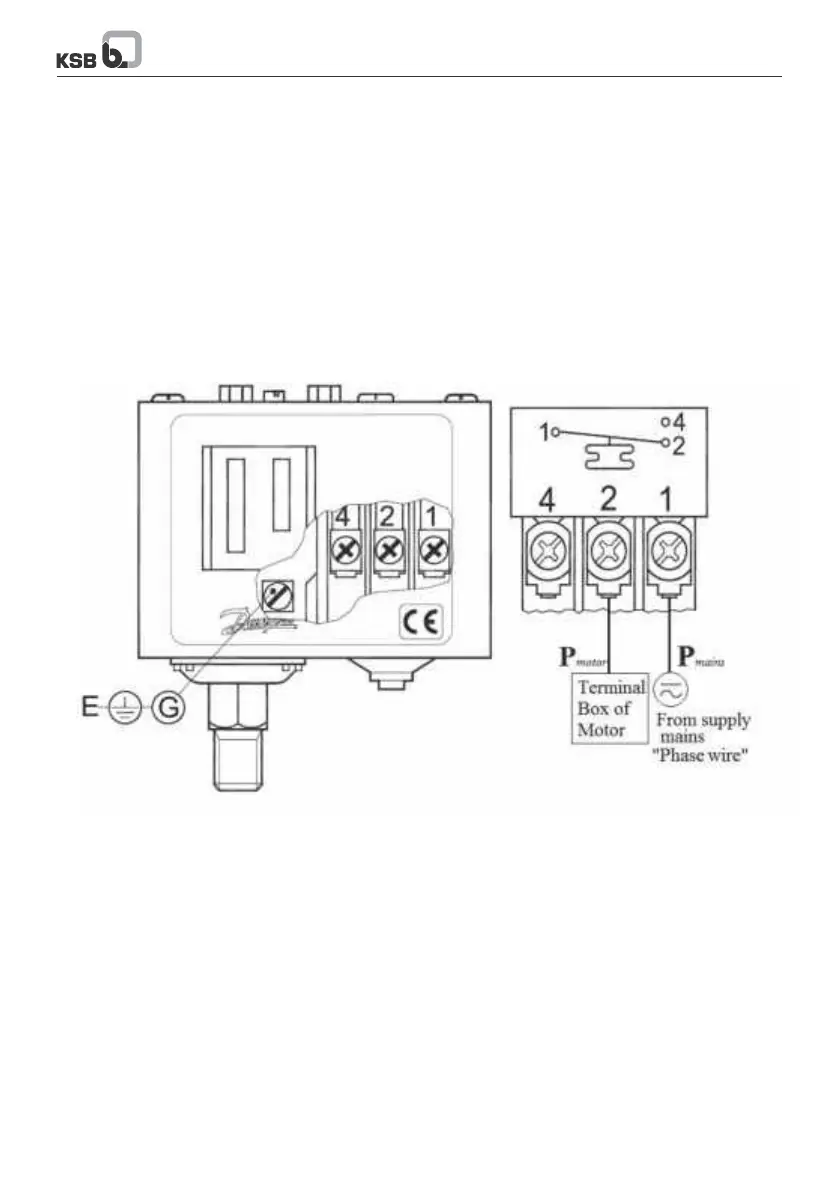

Fig. 4
