KTC COMPACK 2 ECO - Controller Symbol and LED Meanings

CONFIDENTIAL - This document is the property of K.T.C. S.r.l. and cannot be reproduced or issued to third parties without written
authorization. K.T.C. S.r.l. shall safeguard its rights to the full extent of the law.
OPERATION AND INSTALLATION MANUAL
COD. 091114 – COMPACK 2 ECO / SPECIAL - REV. 08 - DATE 10/2020 page 40 of 63

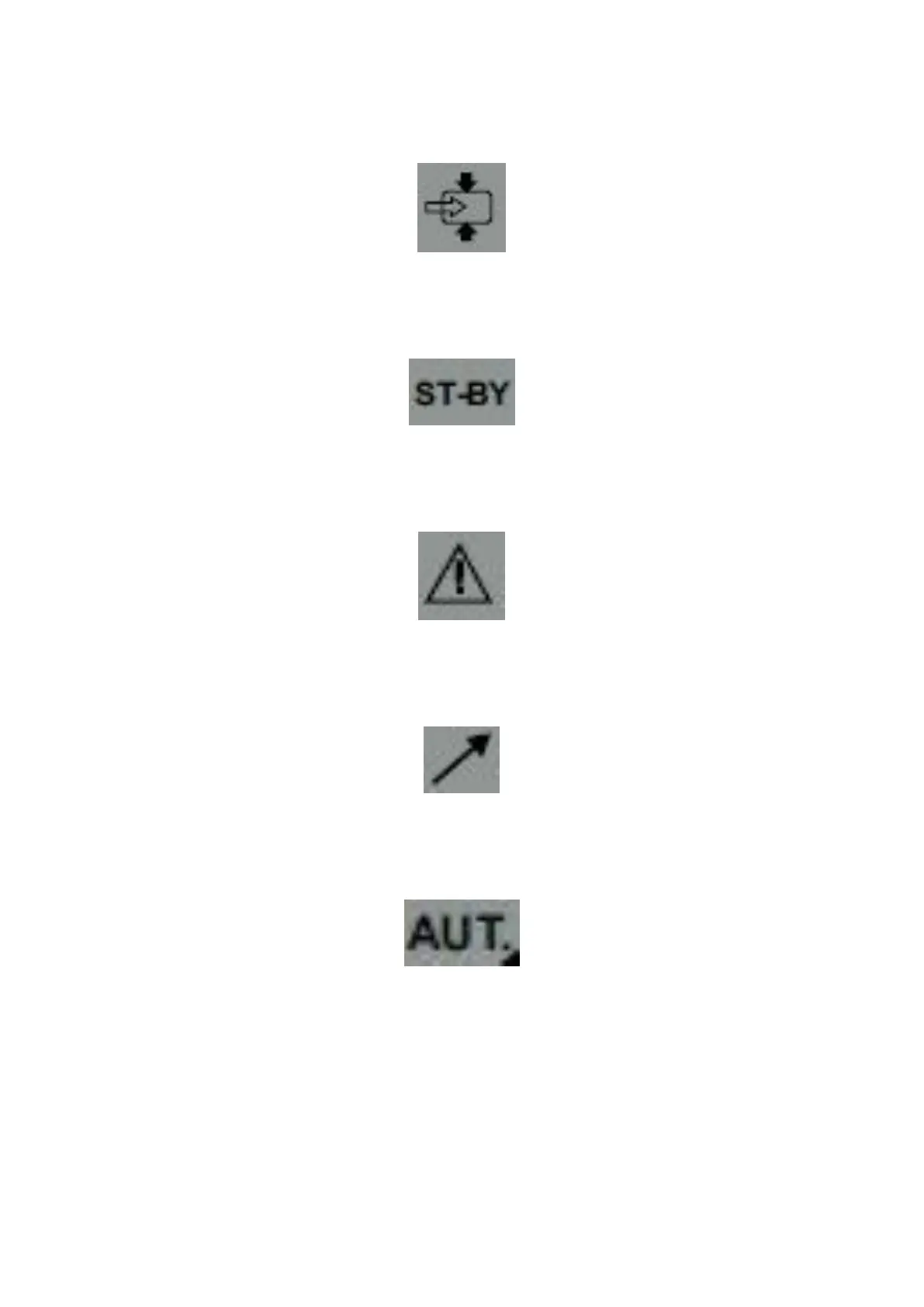

9.1.2 SYMBOL LAYOUT
LOAD SYMBOL
when LED is on, compressor is in load phase
STAND BY SYMBOL
when led is on, compressor is in stand by phase
ALARM SYMBOL
when led is on, compressor is in alarm state
REMOTE CONTROL SYMBOL
when led is on, compressor is in remote control state
AUTOMATIC RESTART SYMBOL
when led is on, compressor is in automatic restart state
