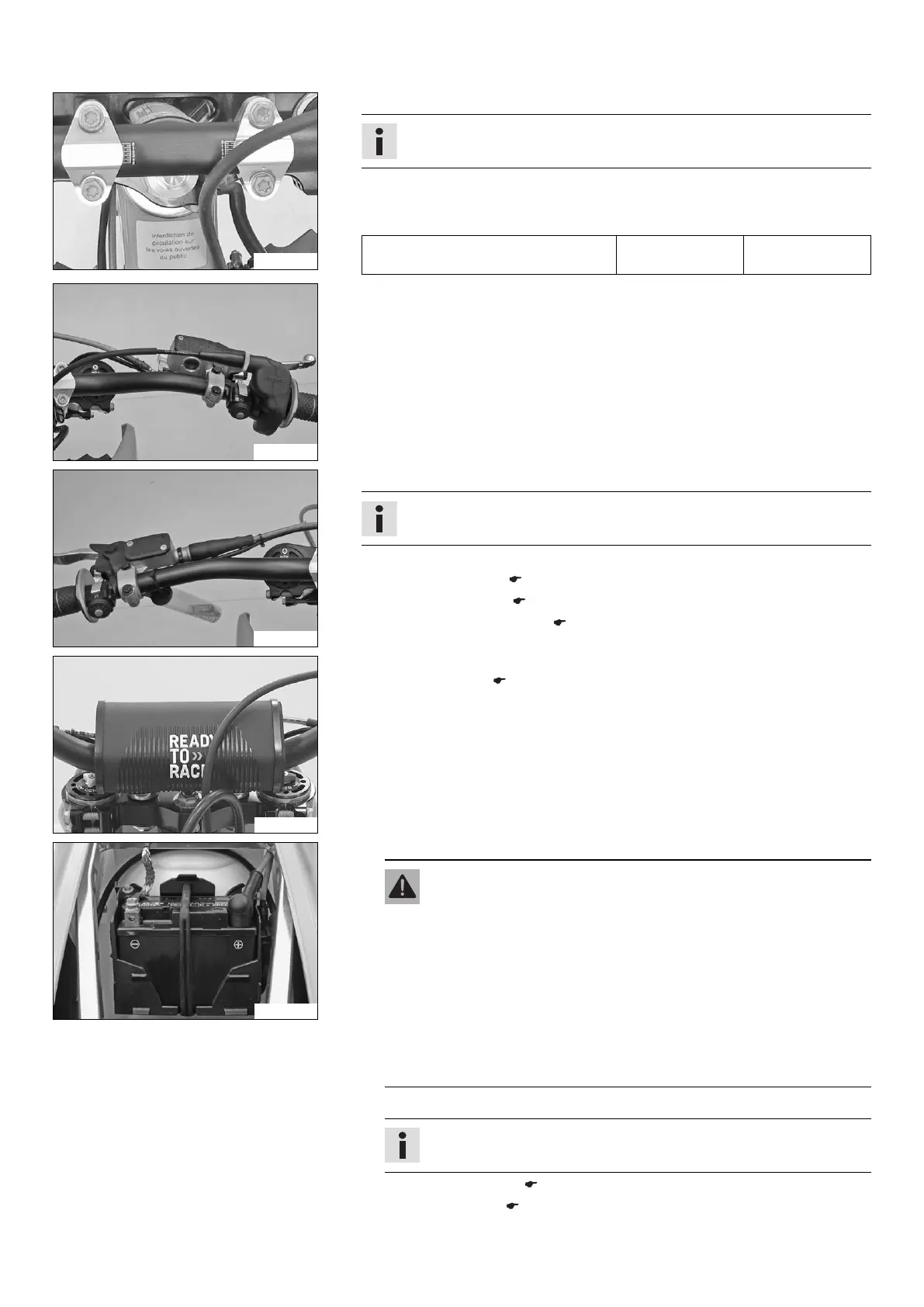

2 SETUP 5
B02178-01
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–
Position the handlebar clamps. Mount screws
. Screw the handlebar clamps so
that both parts touch at the front and tighten all of the screws.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
B02179-01
– Position the controls on the right half of the handlebar.
B02180-01
– Position the controls on the left half of the handlebar.
Info
The routing of the cables can be seen in the figure.
– Mount the fuel tank breather correctly.
– Install the front wheel. ( p. 8)
– Install the front fender. ( p. 9)
– Install the start number plate. ( p. 9)
S00977-01
– Mount the handlebar cushion.
– Install the footrests. ( p. 8)
S00978-10
(All XC models)
Warning
Risk of injury Battery acid and battery gases cause serious chemical
burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in
well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If
battery acid gets in the eyes, rinse with water for at least 15 minutes
and contact a physician.
– Fill the battery.
Info
Read the notes in the battery package.
– Recharge the battery. ( p. 11)
– Install the battery. ( p. 12)
