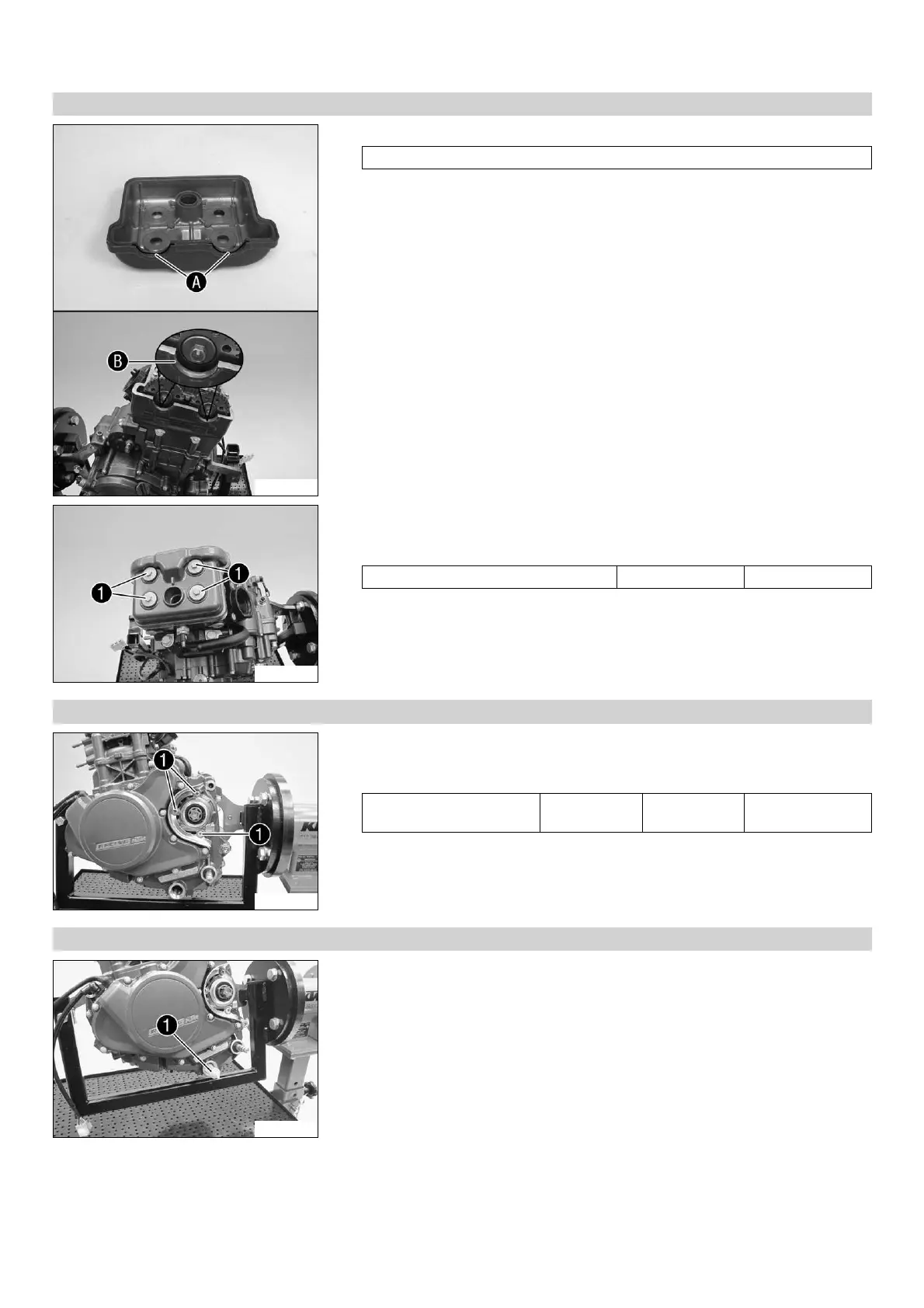

16 ENGINE 174

16.5.31 Installing the valve cover (125 Duke)

304803-10

– Degrease the sealing areas and thinly coat with sealant in areas A and B.

Loctite

5910

– Position the gasket in the valve cover.

304729-10

– Position the valve cover with the gasket.

– Mount and tighten screws 1 with the gaskets.

Guideline

Screw, valve cover M6 12 Nm (8.9 lbf ft)

16.5.32 Installing the chain securing guide (125 Duke)

304422-10

– Position the chain securing guide.

– Mount and tighten screws 1.

Guideline

Screw, chain securing

guide

M6 11 Nm

(8.1 lbf ft)

Loctite

243™

16.5.33 Installing the oil screen (125 Duke)

304421-11

– Mount oil screen 1 with the O-ring.
