KTM 2005 User Manual

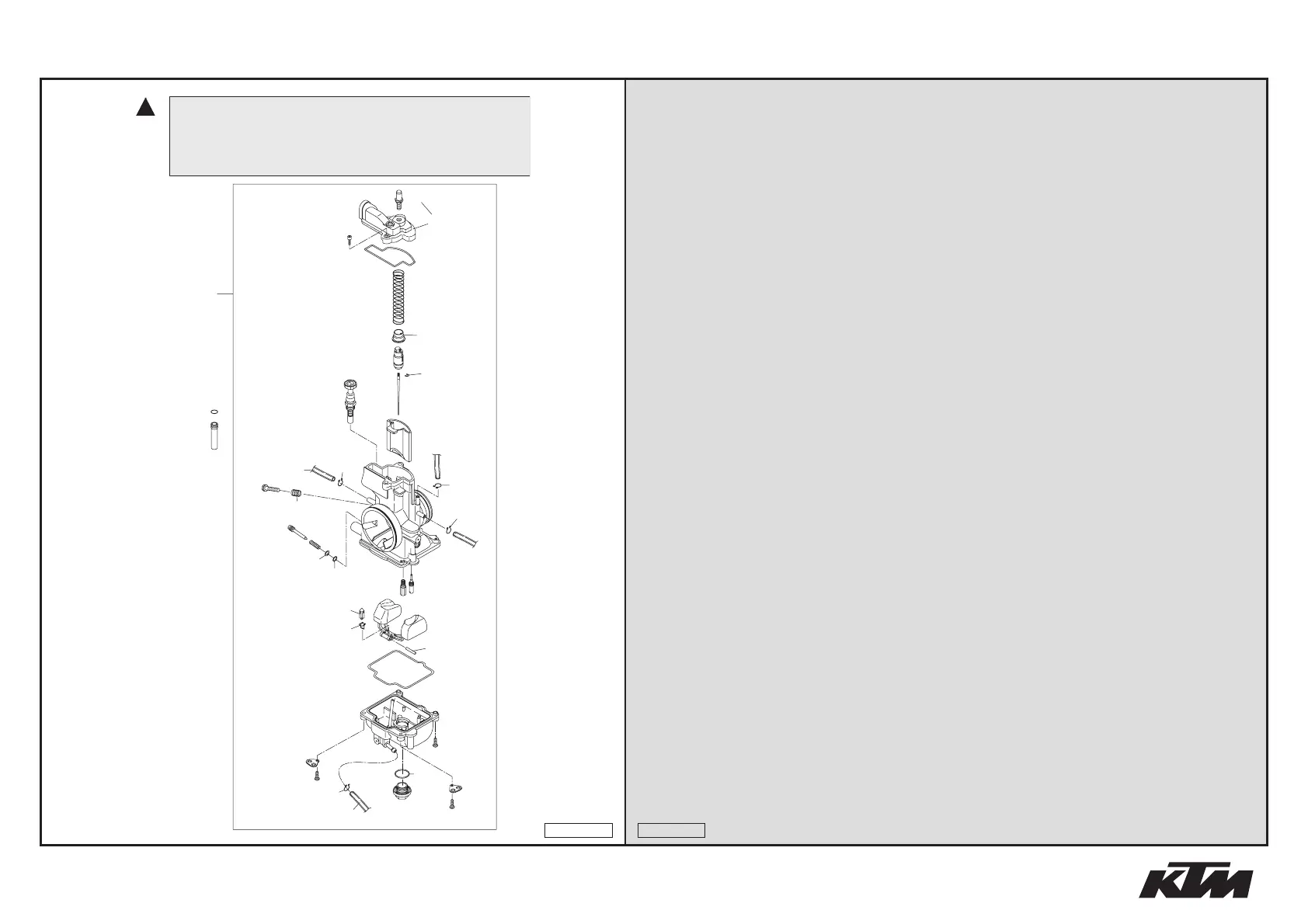

VERGASER KEIHIN PWK » CARBURETOR KEIHIN PWK
250-300 / 2005
* NEUTEIL / NEW PART X NACH BEDARF / AS REQUIRED
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
25 548.31.025.000 SPEZIAL-ISK-SCHRAUBE M 4X12 SPECIAL-AH-SCREW M 4X12 2
26 548.31.029.000 GASSEILHALTER M6X0,75 THROTTLE CALBE HOLDER M6X0,75 1
27 548.31.127.000 VERGASERDECKEL PWK36-S AG CARBURETOR COVER PWK36-S AG 1
EXC+MXC EXC+MXC
27 548.31.027.000 VERGASERDECKEL PWK38-S AG CARBURETOR COVER PWK38-S AG 1
SX SX
28 548.31.028.000 VERGASERDECKELDICHTUNG GASKET FOR CARBURETOR COVER 1
29 545.31.629.000 KLEMMFEDER CLIP FOR JET NEEDLE 1
30 548.31.030.000 SCHIEBERFEDER SLIDING SPRING 1
31 546.31.231.000 FEDERTASSE SPRING CAP 1
32 546.31.232.000 NIPPEL NIPPLE 1
34* 545.31.636.004 DÜSENNADEL NOZ D KEIHIN JET NEEDLE NOZ D KEIHIN X
34 545.31.636.005 DÜSENNADEL NOZ E KEIHIN JET NEEDLE NOZ E KEIHIN X
34 545.31.636.006 DÜSENNADEL N0Z F KEIHIN JET NEEDLE NOZ F KEIHIN 1
SX SX
34 545.31.636.007 DÜSENNADEL N0Z G KEIHIN JET NEEDLE NOZ G KEIHIN X
34 545.31.636.008 DÜSENNADEL N0Z H KEIHIN JET NEEDLE NOZ H KEIHIN X
34 547.31.034.600 DÜSENNADEL KEIHIN N3CJ 04 JET NEEDLE KEIHIN N3CJ 04 1
EXC (EU+AUS) EXC (EU+AUS)
34 547.31.134.000 DÜSENNADEL KEIHIN N3EG 04 JET NEEDLE KEIHIN N3EG 04 X
34 547.31.034.700 DÜSENNADEL KEIHIN N3EH JET NEEDLE KEIHIN N3EH 1
MXC+EXC (USA) MXC+EXC (USA)
34 547.31.034.900 DÜSENNADEL KEIHIN N3EW JET NEEDLE KEIHIN N3EW X
35* 548.31.035.065 GASSCHIEBER 6.5 KEIHIN THROTTLE VALVE 6.5 KEIHIN 1
SX SX
35* 546.31.035.000 GASSCHIEBER 7 FÜR 38 PJ '2000 THROTTLE VALVE 7 FOR 38 PJ '00 1
EXC+MXC EXC+MXC
45 546.31.245.000 STARTKOLBEN KPL. STARTER PISTON CPL. 1
46 545.31.696.000 KLAMMER 6 MM CLAMP 6 MM 5
47 310.07.007.101 PVC-SCHLAUCH 4X6MM PVC-HOSE 4X6MM 2,00
48 520.31.137.001 PVC-SCHLAUCH 3X5MM PVC-HOSE 3X5MM 0,33
49 573.31.014.000 VERSCHLUSSCHRAUBE HOLDING BOLT 1
50 0770 180230 O-RING 18,00X2,30 NBR 70 O-RING 18,00X2,30 NBR 70 1
52 503.31.029.038 SCHIEBERANSCHLAG L=38MM SLIDE STOP L=38MM X
53 0770 060018 O-RING 6,00X1,78 O-RING 6,00X1,78 X
71* 548.31.071.000 SCHEIBE EINSTELLSCHRAUBE WASHER ADJUSTING SCREW 1
72* 548.31.072.000 O-RING EINSTELLSCHRAUBE O-RING ADJUSTING SCREW 1
05-548.31.0
11
1
7
9
bk
bl
bm
bm
bo
bo
bo
bp
br
bs
bt
ck
cl
cn
cp
cr
cs
ct
dk
dl
dm
do
dp
ep
eq
eq
eq
eq
er
er
er
et
fk
8
es
cq
fm
fn
hl
hm
ACHTUNG !!!
Vor dem Einbau des Vergasers, Bedüsung kontrollieren.
CAUTION !!!
Before mounting the carburetor, check the jetting.
05-548.31.0
