CONTROLS 38

5.16Combination instrument - display

400892-01

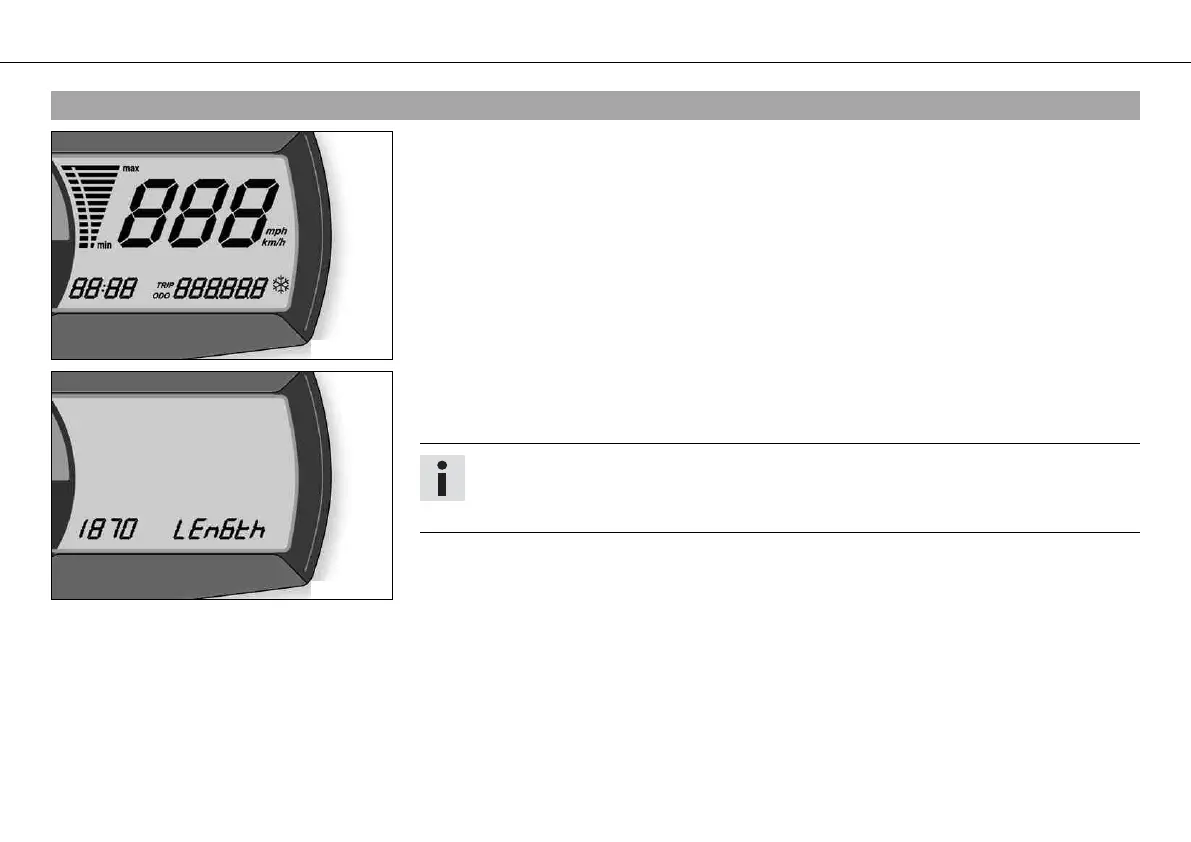

When you switch on the ignition, all display segments light up for one second as a function

test.

400881-01

LEnGth

Following the display function test, the LEnGth wheel circumference is shown for one sec-

ond.

Info

1870 mm corresponds to the circumference of the 17" front wheel with a series pro-

duction tire.

The display then changes to the last selected mode.
