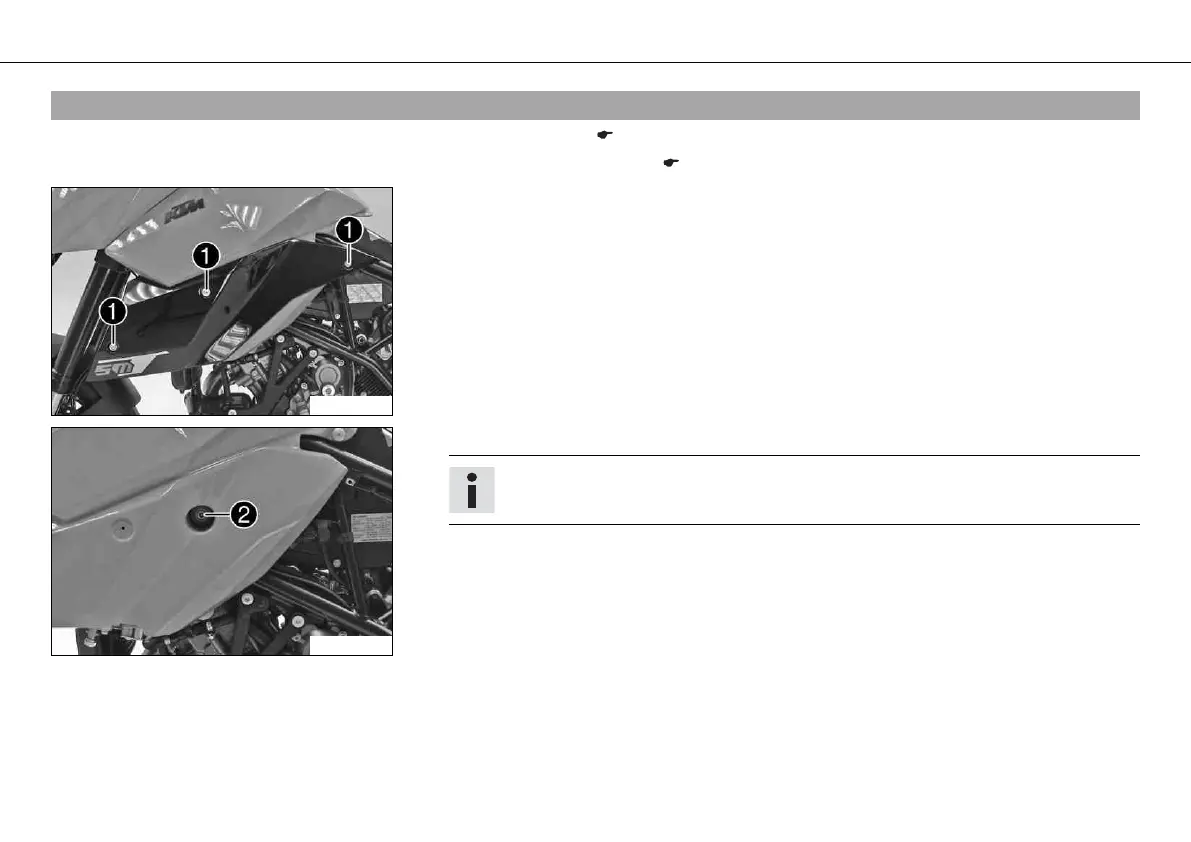

SERVICE WORK ON THE CHASSIS 85

10.9Reinstalling the fuel tank

– Remove the seat. ( p. 83)

– Remove the mask spoiler. ( p. 87)

B00669-10

– Remove screws  and the spoiler on both sides.

B00670-11

– Remove screw  on both sides.

Info

The fuel hoses do not need to be disconnected.

– Carefully push the fuel tank back.
