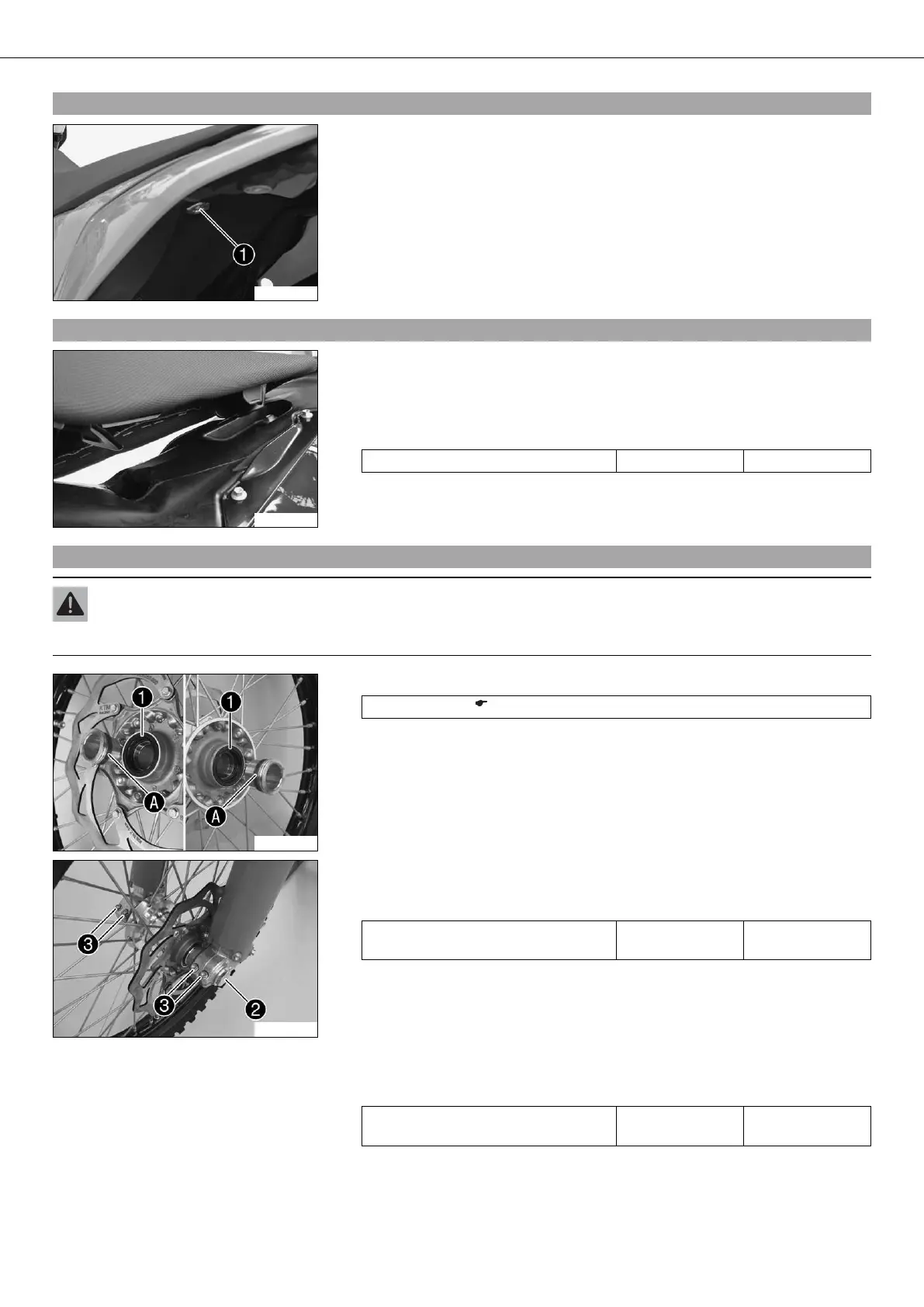

WORK 5
3.1Removing the seat
500080-10
Remove screw . Lift up the seat at the rear, pull it back and then remove from
above.
3.2Mounting the seat
500068-01
Hook in the front of the seat at the collar bushing of the fuel tank, lower at the rear
and simultaneously push forward.
Make sure that the seat is correctly locked in.
Mount and tighten the screw of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.3Installing the front wheel
Warning
Danger of accidentsReduced braking efficiency due to oil or grease on the brake discs.
Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
500086-11
Clean and grease shaft seal rings and bearing surface of the spacers.
Long-life grease ( p. 11)
Insert the spacers.
500084-11
Lift the front wheel into the fork, position it, and insert the wheel spindle.
Mount and tighten screw .
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
Operate the hand brake lever several times until the brake linings are lying correctly
on the brake disc.
Remove the motorcycle from the work stand.
Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
Tighten screws .
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
